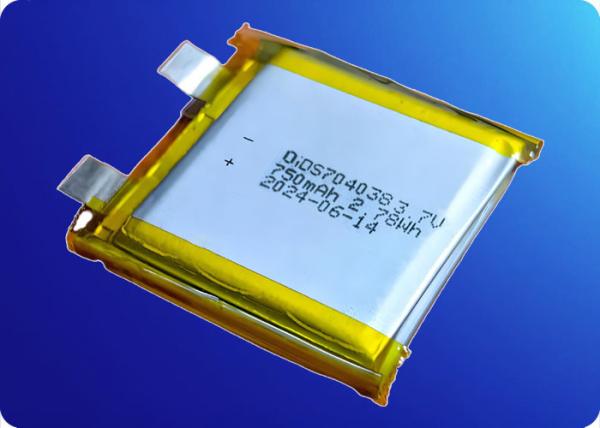

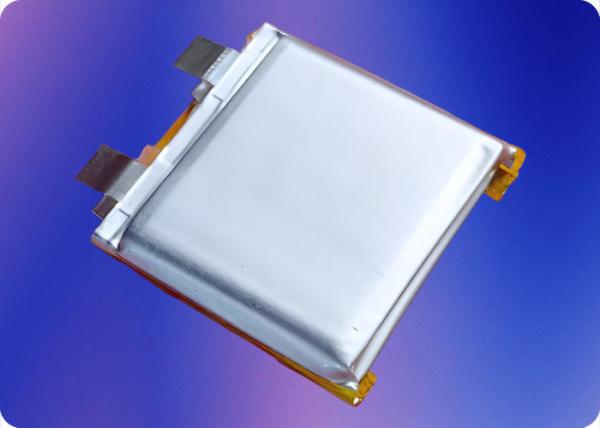

OiD704038-730 3.7V 750mAh 0.5C Discharge Current 200 Cycles Explosion Proof Lithium Battery
Product Name:
OiD704038-730 Explosion Proof Lithium Battery
Advantages:
Specifications:
| Parameter | Details |
| Model Number | OiD704038-730 |
| Nominal Voltage | 3.7V |
| Capacity | Minimum: 730mAh, Typical: 750mAh |
| Charging Cut-off Voltage | 4.2V |
| Discharge Cut-off Voltage | 3.0V |
| Max. Constant Charge Current | 365mA (0.5C) |
| Max. Continuous Discharge Current | 365mA (0.5C) |
| Weight | Approx. 20g |
| Storage Voltage | 3.70-4.00V |
| Environmental Compliance | RoHS compliant |
Cycle Life:
| Condition | Details |
| Cycle Life (23℃) | 200 cycles at 0.2C charge/discharge, remaining capacity ≥70% of nominal capacity |
Discharge Curve:

Operating Temperature Range:
| Condition | Temperature Range |
| Charging Temperature | 5℃ to 45℃ (0.2C CCCV to 4.2V at 5-15℃, 0.5C CCCV to 4.2V at 15-45℃) |
| Discharging Temperature | -10℃ to 45℃ (0.2C DC to 3.0V at -10-15℃, 0.5C DC to 3.0V at 15-45℃) |
| Storage Temperature | -10℃ to 45℃ for 1 month, -10℃ to 35℃ for 6 months |
Certifications:
Key Features:
Applications:

Usage Warnings & Precautions:
Storage Guidelines:
Warranty & Disclaimer:
