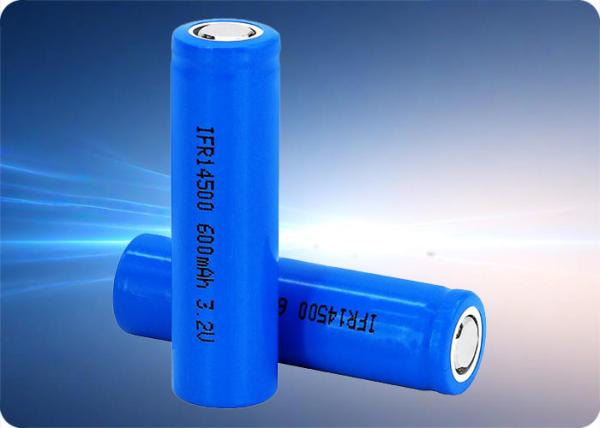

14500 LiFePo4 Battery 3.2V 600mAh 1.8A Discharge 2000+ Cycles
14500 LiFePo4 Battery 3.2V 600mAh 1.8A Discharge 2000+ Cycles
14500 LiFePo4 Battery 3.2V 600mAh 1.8A Discharge 2000+ Cycles
14500 LiFePo4 Battery 3.2V 600mAh 1.8A Discharge 2000+ Cycles
14500 LiFePo4 Battery 3.2V 600mAh 1.8A Discharge 2000+ Cycles
14500 LiFePo4 Battery 3.2V 600mAh 1.8A Discharge 2000+ Cycles
14500 LiFePo4 Battery 3.2V 600mAh 1.8A Discharge 2000+ Cycles
14500 LiFePo4 Battery 3.2V 600mAh 1.8A Discharge 2000+ Cycles
Specifications
Brand Name :
OiD
Model Number :
IFR14500N6A1.8
Certification :
Compliant with UN38.3, CB, UL, PSE, BIS、KC、BSMI, IEC 62619, REACH standard
Place of Origin :
China
MOQ :
100pcs
Price :
$0.5 ~ $100.0 / pcs
Delivery Time :
3 ~ 7 days for storage
Payment Terms :
TT,L/C,Western Union
Name :
LiFePo4 Battery
ODM :
Free custom design for packs
Battery Type :
600mAh Rechargeable
Superior Safety & Stability :
Safe LiFePo4 Chemistry
Exceptional Lifespan :
2000+ cycles
High-Temperature Resistance :
-20°C to 60°C
Eco-Friendly & Non-Toxic :
Cobalt-free chemistry, non-hazardous materials
Cost-Effective Long-Term Value :
Lower total ownership cost
Description
14500 LiFePo4 Battery 3.2V 600mAh 1.8A Discharge 2000+ Cycles

IFR14500N6A1.8 LiFePo4 Battery 3.2V 600mAh 1.8A Discharge 2000+ Cycles

Product Name

IFR14500N6A1.8 LiFePo4 Battery Cell

Advantages

  • Compact High-Current Output: Supports up to 1.8A (3C) continuous discharge for lightweight applications.
  • Extended Cycle Life: 2000+ cycles with ≥80% capacity retention.
  • Ultra-Lightweight: Minimal weight (16.0g) ideal for portable devices.
  • Safe LiFePo4 Chemistry: Stable performance with low thermal runaway risk.
  • Balanced Charging: 0.5C (300mA) rated charge capability.

Specifications

Parameter

Value

Model

IFR14500N6A1.8

Nominal Voltage

3.2V

Nominal Capacity

600mAh

Energy

1.9Wh

Internal Resistance

≤60mΩ

Max Continuous Charge Current

300mA (0.5C)

Max Continuous Discharge Current

1800mA (3C)

Charging Voltage

3.65V

Discharge Cut-off Voltage

2.0V

Weight

16.0g

Dimensions (Diameter × Height)

14.25mm × 50mm

Cycle Life

Cycles

Capacity Retention

Test Conditions

1000 cycles

≥90%

0.5C Charge/Discharge, 25°C

2000 cycles

≥80%

0.5C Charge/Discharge, 25°C

Operating Temperature Range

Mode

Temperature Range

Max Current (Charge/Discharge)

Charging

0°C to 45°C

300mA (0.5C)

Discharging

-20°C to 60°C

1800mA (3C)

Discharge Curve

[Graph placeholder: Voltage vs. Capacity at 0.5C, 1C, and 3C discharge rates.]

Certifications

  • Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.

Key Features

  • Miniature Design: Compact 14500 size (14.25mm × 50mm) for space-sensitive applications.
  • Low Self-Discharge: <3% monthly loss for reliable storage.
  • Universal Compatibility: Fits standard 14500 battery holders.

Applications

  1. Miniature Electronics: LED penlights, laser pointers, and digital stylus pens.
  2. Medical Devices: Wearable health trackers and compact diagnostic tools.
  3. IoT Sensors: Wireless environmental sensors and smart home devices.
  4. Toys & Hobbies: Mini drones, RC cars, and model train batteries.
  5. Emergency Backup: Keychain power banks and portable USB chargers.

14500 LiFePo4 Battery 3.2V 600mAh 1.8A Discharge 2000+ Cycles

Usage Warnings & Precautions

  • ⚠️ Do NOT charge above 45°C or discharge below -20°C to prevent irreversible damage.
  • Use only LiFePo4-compatible chargers with 3.65V voltage limits.
  • Avoid terminal short circuits, physical impacts, or exposure to liquids.
  • Ensure proper polarity alignment during installation.

Storage Guidelines

  • Optimal Storage SOC: 30%-50% (2.8V-3.3V per cell).
  • Storage Temperature: -10°C to 35°C (dry, non-condensing environment).
  • Recharge Interval: Every 6 months for long-term stored batteries.

Warranty & Disclaimer

  • Warranty: 24-month limited warranty against manufacturing defects.
  • Disclaimer: Warranty void if misused (e.g., overcurrent, extreme temperatures). Dispose per local regulations.
