21700 Battery 4000mAh 3C Discharge 500 Cycles 3.6V
21700 Battery 4000mAh 3C Discharge 500 Cycles 3.6V
21700 Battery 4000mAh 3C Discharge 500 Cycles 3.6V
21700 Battery 4000mAh 3C Discharge 500 Cycles 3.6V
Specifications
Brand Name :
OiD
Model Number :
INR21700E40JH
Certification :
Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.
Place of Origin :
China
MOQ :
100pcs
Price :
$0.5 ~ $100.0 / pcs
Delivery Time :
3 ~ 7 days for storage
Payment Terms :
TT,L/C,Western Union
Name :
21700 Battery
ODM :
Free custom design for packs
Battery Type :
4000mAh Rechargeable
Cathode :
NCM or NMC
Higher Energy Density :
LongerrRuntime for 20-30% more energy than 18650 cells
Superior Power Output :
Higher discharge rates (up to 12A)
Cost-Effective & Space-Saving :
Reduce pack weight and cost by requiring fewer cells in series and parallel
Future-Proof :
Ensure compatibility with next-gen tech for high-demand applications
Description

INR21700E40JH 3.6V 4000mAh 3C Discharge 500 Cycles

Product Name

INR21700E40JH Lithium-Ion Rechargeable Battery

Advantages

  • High energy density (215Wh/kg)
  • Long cycle life with stable performance
  • Lightweight and compact design
  • Safe and reliable for high-power applications

Specifications

Parameter

Value

Conditions

Nominal Voltage

3.6V

-

Nominal Capacity

4000mAh

0.5C charge, 1C discharge, 2.75V cut-off

Minimum Capacity

3900mAh

-

Energy Density

215Wh/kg

-

Internal Resistance

≤25mΩ (AC, 1000Hz)

-

Charge Cut-off Voltage

4.20V

-

Discharge Cut-off Voltage

2.75V

-

Standard Charge Current

0.5C (2000mA)

CCCV, 4.2V, 80mA cut-off

Standard Discharge Current

1C (4000mA)

-

Max Charge Current

1C (4000mA)

45°C ≥ T ≥ 15°C

0.5C (2000mA)

15°C ≥ T ≥ 5°C

0.1C (400mA)

5°C ≥ T ≥ 0°C

Max Discharge Current

1C (4000mA)

60°C ≥ T ≥ 45°C

2C (8000mA)

45°C ≥ T ≥ 35°C

3C (12000mA)

35°C ≥ T ≥ 0°C

1C (4000mA)

0°C ≥ T ≥ -20°C

Dimensions

21.65±0.2mm (D) × 70.95±0.2mm (H)

-

Weight

≤71g

-

Cycle Life

Test Condition

Performance

0.5C/1C charge/discharge (4.2V–2.75V)

≥80% capacity retention after 300 cycles

≥70% capacity retention after 500 cycles

Discharge Curve

21700 Battery 4000mAh 3C Discharge 500 Cycles 3.6V

Operating Temperature Range

Mode

Temperature Range

Notes

Charging

0°C to 45°C

Optimal: 15°C–45°C

Discharging

-20°C to 60°C

Max surface temp ≤70°C during discharge

Storage

-20°C to 40°C (short-term)

Long-term storage: 10%–35% SOC at 20°C

Certifications

  • Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.

Key Features

  • High Power: Supports 3C continuous discharge for electric motorcycle 21700 Li-Ion Battery applications.
  • Safety: Built-in protections against overcharge, over-discharge, and overheating.
  • Durability: Robust performance in extreme temperatures and harsh conditions.

Applications

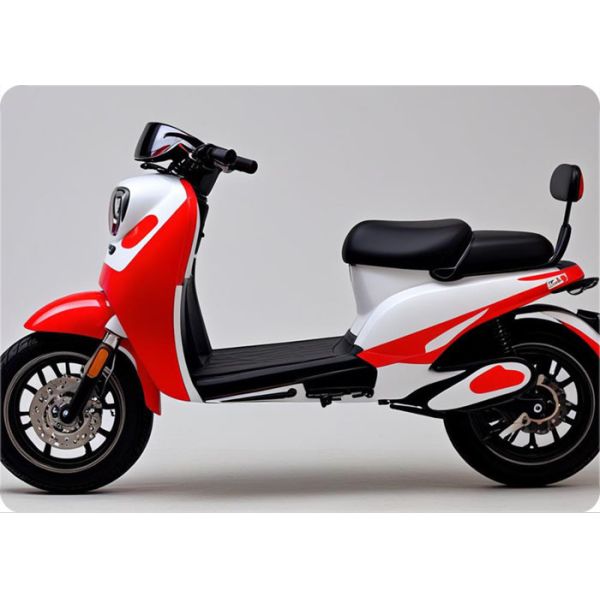

  • Electric motorcycles and scooters
  • Power tools
  • Energy storage systems
  • Medical devices

21700 Battery 4000mAh 3C Discharge 500 Cycles 3.6V

Usage Warnings & Precautions

  • Do not reverse charge/discharge or expose to temperatures >70°C.
  • Use only with compatible chargers (CCCV, 4.2V max).
  • Avoid mechanical damage or immersion in liquids.

Storage Guidelines

  • Store at 10%–35% SOC in dry conditions (0%–50% RH).
  • Recharge every 12 months if stored long-term.

Warranty & Disclaimer

  • 1-year warranty for manufacturing defects.
  • Not liable for misuse, improper assembly, or unauthorized modifications.
