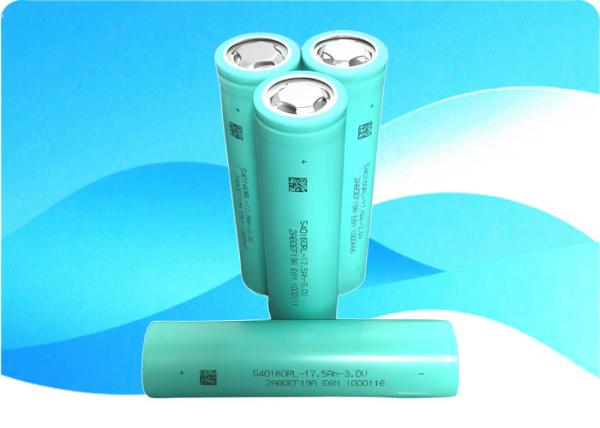

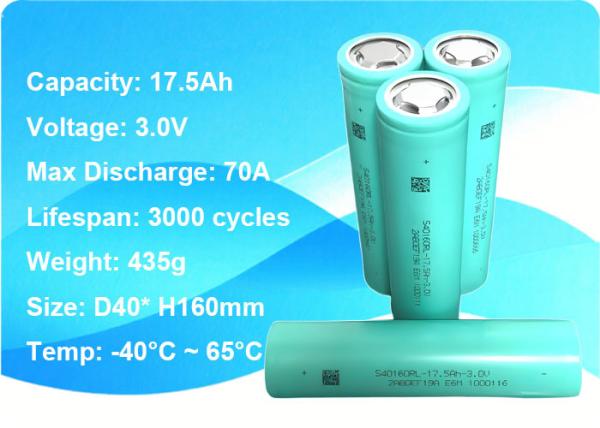

S40160L175QN350 Sodium Battery 3V 17.5Ah 3000 Cycles
S40160L175QN350 Sodium Battery 3V 17.5Ah 3000 Cycles
S40160L175QN350 Sodium Battery 3V 17.5Ah 3000 Cycles
S40160L175QN350 Sodium Battery 3V 17.5Ah 3000 Cycles
Specifications
Brand Name :
OiD
Model Number :
S40160L175QN350
Certification :
Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.
Place of Origin :
China
MOQ :
1pcs
Price :
$4.0 ~ $5.25
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000000
Delivery Time :
5-30 days
Packaging Details :
Carton
Model :
S40160L175QN350
Nominal Voltage :
3.0V
Nominal Capacity :
17.5Ah
Internal Resistance :
1.3mΩ
Weight :
435g
Size :
D40 * H160
Max Charge :
52.5A
Max Discharge :
60Ah
Lifespan :
≥3000 cycles (80% SOH)
Description

Product Name

S40160L175QN350 Sodium-Ion Rechargeable Battery

Advantages

  • Superior low-temperature performance (≥75% capacity retention at -40°C)
  • High energy density (121 Wh/kg, 261 Wh/L)
  • Long cycle life and stable high-temperature storage

Specifications

Item Specification Condition
Nominal Voltage 3.0V -
Nominal Capacity 17.5Ah 0.5C, 25±2°C
Minimum Capacity 17Ah 0.5C, 25±2°C
Operating Voltage 1.5V–3.95V -
AC Internal Resistance 1.3±0.3mΩ 1kHz, 50% SOC, 25±2°C
Weight 435±10g With packaging
Max Continuous Charge 3C (20–40°C), 2C (40–60°C), 1.5C (10–20°C), 0.2C (0–10°C) CC/CV, cut-off 3.95V/0.05C
Max Continuous Discharge 4C (15–45°C) Cut-off 1.5V
Pulse Discharge 15C (10s, 15–45°C) 50% SOC

Cycle Life

Condition Performance
0.5C charge/discharge, 25°C ≥3000 cycles (80% SOH)

Discharge Curve

(Note: Include a graph here showing discharge capacity vs. voltage at different temperatures and rates.)

Operating Temperature Range

Operation Temperature Range Notes
Charging 0°C to 60°C Optimal: 15–40°C (cell surface temp)
Discharging -40°C to 65°C -
Storage (≤3 months) -40°C to 35°C -
Storage (≤6 months) -10°C to 25°C SOC 25–75% recommended

Certifications

Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.

Key Features

  • Robust safety: Passes crush, short-circuit, overcharge, and vibration tests.
  • High efficiency: ≥97% capacity retention at 4C discharge.
  • Wide temperature adaptability for extreme environments.

Applications

  • Energy storage systems
  • Electric vehicles (EVs)
  • Industrial backup power
  • Low-temperature equipment

Usage Warnings & Precautions

  • Do not short-circuit, overcharge, or expose to fire.
  • Avoid storage with metal objects or in direct sunlight.
  • Use CC/CV chargers designed for sodium-ion batteries.
  • Discharge cutoff voltage: ≥1.5V; Charge cutoff voltage: ≤3.95V.

Storage Guidelines

  • Store in dry, ventilated areas (SOC 25–75%).
  • For long-term storage (>3 months), maintain at -10°C to 25°C and recharge every 3 months.

Warranty & Disclaimer

  • Warranty covers manufacturing defects only (abuse/misuse excluded).
  • Not liable for issues caused by improper circuit design or unauthorized modifications.
