OID LFP32140-15000LC 3.2V 15Ah LiFePO4 Battery Cell with 2C High Discharge and 2000 Cycle Life for EV Energy Storage
OID LFP32140-15000LC 3.2V 15Ah LiFePO4 Battery Cell with 2C High Discharge and 2000 Cycle Life for EV Energy Storage
OID LFP32140-15000LC 3.2V 15Ah LiFePO4 Battery Cell with 2C High Discharge and 2000 Cycle Life for EV Energy Storage
OID LFP32140-15000LC 3.2V 15Ah LiFePO4 Battery Cell with 2C High Discharge and 2000 Cycle Life for EV Energy Storage
OID LFP32140-15000LC 3.2V 15Ah LiFePO4 Battery Cell with 2C High Discharge and 2000 Cycle Life for EV Energy Storage
OID LFP32140-15000LC 3.2V 15Ah LiFePO4 Battery Cell with 2C High Discharge and 2000 Cycle Life for EV Energy Storage
Specifications
Brand Name :
OID
Model Number :
OID32140F15AH
Certification :
GB/38031, UL/1642, GB43854-2024 (Needle penetration compliant)
Place of Origin :
Shandong, China
MOQ :
1pcs
Price :
OEM pricing contact sales
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100,000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Individual plastic holder + carton box with foam protection
Nominal Capacity :
15000mAh
Description
OID LFP32140-15000LC 3.2V 15Ah LiFePO4 Battery Cell with 2C High Discharge and 2000 Cycle Life for EV Energy Storage

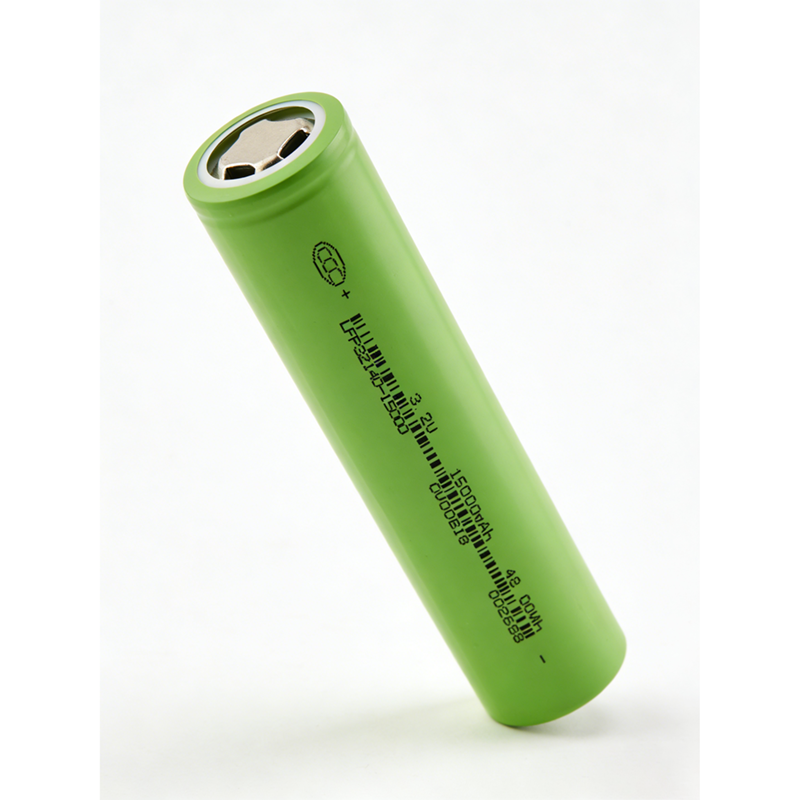

OID LFP32140-15000LC LiFePO4 Battery Cell

Engineered by Jianheng (Shenzhen Jianheng Technology Co., Ltd.), the OID LFP32140-15000LC is a high-power cylindrical lithium iron phosphate battery cell. Delivering 15Ah nominal capacity and supporting 2C continuous discharge, this 32140 cell offers exceptional thermal stability, long cycle life, and reliable performance for demanding applications from -20°C to 60°C.

Core Specifications
  • Nominal Capacity: 15000mAh (0.5C discharge)
  • Nominal Voltage: 3.2V
  • Max Continuous Discharge Current: 2C (30000mA)
  • Max Continuous Charge Current: 1C (15000mA)
  • AC Internal Resistance: ≤3mΩ
  • Cycle Life (0.5C/0.5C): 2000 cycles to 80% capacity
  • Weight: 295±10g
  • Dimensions: φ33.20±0.20mm x 140±0.3mm
Technical Performance Table
Parameter Condition Value
Nominal Energy 0.5C discharge 48.0Wh
Energy Density Cell level 165Wh/kg / 396Wh/L
Standard Charge CC/CV 0.5C (7500mA) to 3.65V, cut-off 0.01C (150mA)
Standard Discharge CC 0.5C (7500mA) to 2.0V
Max Pulse Discharge Not specified Refer to 2C continuous rating
Charge Temperature - 0°C ~ 60°C
Discharge Temperature - -20°C ~ 60°C
Storage Temperature 1 month / 3 months / 1 year -20~45°C / -20~35°C / -20~25°C
Capacity @ -10°C 1C discharge vs 25°C ≥75%
Capacity @ 55°C 1C discharge vs 25°C ≥99%
High-Temp Storage (60°C/7d) Retention / Recovery ≥95% / ≥96%
Room Temp Storage (28d) Retention / Recovery ≥96% / ≥97%
Safety & Compliance

Passed tests per GB/38031, UL/1642, GB43854-2024 standards: External short circuit, overcharge, overdischarge, hot oven (130°C), impact, drop, temperature cycling ( -40°C to 85°C), low pressure (11.6kPa), vibration, and needle penetration. All tests result in no fire, no explosion, no leakage.

Typical Applications
  • Electric Vehicles (EV, HEV)
  • Solar & wind energy storage systems
  • Backup power (UPS, telecom)
  • High-power portable devices
  • Marine & RV batteries
  • Industrial equipment
Manufacturer Information

Shenzhen Jianheng Technology Co., Ltd. (Jianheng)
Address: 20F 2# Bld. Zhenhuan Rd. Pingshan, Shenzhen, China
Phone: 0086 137 2555 9416
Email: alan@liion-batt.com
