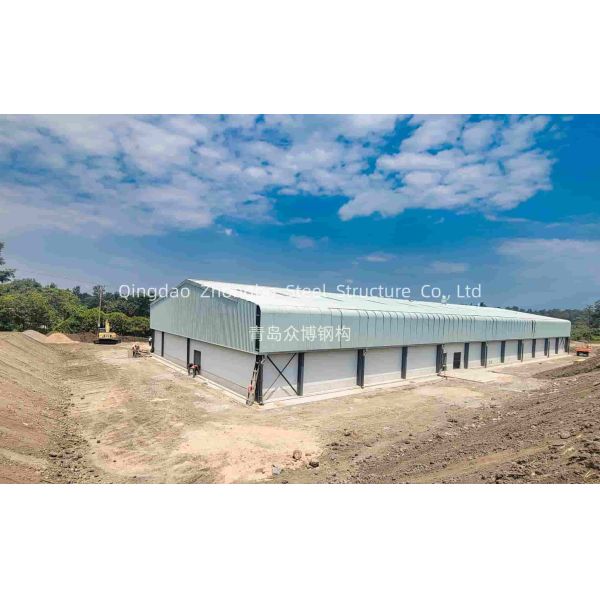

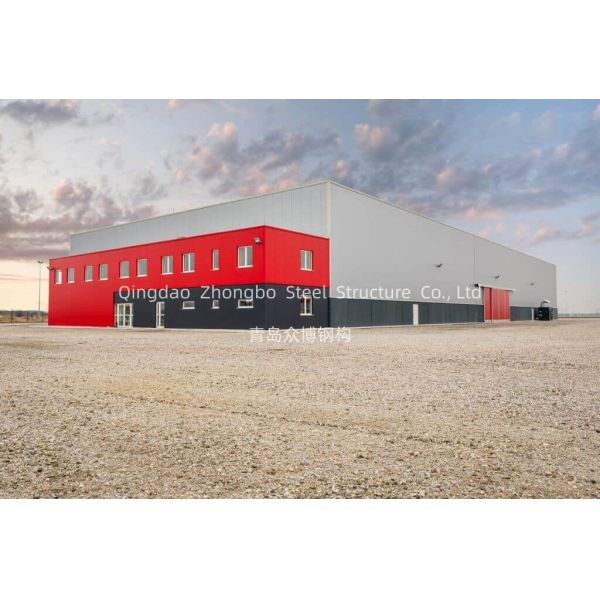

Steel Structure Warehouse featuring strong foundations and reinforced steel structures for enhanced safety and stability
Steel Structure Warehouse featuring strong foundations and reinforced steel structures for enhanced safety and stability
Steel Structure Warehouse featuring strong foundations and reinforced steel structures for enhanced safety and stability
Steel Structure Warehouse featuring strong foundations and reinforced steel structures for enhanced safety and stability
Specifications
Brand Name :
zhongbo
Model Number :
JZ-117
Certification :
ISO
Place of Origin :
China
MOQ :
500m2
Price :
US $ 25-65/m2
Payment Terms :
L/C,T/T
Supply Ability :
3000tons/month
Delivery Time :
25-30 days
Packaging Details :
Packing in Containers or Bulk
Size :
Customizable
Connection :
Bolt Connection
Install :
Guidance on installation
Type :
Light,Heavy,Light Steel Struture,Structural Steel Warehouse,Large Warehouse
Application :
Steel Workshop,Steel Fabricated House,steel structure warehouse,Storage,Warehouse
Grade :
Q235 Q345B,Q345 steel,sandwich panel,Hot Rolled Steel,G350
Description
Steel Structure Warehouse
Featuring strong foundations and reinforced steel structures for enhanced safety and stability
Product Overview
The Steel Structure Warehouse is a versatile and durable metal storage facility designed to meet industrial storage needs. This cost-effective solution combines efficiency with durability, offering businesses an optimal way to expand their storage capacity.
Key Benefits
  • Economical construction using high-quality steel materials
  • Rapid installation with prefabricated components
  • Environmentally friendly, recyclable materials
  • Robust structural design with angle steel bracing
  • Durable H beam construction for superior load-bearing capacity
Technical Specifications
Component Specification
Main Steel Frame (Column) Q235B, Q355B Welded or Hot-rolled H Steel
Main Steel Frame (Beam) Q235B, Q355B Welded or Hot-rolled H Steel
Purlin Q235/Q355B C and Z purlin
Knee Brace Q235 Angle Steel
Wall/Roof Panels EPS / Glass Fiber / Rock Wool / PU Sandwich Panel / Steel Sheet
Wind Resistance Grade 12
Earthquake Resistance Grade 8
Structure Lifespan Up to 50 years
Steel Structure Warehouse featuring strong foundations and reinforced steel structures for enhanced safety and stabilitySteel Structure Warehouse featuring strong foundations and reinforced steel structures for enhanced safety and stability
Our Service
Professional Design
We own more than 10 engineers who have abundant experience for various types buildings. Before design, all requirements will be collected from clients. The design will obey the requirements and pass the calculation check by the architectural soft, such as CAD, PKPM, 3D3S etc.
Short Delivery Time
Mature production system with advanced equipment and rich production lines will guarantee the quick production process. Further skilled labour team also manage every detail well for the delivery.
Quality Control
All raw materials are purchased from qualified mills and the materials quality should be checked when received. Quality control is done in each production progress. Each component will packed and protected before the shippment.
Rich Export Experience
Our products have been exported to more than 30 countries such as North America, South America, South Asia and Africa countries. All export services will be arranged for you by your exact demands.
Free Technical Installation Guide
Different options chosen: On-line technical guide in time; 1-2 engineers to guide on site; Our installing team process all assemble for the client.
Production Process
Steel Structure Warehouse featuring strong foundations and reinforced steel structures for enhanced safety and stability
Packaging & Shipping
Steel Structure Warehouse featuring strong foundations and reinforced steel structures for enhanced safety and stability
Company Profile
Qingdao Zhongbo Steel Structure Co., Ltd. is a comprehensive steel structure enterprise affiliated to Shandong Zhongbo Materials Technology Group Co., Ltd. Located in Qingdao, Shandong Province, the company covers an area of over 106,667 square meters (160 mu) with 6 production and processing bases, and the total area of workshop buildings reaches 50,000 square meters. Its products are exported to more than 80 countries and regions worldwide.
Over the past 15 years, Qingdao Zhongbo has been deeply committed to the design and R&D of steel structure building systems. To date, the company has obtained 43 patented technologies. Its independently developed corrosion-resistant industrial steel products and building corrosion protection system materials comprehensively solve the chemical corrosion problem of steel components at the system level. Meanwhile, Zhongbo holds a range of national qualifications, including General Contracting Qualification for Construction Projects, Steel Structure Construction and Installation Qualification, Decoration and Renovation Qualification, Integrated Waterproof, Corrosion-Resistant and Thermal Insulation Qualification, Fire Protection Facilities Qualification, Construction Labor Service Qualification, Special Structure Reinforcement Qualification, and Electronic Intelligence Qualification. In 2021, the company was certified as a National High-Tech Enterprise and a National Technology-Based Enterprise.
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer with over 15 years experience in metal products. We welcome factory visits to demonstrate our quality control processes and offer competitive pricing.
Q2: How is freight calculated?
A: Freight costs depend on shipping method (sea/air) and destination port/airport. Please provide specific details for an accurate quote.
Q3: How competitive are your prices?
A: We offer the best value - either superior quality at comparable prices or competitive pricing with equivalent quality standards.
Q4: Do you provide installation support?
A: We supply detailed installation drawings and videos. Engineers or full installation teams can be dispatched upon request.
Q5: Do you offer design services?
A: Yes, we provide complete design solutions using AutoCAD, PKPM, Tekla Structures and other professional software for various building types.
Q6: What is your delivery time?
A: Standard delivery to nearest Chinese seaport is approximately 30 days after deposit receipt, depending on order quantity.
Request Free Design & Quotation
If you are interested in steel structure building, provide the following information to receive free design and quotation:
Basic Design Requirement
Design Load: (very important)
Drawings & Quotation Information
1) Customized design is welcomed.
2) Please provide your steel structure project details:
  • Project site location
  • Overall dimension (length*width*eave height in meters)
  • Mezzanine or not? How many kgs of load per square meter on mezzanine?
  • Single-layer steel sheet wall or sandwich panel wall
  • Snow load if applicable
  • Wind speed/load
  • Interior column allowed or not
  • Overhead crane needed or not, capacity?
  • Any other particular requirements?
Building Purpose
We will recommend the best design for the purpose of the building:
  • Warehouse/Storage
  • Factory
  • Agriculture Barn
  • Repair/Mechanic Shop
  • Office Space
  • Medical Warehouse
  • Animal Farm (please confirm what kind of animal)
Looking forward to your reply.
