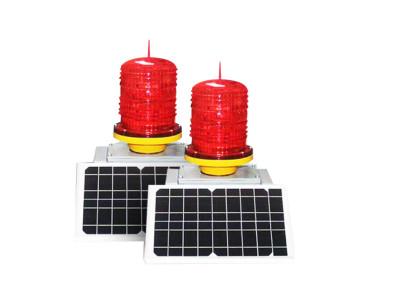

Low Intensity Solar Powered Aircraft Warning Lights 360 Degree Beam Angle
Low Intensity Solar Powered Aircraft Warning Lights 360 Degree Beam Angle
Specifications
Brand Name :
HAMMOND
Model Number :
HD-156
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000
Delivery Time :
8 days
Wattage: :
15W
Operating Voltage: :
DC12V
Beam Angle: :
360 degree
Light control sensitivity: :
50-300lux
Material: :
Aluminum alloy +PC
Description

Low Intensity Solar Powered Aircraft Warning Lights 360 Degree Beam Angle

Aviation obstacle lights are generally divided into low light intensity, medium light intensity and high light intensity three, aviation obstacle lights to the vertical and horizontal distance of more than 45 meters of the building and its facilities, can be three kinds of obstacle marking lights used in conjunction with each other. Classification of aviation obstacle lights
Below 45 metres from the ground, the surrounding open space should be set up low light intensity aviation obstacle lights, constant red light.
Buildings and their facilities above 45 metres and below 105 metres above ground level: medium light intensity type B aviation obstacle lights with red flashing, the flashing frequency should be between 20-60 times per minute, the effective light intensity is 2000 cd ± 25%.
Above 105 m from the ground and below 150 m use medium intensity type A aerial obstruction lights; white flashing with an effective light intensity (2000-20000 cd) ± 25%.
Buildings and their facilities above 150 m from the ground use high intensity obstacle marker lights and must be white flashing, the flashing frequency should be between 20-70 times per minute, the effective light intensity is the same as the background brightness and works 24 hours a day.
Product Description
HD-125L solar aviation obstacle light source using solid-state
LED light source, aluminum alloy die-casting shell, waterproof
dense structure, with impact resistance, lightning, rain and snow
resistance, can resist typhoons, hail and other bad weather
attacks, sunlight aging and other advantages. Flasher mainly
with high-quality electronic components, with power overcharge over discharge protection battery function. High
efficiency monocrystalline silicon solar physical panels and high-
capacity maintenance-free battery perfect combination, to
provide power energy for the flasher. Ensure that the light
device in the continuous rainy days 15 days of normal work.
Light device using highly intelligent computer integrated chip,
the product is generally used under normal circumstances, three
years without any maintenance.
Low Intensity Solar Powered Aircraft Warning Lights 360 Degree Beam AngleLow Intensity Solar Powered Aircraft Warning Lights 360 Degree Beam Angle

Application
size
The light is automatically controlled by light control,
automatically open at night or foggy weather,
automatically turn off during the day, reliability,
flashing cycle can be set according to needs. Widely
used in urban high-rise buildings, wind cranes,
power plants, smoke, large engineering piles,
communications towers and airports around the
building facilities, to ensure navigation safety.
