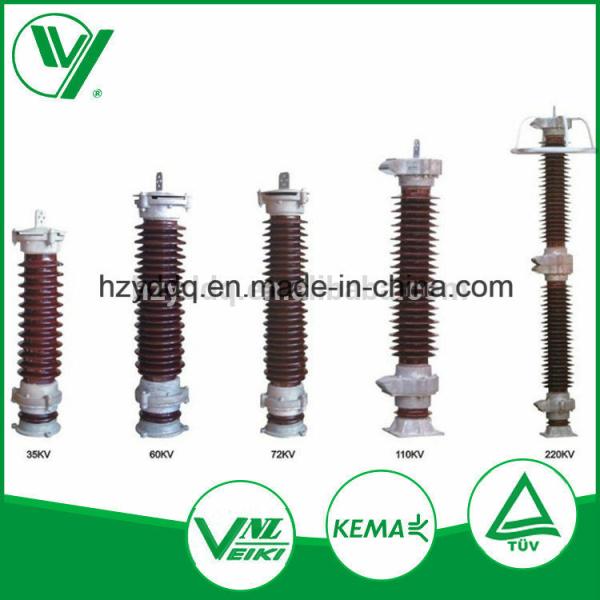

Outdoor Brace-Type Surge Arrester HY5WBG-17/50 17kV Polymer Housing

Specifications

Certification :

ISO9001

MOQ :

Price :

Model NO. :

HY5WBG-17/50

Installation Type :

Parallel Arrester

Material :

ZnO

Housing Material :

Polymer

Voltage Rating :

17kv

Discharge Current :

5ka

Rated Voltage :

17 KV

Operate Continuous Voltage :

13.6 KV

Maximum DC Voltage :

25 KV

Minimum Steep Impulse :

57.5 KV

Maximum Lightning Impulse :

50 KV

Maximum Operation Impulse :

42.5 KV

Persistent Current :

0.5 MA

Resistive Current :

250 UA

Bending Resistance :

1.6 KN

Description

Brace-Type Surge Arrester
Using Condition
1. The products apply for outdoor and indoor operation.
2. Altitude doesn't exceed 2000m.
3. Power frequency range from 48Hz to 62Hz.
4. Power frequency voltage doesn't exceed surge arrester's continuous operative voltage.
5. Earthquake Intensity don't exceed 7 degree
6. Maximum wind speed doesn't exceed 35m/s
Constructure Feature and Operation Principle

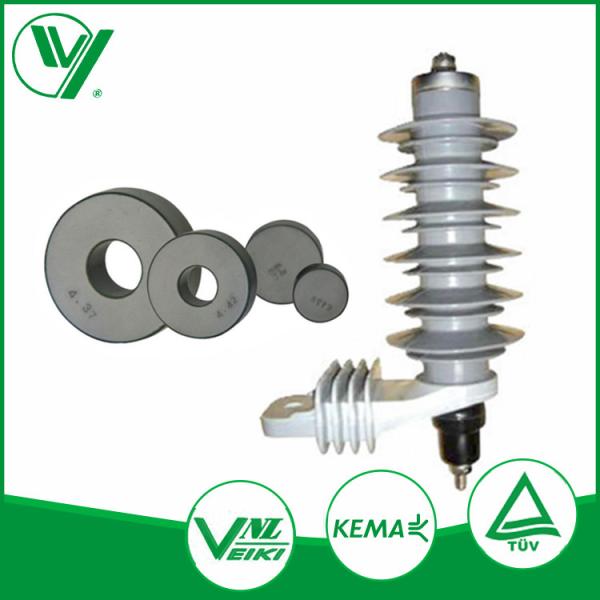

Product's inside is consisting of non-line high quality metal oxide varistor. Outside is molded by silicone rubber.
Under the usual condition, the surge arrester has high resistance, having only microampere current and no effect on the equipment's usual operation. When the overvoltage wave traverse, the surge arrester has low resistance, having kilo-ampere current and the surge arrester two-end voltage is still controlled allowable scope, so it protect the equipment from the overvoltage.

Type	Rated Voltage	Operate Continuous Voltage	Maximum DC 1 mA Reference Voltage	Minimum Steep Impulse Residual Voltage	Maximum Lightning Impulse Residual Voltage	Maximum Operation Impulse Residual Voltage	Presistent Current		Bending Resistance (KN)	Bending Broken (KN)
							Total Current	Resistive Current
	KV	KV	KV	KV	KV	KV	MA	UA
HY5WBG-17/50	17	13.6	25	57.5	50	42.5	0.5	250	1.6	4
