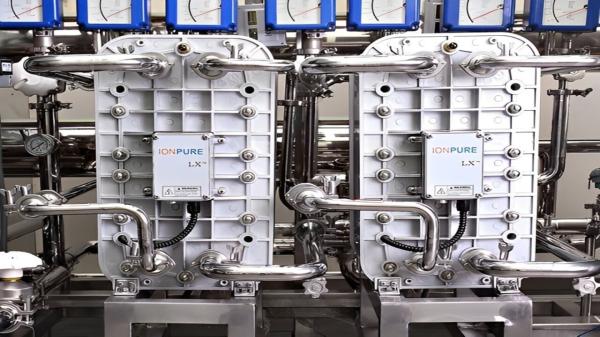

Ionpure CEDI LX-Z IP-LXM04Z-5 For Laboratory Ultrapure Water Systems

Ionpure LX-Z — 工业 CEDI 模块

Continuous Electrodeionization (CEDI) Module | 4 GPM Flow Capacity

Core Functionality
The IP-LXM04Z-5 is a high-efficiency electrodeionization module designed for continuous, chemical-free production of ultrapure water (up to 18.2 MΩ·cm resistivity). It replaces traditional mixed-bed ion exchange (IX) systems, eliminating chemical regeneration while delivering consistent purity.

Critical Advantages

1. Zero Chemical Operation

   • Eliminates acids, bases, and regeneration waste; reduces operating costs by >50% vs. conventional IX.

2. Mixed-Bed Quality Output

   • Consistently achieves ≤1 ppb ionic contaminants and ≤10 ppb silica.

3. Robust Reliability

   • Double O-ring seals, resin-filled concentrate chambers, and NSF® 14/61-compliant materials ensure leak-free operation.

4. Continuous 24/7 Production

   • Stable performance without downtime for regeneration; tolerates feedwater fluctuations.

5. Certified Manufacturing

   • CE marked; produced under ISO 9001 (Quality) and ISO 14000 (Environmental) standards.

Operating Requirements

• Environment: Indoor installation only, away from direct sunlight.

• Temperature: Ambient ≤113°F (45°C) for optimal performance and lifespan.

• Feedwater: Requires reverse osmosis (RO) pretreatment.

Typical Applications

• Pharmaceutical water loops (PW, WFI pretreatment)

• Microelectronics rinsing and etching

• Laboratory ultrapure water systems

• Power plant boiler feedwater

• High-purity process water in food/beverage

Why Choose IP-LXM04Z-5?

→ Sustainability: No hazardous chemicals or regeneration wastewater.
→ Cost Efficiency: Lower OPEX and minimal maintenance.
→ Compliance: Meets USP, EP, and JP water quality guidelines for critical applications.

质量保证标准

CE标志认证,每个模块在出厂前都经过严格测试,以满足行业的高标准,并在符合ISO 9001和ISO 14000质量和环境管理体系标准的条件下制造.

关于IONPURE LX-Z模块的运行环境:

组件应安装在室内,避免阳光直射,并确保环境温度不超过45℃,以保证其稳定高效运行.这可以有效延长组件的使用寿命,同时确保水质的稳定性和可靠性.

* 可以使用 Ionpure 提供的 IP-Pro 预测工具准确估算实际性能.

*性能数据基于最大进水电导率当量值(40 μS/cm)的测试,确保在各种应用场景中实现出色的去离子效果.

E-Cell EDI Technology Performance Examples

E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.

For application cases, please click:https://www.fgwater.com/Industries/
