Specifications
Brand Name :
CHOYUEH
Model Number :
Multi-span Film Greenhouse
Place of Origin :
SICHUAN
MOQ :
Moq：100square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
15-20 Days
Cover Material :
Film
Product name :
Multi-span film greenhouse
Size :
10X30m,customizable
Application :
Vegetable Fruits Flowers,etc.
Material :
Hot Dipped Galvanized Steel
Length :
32m-80m
Width :
6m,8m,9m,10m,12m
Covering :
Single/Double layer pe film
System :
Ventilation system,cooling system,heating system,etc.
Features :
Easy Installed
Warranty :
10-20 years
Price :
Negotiable
Supply Ability :
10000square meter per week
Description

Large Size Multi-span Sawtooth PE Plastic Film Greenhouse Tomato Greenhouse And Strawberry Greenhouse Turnkey ProjectPE Plastic Film Greenhouse Multi Span Sawtooth Turnkey ProjectPE Plastic Film Greenhouse Multi Span Sawtooth Turnkey ProjectPE Plastic Film Greenhouse Multi Span Sawtooth Turnkey ProjectPE Plastic Film Greenhouse Multi Span Sawtooth Turnkey ProjectPE Plastic Film Greenhouse Multi Span Sawtooth Turnkey ProjectPE Plastic Film Greenhouse Multi Span Sawtooth Turnkey ProjectPE Plastic Film Greenhouse Multi Span Sawtooth Turnkey ProjectPE Plastic Film Greenhouse Multi Span Sawtooth Turnkey ProjectPE Plastic Film Greenhouse Multi Span Sawtooth Turnkey ProjectPE Plastic Film Greenhouse Multi Span Sawtooth Turnkey ProjectPE Plastic Film Greenhouse Multi Span Sawtooth Turnkey Project

Type: Film multi-span greenhouse, polycarbonate multi-span greenhouse,Glass greenhouse

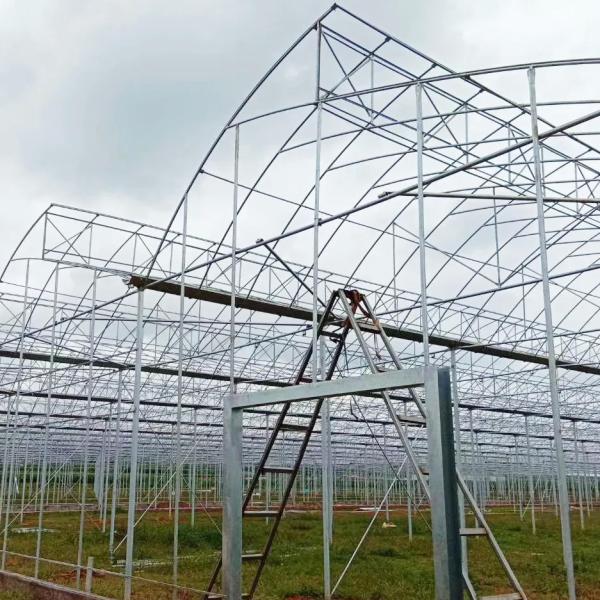

Frame structure:
(1)Hot dip galvanized steel Frame
(2) Main post: 150*150mm-100*100mm
(3) Auxiliary post : 120*60mm-100*50mm
(4) Thickness: 1-2.5mm
(5) Truss: 50*50*2.5mm
(6) Zinc coating: average 210g/㎡
(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡
Covering:
(1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm
(2) Polycarbonate:double/three layers
(3) Tempered glass
Single layer: 4mm/5mm
Double layer 5+6+5 mm

Can be customized according to customer requirements
Film multi-span greenhouse Parameters:
(1) Wind load: 0.55KN/㎡
(2) Snow load: 0.45KN/㎡
(3) Maximum rainfall: 140mm/h
(4) Planting bearing: 0.2KN /㎡
