Specifications
Payment Terms :
T/T
Supply Ability :
50000 PCS/ YEAR
Model Number :
Anti-collision
Operation Type :
Hand chain gear driven
MOQ :
50PCS
Delivery Time :
20 Work days
Material :
Alloyed Steel
Price :
15USD
Color :
Red, Yellow, Orange, Blue, Customized
Packaging Details :
Carton
Certification :
CE ISO
Capacity :
0.5T - 10T
Place of Origin :
HEBEI, CHINA
Beam Type :
I Beam, H Beam, Channel Beam
Brand Name :
OEM
Product Name :
Anti-collision Geared Trolley
Description

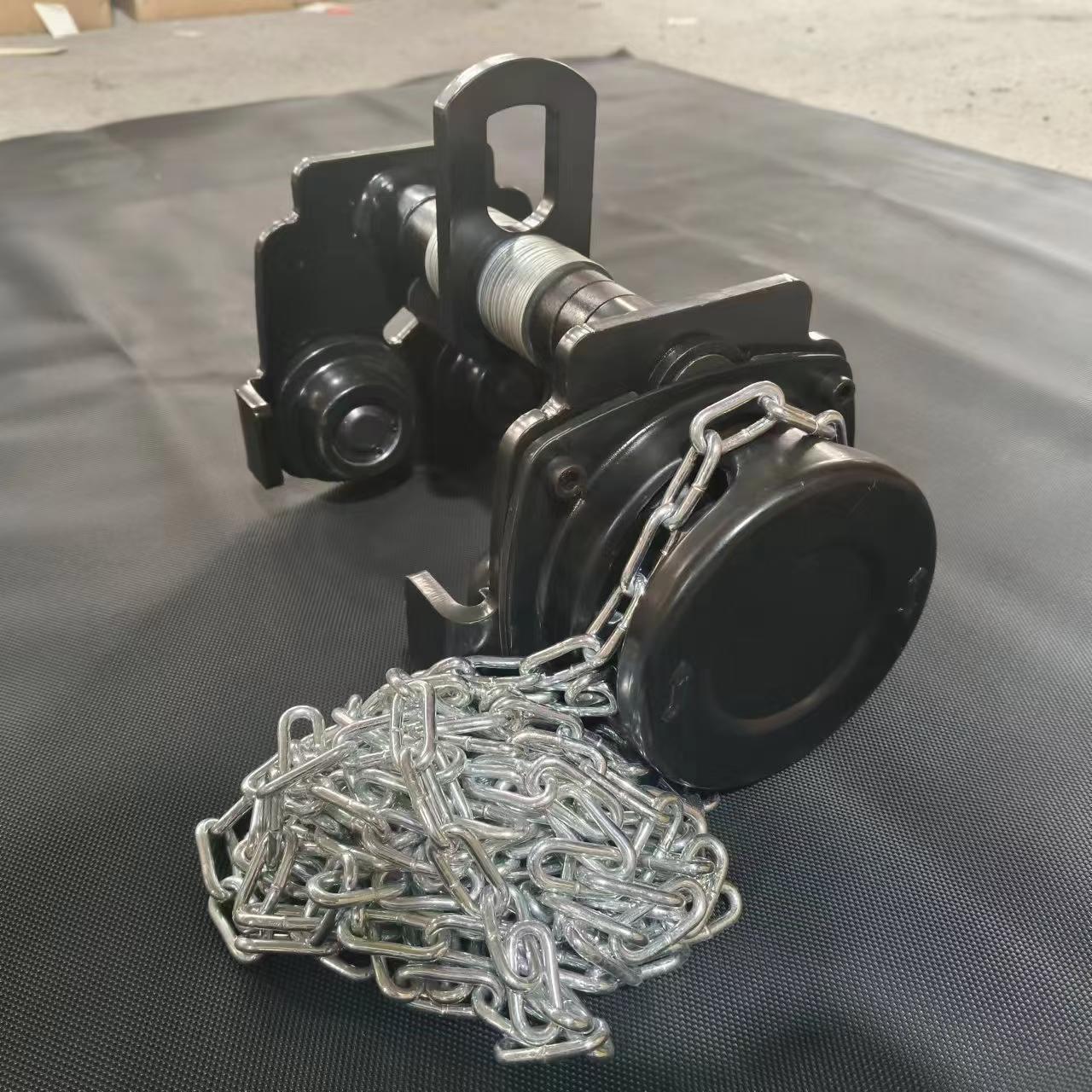

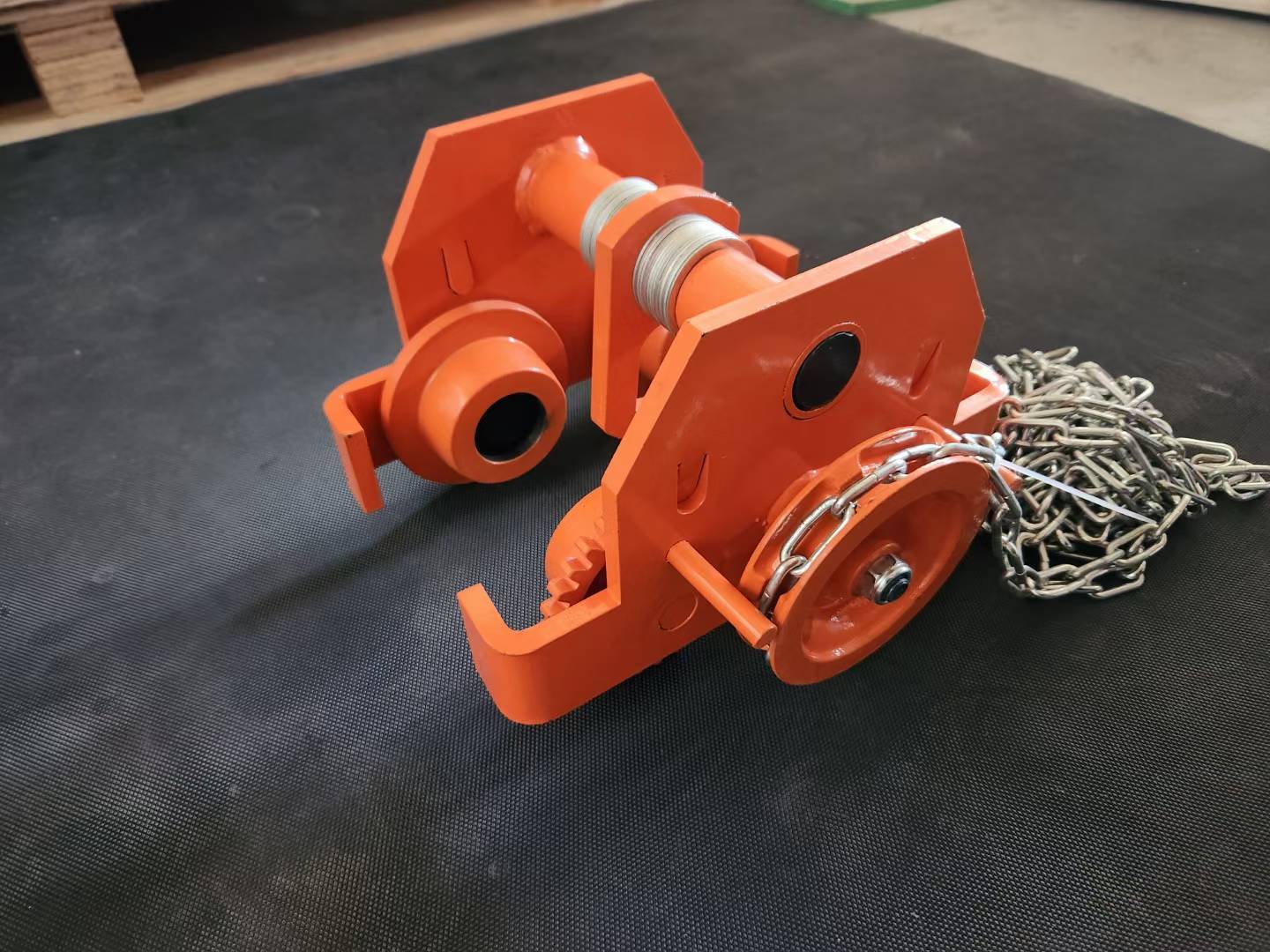

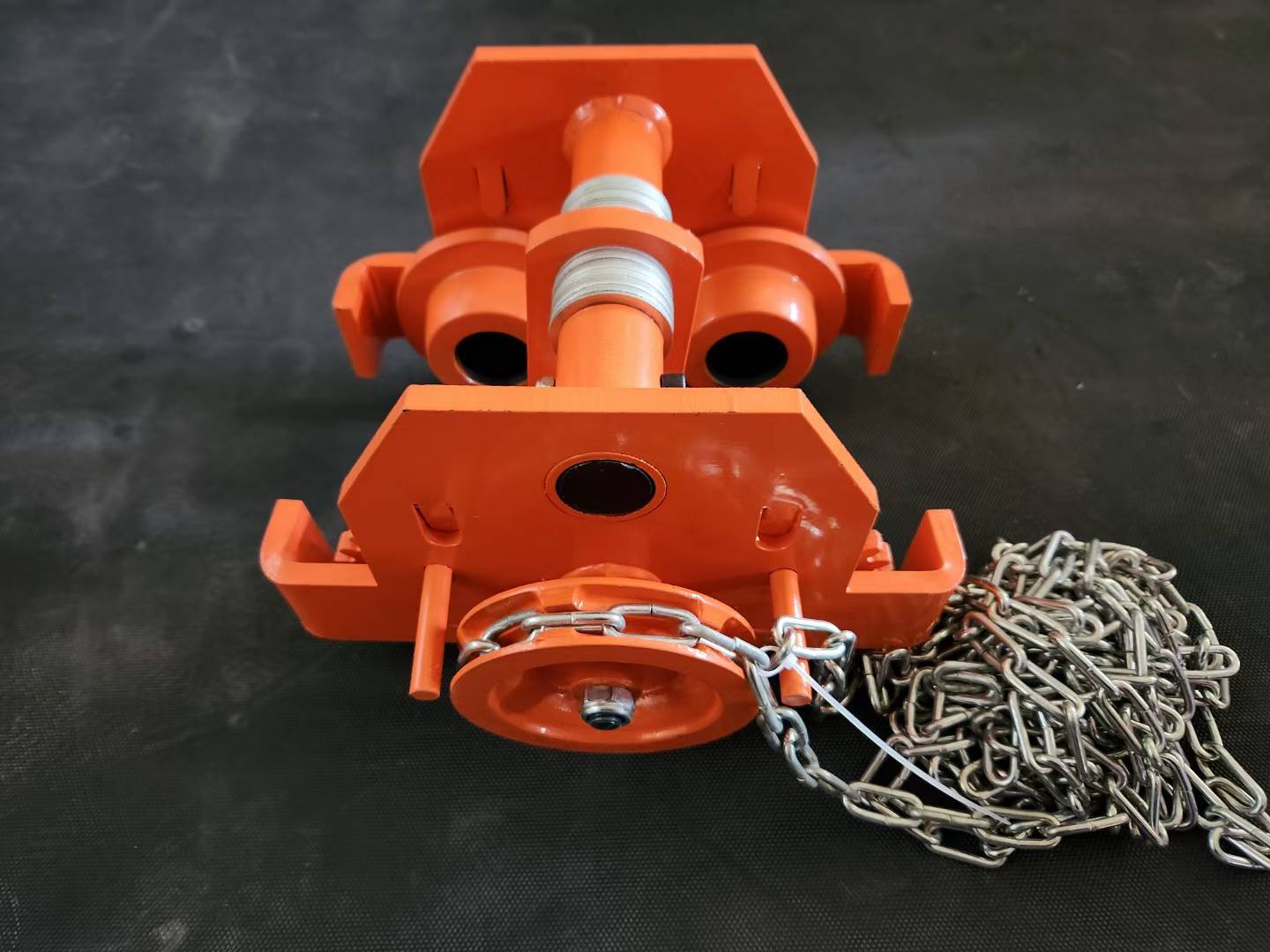

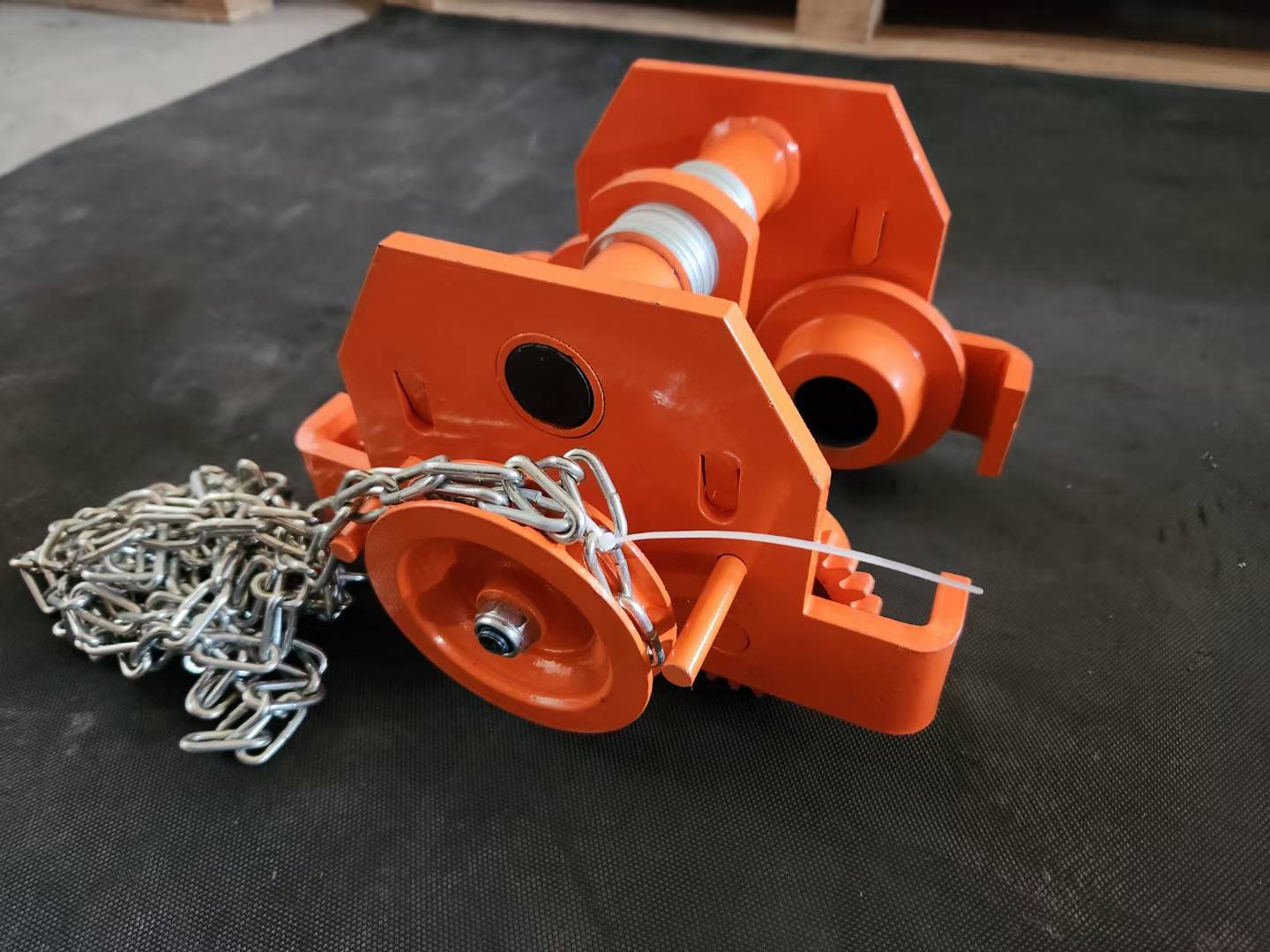

Anti-Collision Hand Geared Trolley, I-Beam Hand Chain Travelling Plain Trolley with Mechanical Stop Baffle

Product Description:

Anti-collision hand geared trolley is a high-performance gear-driven monorail travelling equipment widely used for indoor overhead hoisting work. Operators pull the hand chain to drive the internal gear transmission system, enabling the trolley to achieve stable horizontal movement along the I-beam track. The gear transmission design makes travelling labor-saving and controllable during heavy-load handling.
The trolley frame is integrally fitted with mechanical anti-collision baffles on both ends. When the trolley approaches the terminal of the track, the baffles play a reliable limiting role, effectively restricting its travelling range and preventing the trolley from rushing out of the track to cause collision accidents. It adopts optimized anti-derail wheel structure to eliminate the risk of wheel slipping off the track and greatly improve overall operation safety.
The adjustable wheel span allows flexible matching with multiple specifications of standard I-beams, offering strong adaptability for different workshop track conditions. This geared trolley can be directly assembled with hand chain block to form a complete lifting unit, realizing integrated overhead hoisting and cargo transverse transfer.
It is an ideal travelling device for heavy load manual lifting occasions without power supply, such as machinery workshops, equipment maintenance sites and factory warehouses. Featuring solid construction, easy installation and low failure rate, it serves as a safe and reliable supporting accessory for powerless industrial hoisting operations.

Key Features:

Integrated Mechanical Anti-Collision Baffles Built-in limiting baffles integrated with frame, control travelling range and avoid overtravel.
Heavy-duty Cast Steel Wheels Low friction, wear-resistant cast wheels, effortless pushing movement.
Simple Maintenance Compact mechanical structure, few vulnerable parts, easy inspection & service.
Adjustable Wheel Span Flexible flange width adjustment to fit various standard I-beams.

Hand Operated Push Travel Beam Trolley Low Friction Overhead Hoist Trolley With Mechanical Stop Baffle

Technical Specifications:

Capacity I-beam width Min. turning radius N.W./KGS A B C H
0.5T 68-94 0.9M 7.8 233 170 183 112
1.0T 68-100 1.0M 10.2 255 193 215 143
2.0T 94-124 1.1M 15.5 301 235 260 175
3.0T 116-140 1.3M 25.5 343 280 308 215
5.0T 140-180 1.4M 39.5 415 335 382 250
10T 125-180 1.7M 100 442 395 510 295
20T 122-203 5.0M 235 475 798 575 300

Workshop:

Application Scenarios:

Anti-collision hand geared trolley works together with hand chain block to realize vertical lifting and horizontal travelling of heavy goods. Compared with push-type trolley, the gear transmission design greatly reduces pulling force under heavy load. Built-in anti-collision baffles protect equipment and beam structure. Widely used in machinery factories, repair workshops and freight yards without power supply.
