0.5Ton - 9Ton Lever Chain Block VT Type Ratchet Lever Hoists
0.5Ton - 9Ton Lever Chain Block VT Type Ratchet Lever Hoists
0.5Ton - 9Ton Lever Chain Block VT Type Ratchet Lever Hoists
0.5Ton - 9Ton Lever Chain Block VT Type Ratchet Lever Hoists
0.5Ton - 9Ton Lever Chain Block VT Type Ratchet Lever Hoists
0.5Ton - 9Ton Lever Chain Block VT Type Ratchet Lever Hoists
Specifications
Supply Ability :
100000pcs/year
Delivery Time :
20 work days
Model Number :
VT
Capacity :
0.75T / 1T / 1.5T / 2T / 3T / 6T / 9T
MOQ :
20 unit
Packaging Details :
PLY wooden case
Factory Test Standard :
1.5 times rated load tension test
Payment Terms :
T/T
Load Chain :
G80 Lifting Chain, Black, Galvanized Or Polish
Certification :
CE
Standard Chain Length :
1.5m (Custom 3m/5m available）
Place of Origin :
HEBEI, CHINA
Safety Factor :
4:1
Brand Name :
OEM
Model :
Lever Chain Block
Description

Ratchet Lever Manual Hoist 0.5Ton -9Ton VT Type Lever Chain Block and Lever Chain Block


Product Overview:

VT series lever puller adopts integrally formed curved cast housing together with professional exclusive ratchet driving assembly, delivering solid structural strength and stable transmission performance under heavy loads. Operators can conveniently complete workpiece lifting, horizontal traction and cable straining tasks simply by swinging the hand lever back and forth without extra power supply. This pulling tool is equipped with a dependable one-way self-lock braking system and wear-resistant high-strength alloy load chain. The reliable braking structure avoids unexpected slipping of loads and greatly enhances safety during long-time tensioning work.
Benefiting from the streamlined compact frame design, the lever puller features small overall dimensions and light weight, supporting flexible single-hand manipulation in narrow and confined working spaces. It realizes two core practical functions including vertical load hoisting and cable tightening, meeting diversified on-site operation requirements.
As a multi-functional portable tensioning and lifting tool, it has a wide range of application scenarios. It is extensively adopted in power grid construction, pipeline installation engineering, vehicle breakdown rescue and equipment maintenance. Multiple tonnage specifications are available to select, serving as an essential portable tool for outdoor engineering and field maintenance work.

Features:

Special Ratchet Lever Drive Lever operation instead of hand chain, suitable for narrow space.
One-way Instant Self-locking Brake Lock immediately when releasing handle, no slide back under load.
Compact Curved Cast Shell High rigidity, anti-drop impact resistant, long service life.
3-way Control Switch Lift / Lower / Neutral gear, simple operation without confusion.
Complete Small Ton Range 0.75T~9T full models, customizable chain length on demand.

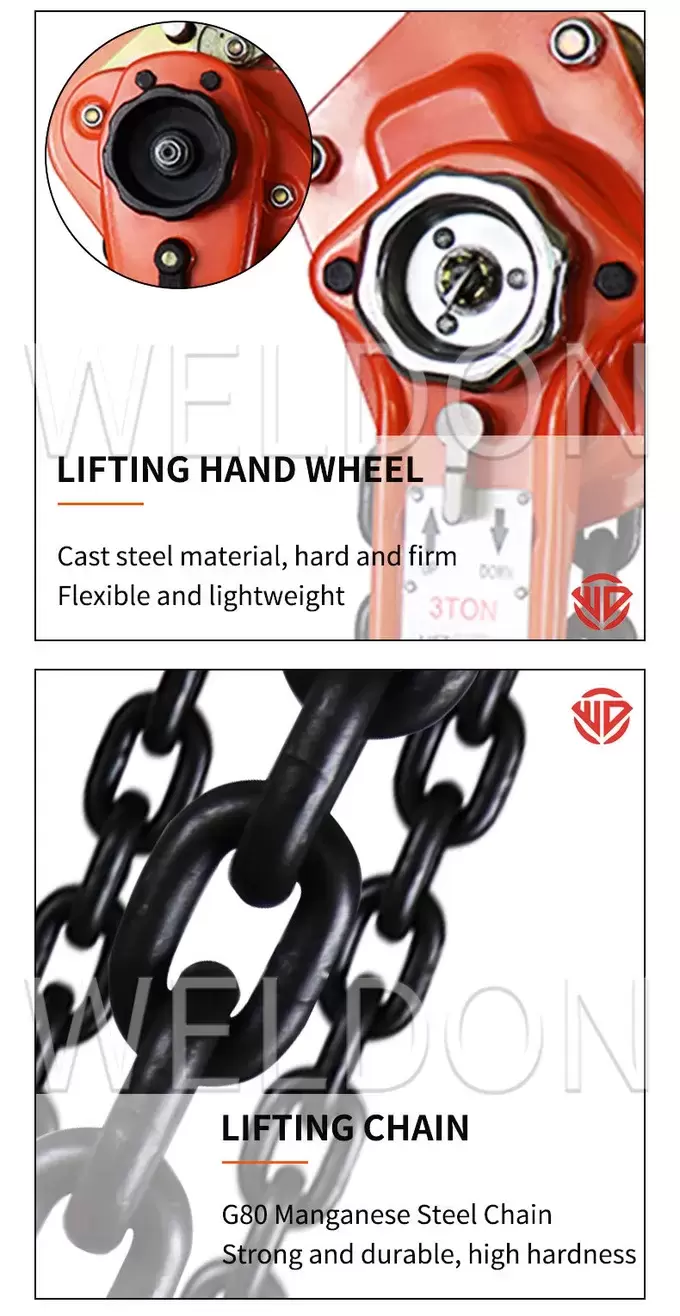

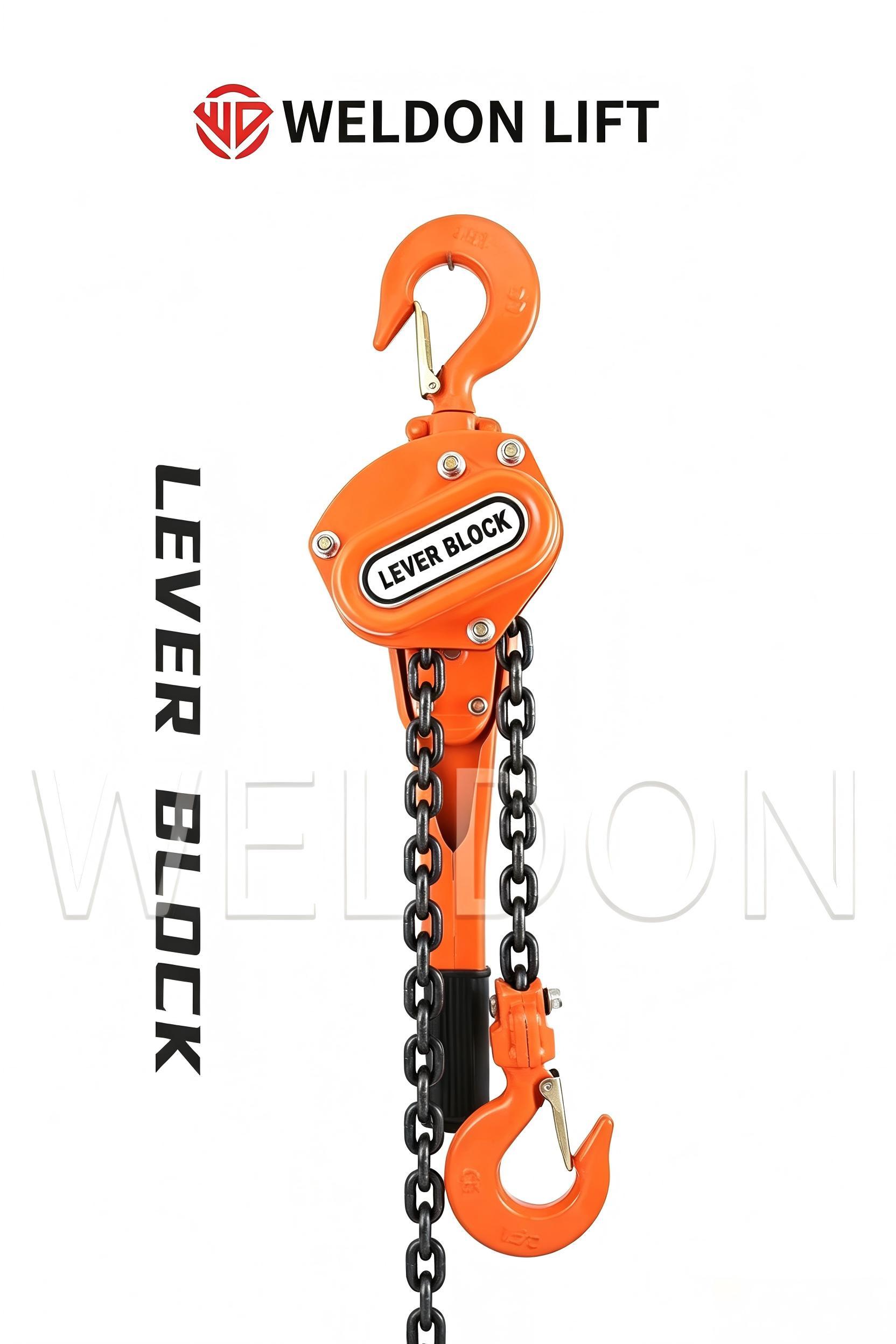

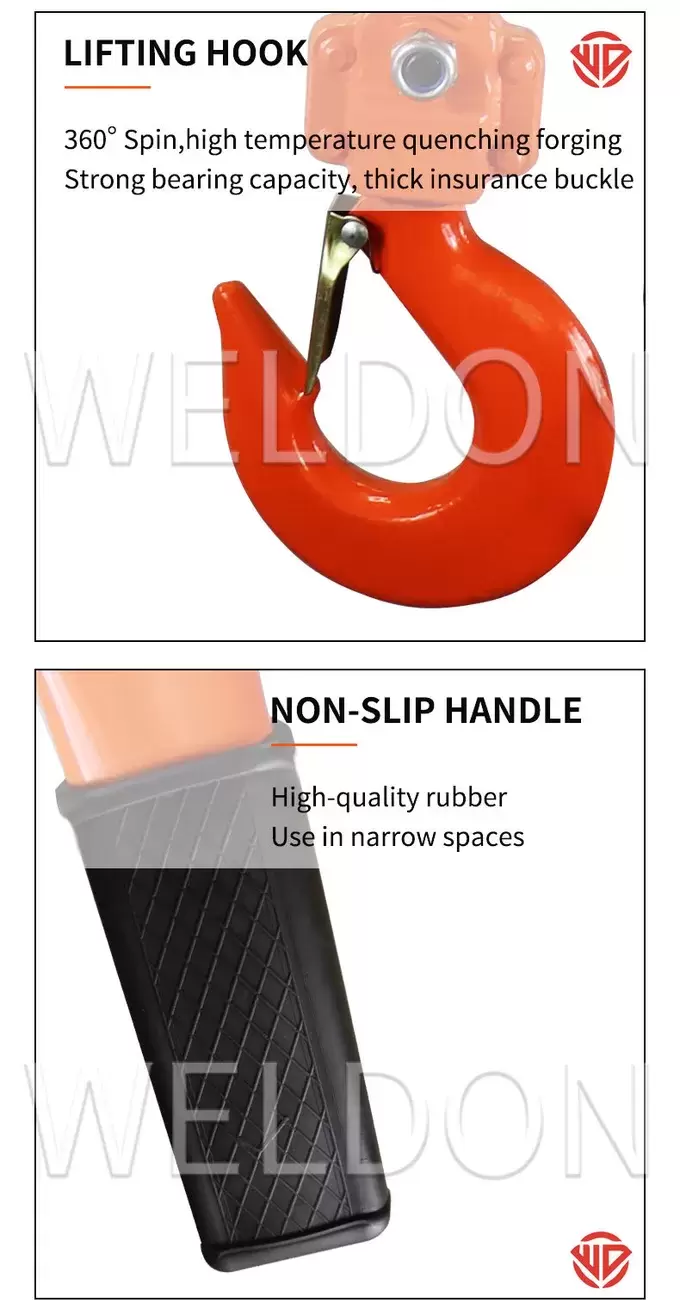

Real Shot:

0.5Ton - 9Ton Lever Chain Block VT Type Ratchet Lever Hoists

0.5Ton - 9Ton Lever Chain Block VT Type Ratchet Lever Hoists

0.5Ton - 9Ton Lever Chain Block VT Type Ratchet Lever Hoists

0.5Ton - 9Ton Lever Chain Block VT Type Ratchet Lever Hoists

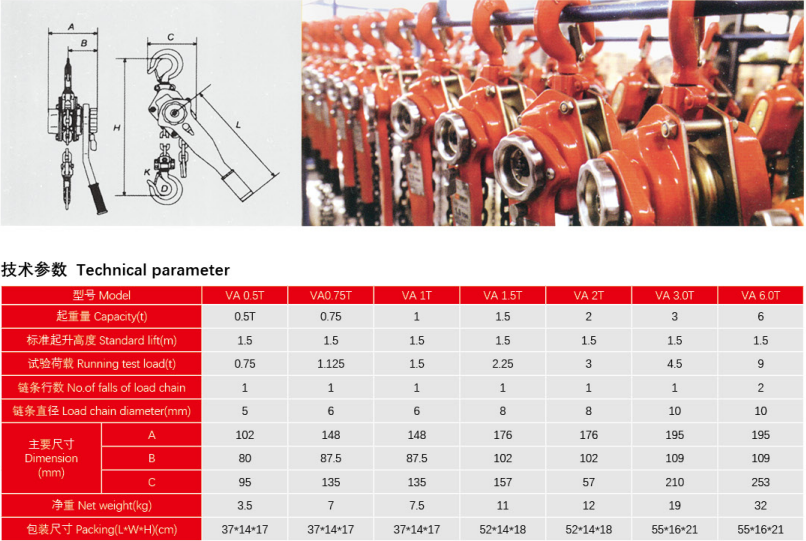

Product Specifications:

0.5Ton - 9Ton Lever Chain Block VT Type Ratchet Lever Hoists

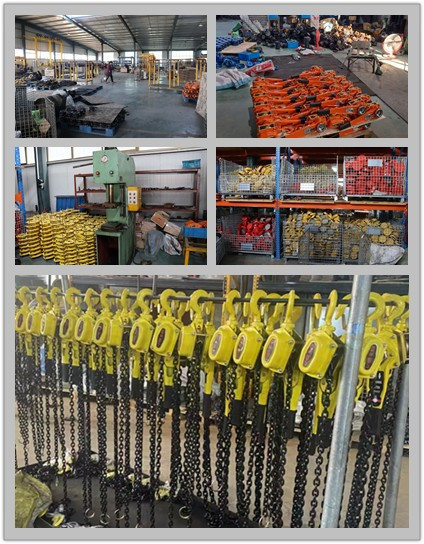

Work shop:

0.5Ton - 9Ton Lever Chain Block VT Type Ratchet Lever Hoists

Application Scenarios:

The VT series lever puller is a portable multi-purpose tool for hoisting, traction and cable tensioning. It is commonly used in power construction, pipeline assembly, vehicle roadside rescue and equipment maintenance. The compact structure allows convenient operation within narrow spaces. Built with self-lock brake system and durable alloy chain, it ensures safe tensioning and lifting work. Without power requirement, it is highly suitable for outdoor and field intermittent operation in various engineering projects.

FAQ:

1. Are you manufacturer or trading company?

We are manufacturer with our own factories.

2.What’s the warranty for products?

Usually for 1 year for major part, for example, motor, pump. We also offer online service supports.

3.What’s your MOQ?

Negotiate based on the circumstances. EXW term: 1pcs.

4. What’s your payment term?

100% TT under amount 5000USD, 30%TT as down payment, balance before loading when amount more than 5000USD.

5. What about deliver leading time?

About 15 working days

6. Where’s your factory?

Our factory located in Donglv industrial Area, belongs to Baoding city, near Capital Beijing. Convenient transportation. Our nearest port is Tianjin port.
