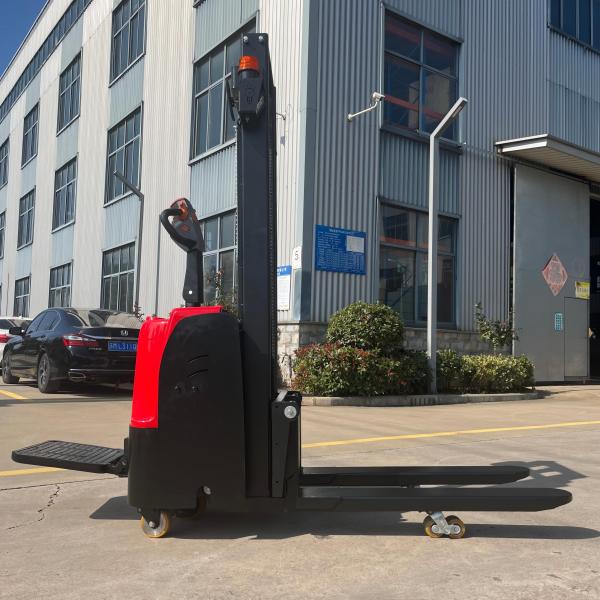

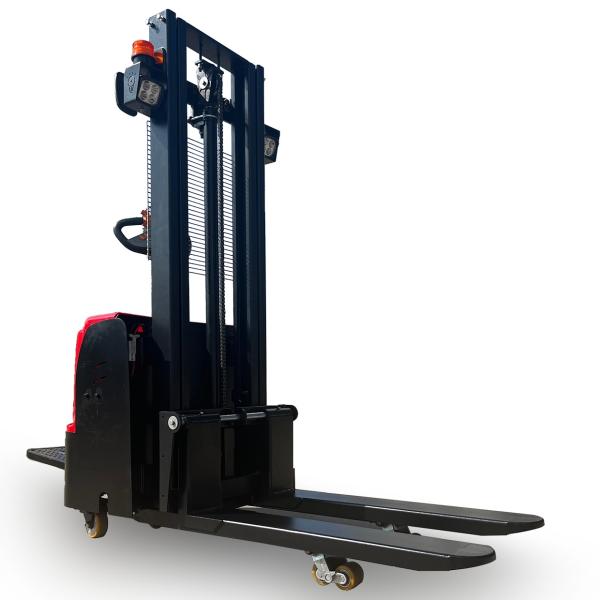

CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
KAD
MOQ :
1
Price :
$1,376.19
Load Capacity :
1500kg
Fork Length :
1220-1520mm
Fork Width :
160-180mm
Battery Capacity :
24v/80Ah
Weight :
600kg
Max Lifting Height :
2980mm
Lowest Mast :
2080mm
Overall Length :
2000mm
Overall Width :
855mm
Overall Height :
2080mm
Driving Speed :
4.5/5.5 km/h
Lifting Speed :
62/88 mm/s
Descending Speed :
94/70 mm/s
Driving Motor Power :
0.8 KW
Lifting Motor Power :
2.2 KW
Description
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift

Wholesale CE Certified 1.5ton 3m Electric Stand-On Forklift Truck with Double Lift Full Pallet Stacker New Mechanical Technology

The fully electric double-mast stacker is a cutting-edge logistics solution engineered to optimize warehouse efficiency. Its innovative dual lifting mechanism enables synchronized raising of the forks and platform, dramatically enhancing loading and stacking speed. Powered by a robust electric motor, it delivers seamless, accurate control and a tight turning radius—perfect for navigating narrow aisles. With a high-performance lead-acid battery, it ensures extended runtime while maintaining energy-efficient, low-upkeep operation. Ideal for warehouses, distribution hubs, or industrial settings, this stacker is the ultimate tool for intelligent, high-speed material handling.

MODEL
CDDA15
Features
Drive system
Electric
Features
Driving mode
Walking
Load Capacity
KG
1500
Load Center
MM
500
Axle centre to fork face
MM
700
Weight
Weight(With battery)
KG
610
Wheels
Material
PU
Driving wheel size
MM
Φ160*55
Load wheel size
MM
Φ80*70
Balance wheel size
MM
Φ125*50
Drive wheel. Number of balancing wheels/load-bearing wheels (x=driving wheels)
1x+2/4
Track width, load-bearing end
500
Track width, balance wheel end
575
Size
Max.Lifting Height
MM
2980
Lowest Mast
MM
2080
Max.height of gantry
MM
3455
Handle min/max height
MM
1110/1510
Min.Height of Fork
MM
90/185
Min.Height of support legs
80/ 175
Overall length
MM
2000(pedal retracted)
Vehicle length
MM
975
Overall width
MM
855
Overall Height
MM
2080
Size
Fork size
MM
65/180/1150
Wheelbase
MM
1165
Fork Outside Width
MM
680
Min.Ground clearance
MM
20
Aisle width with pallot 1000x 1200across forks
MM
2500
Aisle width with pallet800x 1200along forks
MM
2500
Min.Turning Radius
MM
1730
Performance
Driving Speed
（Empty/Full Load）
(km/h)
4.5/5.5
Lifting Speed
（Empty/Full Load）
MM/S
62/88
Descending Speed
（Empty/Full Load）
MM/S
94/70
Max.Gradient
（Empty/Full Load）
°
3/5
Brake
Electromagnetic
Driving Motor
KW
0. 8
Lifting Motor
KW
2.2
Battery
Capacity
V/Ah
48/32
Type of drive control
DC
Noise level
(dB(A)
≤70
Type of steering
Mechanical
Battery type
Lead acid battery
Charger
V/Ah
48/4.5
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift

Main Features

1.All-Electric & Eco-Friendly: Powered entirely by electricity, offering zero emissions and low noise, ideal for indoor and
environmentally sensitive environments.
2.Dual-Lift Efficiency: Dual lifting mechanism enhances stacking efficiency and supports multi-level racking operations.
3.Compact & Maneuverable Design: Slim body and walk-behind operation enable excellent maneuverability in narrow aisles and confined spaces.
4.Enhanced Safety: Equipped with an electromagnetic braking system and mechanical steering for stable, secure, and reliable handling.
5.User-Friendly Operation: Simple control system with ergonomic handle design ensures ease of use and reduces operator fatigue.
6.Reliable Power System: Features a lead-acid battery with stable performance and easy maintenance, ensuring long-lasting operation.

CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift

Machine Parts

Name: Control Handle
Brand: KAD
Domestic famous control handle,functional buttons, can control UP/DOWN, FORWARD/BACKWARD sensitively.


Operation panel

Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift

Machine Parts

Strong cylinder and chain make fork run smoothly.
1-stage,2-stage,3-stage mast can be selected.

Main Features

Side positioned drive system and strong caster, easy to manage stability.

CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift

Main Features

1.Double Lifting Design: Equipped with both mast and fork lifting mechanisms, enabling double pallet stacking for improved storage efficiency.
2.Electric Drive and Lifting System: High-performance electric motors ensure smooth and efficient driving and lifting operations, reducing operator fatigue.
3.Compact Body Structure: Designed for narrow aisle operations with a small turning radius, ideal for small warehouses and elevator access.
4.Reinforced Mast and Forks: Built with high-strength steel to ensure stability and safety during stacking operations.
5.Multiple Safety Features: Includes emergency brake, lift limit, creep speed button, and soft landing to ensure operator safety.
6.Smart Control System: Features battery indicator, fault self-diagnosis, and adjustable speed for enhanced convenience and maintenance.

CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
CE Certified 1.5 Ton Electric Stand-On Forklift Truck with Double Lift
Q1. What is your terms of packing? A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters. Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU. Q4. How about your delivery time? A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order. Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q6: How do you make our business long-term and good relationship? 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
