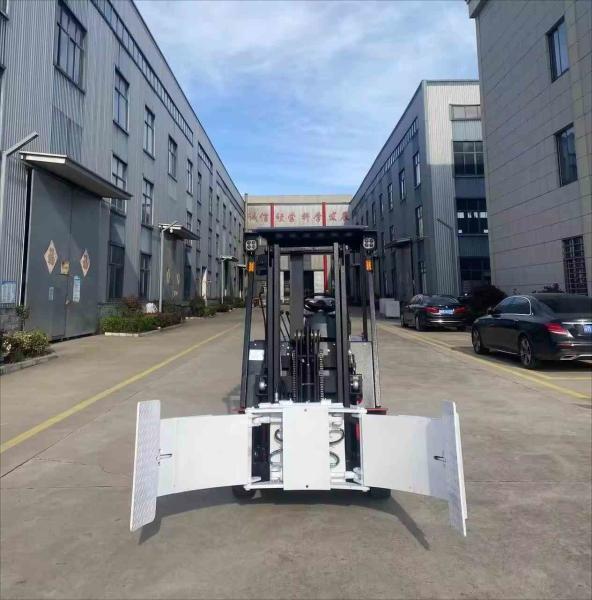

3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp
3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp
3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp
3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp
3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp
3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp
3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp
3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp
3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp
3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp
3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp
3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp
Specifications
Brand Name :
KAD
Model Number :
CPD2030
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
＄7100-＄7300 /unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50units/month
Delivery Time :
15 working days
Packaging Details :
Iron pallet+plastic film
Color :
Red/Customized
Product Name :
Electric Forklift
Load Center :
500mm
Load weight :
1500-3000kg
Load height :
3000mm
Tyres :
Solid core tire
Feature :
High Efficiency
Description
Product Description

3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll ClampThe 4-Wheel Electric Forklift Truck equipped with a 360-degree Paper Roll Clamp stands out for its exceptional versatility and precision. This advanced clamp allows for seamless handling of paper rolls and similar cylindrical loads, ensuring secure gripping and easy rotation to any angle. The electric power source ensures quiet, emission-free operation, making it ideal for sensitive environments. The four-wheel design offers superior stability and maneuverability, allowing for precise placement in tight spaces. Combined, these features enhance productivity, reduce damage to delicate materials, and improve workplace safety, making it a highly efficient and reliable solution for specialized material handling tasks.

3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp

3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp

3307ft 4409ft 4-Wheel Electric Forklift Truck With 360 degrees Paper Roll Clamp

Main Features

1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.
4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.

5.Thickened fork, thickened load bearing, not easy to deformation, thickened baking paint, not easy to fade.
6.Solid rubber tires, suitable for all kinds of ground, wear - resistant and good shock - absorbing effect.
7.The console is easy to operate and easy to understand.

Specification

Model
CPD1530
CPD2030
CPD3030
Load Capacity
kg
1500
2000
3000
Lifting Height
mm
3000
3000
3000
Load Center
mm
500
500
500
Fork size
mm
1070*100*40
1220*120*60
1220*120*60
Ground Clearance
mm
60/130
80/130
80/130
Tyre Type
solid Tyres
solid Tyres
solid Tyres
Control Way
Steering Wheel
Steering Wheel
Steering Wheel
Speed Regulation Way
Stepless Speed Regulation
Stepless Speed Regulation
Stepless Speed Regulation
Protection Guard Height
mm
2000
2100
2100
Mast Tilt Angle (Front/Rear)
(°)
3.0/6.0
3.0/6.0
3.0/6.0
The Min.Turning Radius
mm
1750
2100
2150
Driving Speed with Full Load
km/h
6
15
15
Maximum Gradient with full load
°
5°/8°
15
15
Battery
V/Ah
48/140
60/280
48/420
Driving Motor
kw
3
5
5
Lifting Motor
kw
3
5
5.5
Tyre Size (Front/ Rear)
mm
400/400
22x7-12/18x7-8
22x7-12/18x7-8
Overall dimensions(L*W*H)
mm
3000*1030*2100
3450*1100*2100
3750*1160*2100
Weight
kg
2200
3000
3800
Reference Working Time
h
4/6
4/6
4/6
Increased height each tonnage
mm
1600/2000/2500/3000/3500
Max height
mm
2100/1600/1850/2100/2350

Function of electric four-wheeled forklift with holding clamps

Electric four-wheeled ride-on fully automatic holding clip flip lift forklift can hold cloth rolls, paper rolls type, etc.. Battery all-electric clamping flip forklift can be automatic lifting, it can be 360 degrees rotating flip, left and right rotating clamping.

Clamping forklift truck it is in the traditional forklift upgraded and transformed, can be more convenient, efficient extraction of goods with cylinder, reduce the labor intensity of the staff.

Electric clamping forklift can quickly grab, carry and flip the workpiece, thus greatly improving the production efficiency. The forklift can precisely control the position and angle of the workpiece, thus improving the quality stability of the product.
