Specifications
Brand Name :
KAD
Model Number :
RD070BJ-15
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
$6000-$7000 /unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50units/month
Delivery Time :
15 working days
Packaging Details :
Iron pallet+plastic film
Color :
Green/Red/Yellow/Customized
Tire :
PU Wheel
Load Center :
500mm
Turning radius :
1520mm
Load weight :
500-1500kg
Load height :
1500-3000mm/customized
Battery Cpacity :
24V/210Ah
Feature :
High Efficiency
Description
Product Description

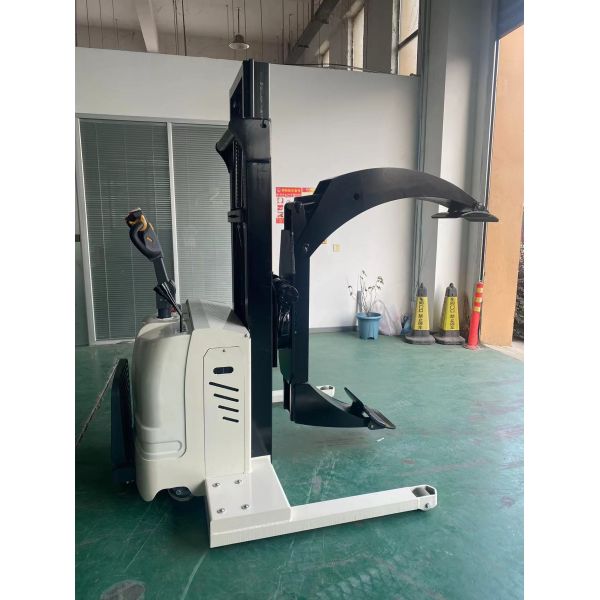

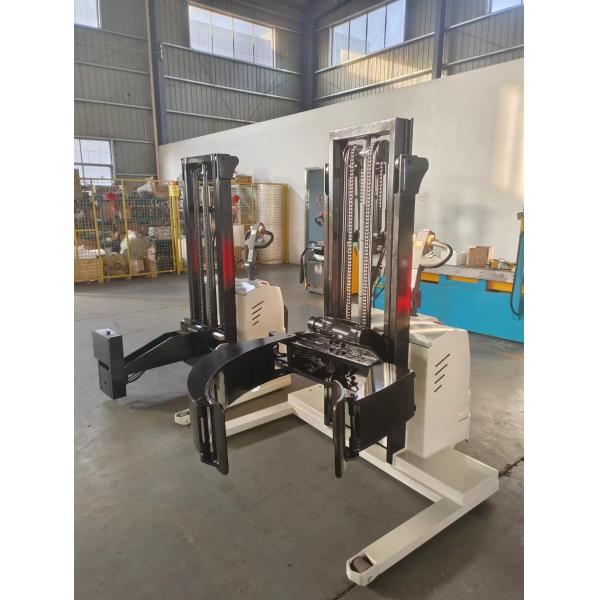

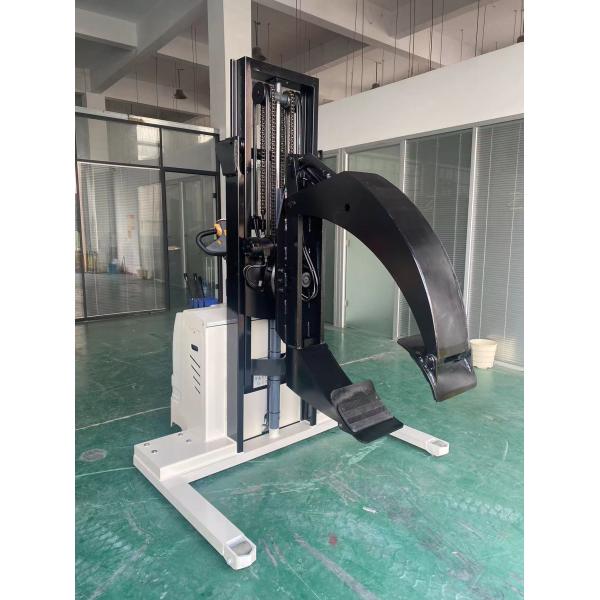

KAD Electric Paper Roll Clamping Stacker 500KG 1000 kg 0.5T 1T Paper Roll Reel Stacker with 360 Degree Rotation

Electric paper roll stackers are widely used in paper industry, packaging industry, printing industry, textile industry handling, suitable for paper tube, carpet, fabric, cable, wood, steel coil, rope, tyre, film rolls or all industries round shape warehouse workshop goods handling, shifting, stacking, electric turning and other work. Holding clip type: cylindrical, oil drum type, shaped, etc., the rotation mode for 90 degrees, 180 degrees and 360 degrees. With the help of the unique clamping, side shifting and rotating functions of the attachments, the goods can be transported, stacked, loaded or unloaded in a safer way, thus minimising the loss of goods.

KAD Electric Paper Roll Clamping Stacker 500KG 1000 Kg 0.5T 1T Paper Roll Reel Stacker With 360 Degree Rotation

KAD Electric Paper Roll Clamping Stacker 500KG 1000 Kg 0.5T 1T Paper Roll Reel Stacker With 360 Degree Rotation

KAD Electric Paper Roll Clamping Stacker 500KG 1000 Kg 0.5T 1T Paper Roll Reel Stacker With 360 Degree Rotation

Main Features

1.It is suitable for holding goods, rotating, raising and placing.

2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.

3.It can rotate 180 degrees or 360 degrees electrically.


4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.

Specification
Rated load
kg
500/1000/1500
Max height of clamp
mm
1500/3000/customized
Min height of clamp
mm
100
Load center
mm
500
Operation way
Electric moving, lifting, rotating, graping
Turning radius
mm
1520
Aisle width
mm
2500
Length
mm
1900
Width
mm
810
Height
mm
1900
Mast
1-stage/2 stage
Adjustable extent of clamp
mm
700-1200
Rotation angle
°
90/180/360
Running speed (load/unload)
km/h
4.3/4.5
Hoisting speed(load/unload)
mm/s
110/160
Descent speed(load/unload)
mm/s
150/130
Climbing capability
(load/unload)
%
5/8
Braking mode
Electronic brake
Tyres,material
Pu
Hydraulic motor
kw
2.5kw
Battery
v/ah
24/210Ah
Charger
v/a
24v/30
Weight
kg
1000

What are the common forklift attachments?
Paper roll clamp : adjustable short-arm type; fixed short-arm type paper roll clamp can stop the paper roll efficient, safe, non-destructive handling and stacking operations, and can be clamped on the continuation of the 360-degree rotation of the paper roll. Convenient for paper roll exchange operation. Commonly used in papermaking, carton, packaging, printing, port and other industries to stop all kinds of paper rolls without pallet handling and stacking.

General attachments: soft package clamps, multi-purpose flat clamps, carton clamps, barrel clamps, brick clamps, etc. The most representative of the general class clamps are soft package clamps, soft package clamps can be safe and efficient handling of all kinds of soft packages, such as cotton, textiles, wool, pulp, paper, hay, and industrial debris, such as soft packages of goods. Suitable for paper, textile, chemical fibre, waste paper recycling and other industries to stop all kinds of paper rolls without pallet handling and stacking.

Rotator :Rotator can be required to rotate or turn the container and items to stop the 360-degree speed flip, commonly used in food, chemical, sanitation, recycling, smelting and casting industries.

Pallet handling attachments: the side shifter is the most commonly used attachment in forklift trucks. The side shifter assists in lateral shift of the goods on the forks, which greatly improves the flexibility and efficiency of the forklift. It is suitable for all kinds of forklift operations.

Palletless handling attachments: carton clamps, pusher and puller, pusher and launcher are suitable for bagged goods such as fertiliser, feed, grain flour, salt and cement.

The above are more common forklift attachments and their respective roles are different, reasonable use can greatly enhance efficiency.
