400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
Specifications
Brand Name :
KAD
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
1299-1500
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50units/month
Delivery Time :
7work days
Packaging Details :
iron pallet +plastic film
Model Number :
GL600/800
Description

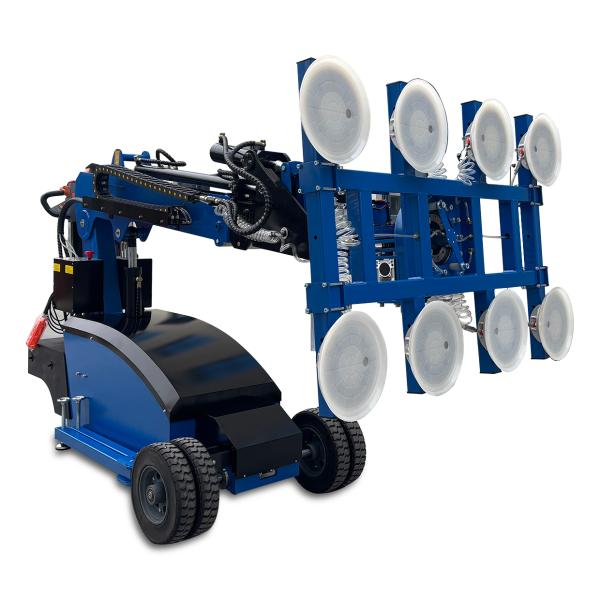

400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation

Our robotic glass lifter is designed to make heavy material handling simpler, safer, and more efficient. It is widely used for transporting and installing glass sheets, metal panels, wooden boards, stone slabs, and similar materials in construction and industrial projects. With advanced safety features such as a vacuum alarm, automatic braking, emergency stop button, charging protection, counterweights, and adjustable support legs, it ensures secure and stable operation. Also referred to as a vacuum glass lifter robot, glass handling machine, glazing robot, or electric suction lifter, it is a versatile solution for modern lifting needs.

advantage:
1.Front Axle driven, rough terrain wheels can walk on bad situation road.
2.Strong power, steady lifting and lowering
3.Dual Vacuum System. One for normal operation and the other as spare system

Click here to get latest price

400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation

If you have any questions for this Semi electric heavy-duty circular clamp ,please contact me as below,i will stand by 24 hours.Thanks

Model
/
GL600/800
Driving mode
/
Front Axle Drive
Max.Load
kg
600 /800
Rotating
°
Manual 360° (Automatic type for optional)
Turn to side
°
Manual 90° (Automatic type for optional)
Lifting Height
mm
3700 /4500/ 5000
Manipulation
/
Walkie Type
Power
/
Tractive-type Free Maintence Battery
Controling type
/
Stepless adjusting speed
Battery
V/Ah
2*12/120
Charger
V/A
24/18
Climbing gradient
%
15
Braking type
/
Electromagnetic braking
Driving Motor
V/W
24/2200 / 24/2500
Lifting Motor
V/W
24/2200
Packing Size
mm
2780*990*1750 / 3180*1100*1780
Packing Weight
kg
1850 / 2080
Front Wheel Size
mm
Φ466*195 (Pneumatic Tires)
Front Wheel Qty
pcs
2 ( 2+2 Dual wheel optional)
Rear Wheel Size
mm
Solid Φ400*100 ( Pneumatic tires for optional)
Rear Wheel Qty
pcs
2
Pads Size
mm
Φ300
Pads Qty
pcs
6/8

400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation400KG 800KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
