Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
Specifications
Certification :
CE/ISO9001
MOQ :
1
Price :
4323
Model NO. :
CDD1540
Load Capacity :
1-1.5t
Load Center :
500mm
Lift Height :
4000mm
Battery Capacity :
24V/210ah
Fork Size :
1220*100*40mm
Ground Clearance :
30mm
Turning Radius :
1500mm
Driving Speed :
4km/h
Gradient :
3°/5°
Driving Motor :
1.2KW
Lifting Motor :
2.2KW
Tyre Size :
300/250mm
Overall Size :
2170*1570*2100mm
Weight :
900kg
Description
Electric Pallet Stacker Hydraulic Loading 1500kg 4m Full Electric Stacker
Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
The full electric stacker is designed for efficient loading, stacking, and short-distance palletizing of goods. Featuring a simple structure with flexible operation and excellent micro-control, it offers high safety performance. Ideal for operations in narrow passages and confined spaces, this stacker can access ship cabins, carriages, and containers for palletized goods handling.
Product Specifications
Model CDD1030 CDD1530
Load Capacity 1000 kg 1500 kg
Lifting Height 3000 mm 3000 mm
Load Center 500 mm 500 mm
Fork Size 1220×100×40 mm 1220×100×40 mm
Ground Clearance 30 mm 30 mm
Pedal Length 410 mm 410 mm
Handler Height 1490 mm 1490 mm
Outer Distance Between Forks 685 mm 685 mm
Inner Distance Between Forks 345 mm 345 mm
Tyre type Polyurethane Polyurethane
Control Way Handler Handler
Speed Regulation Way Stepless Speed Regulation Stepless Speed Regulation
The Min. Turning Radius 1500 mm 1500 mm
Driving Speed with Full Loads 4 km/h 4 km/h
Gradient 3°/5° 3°/5°
Battery 24V/210A 24V/210A
Driving Motor 1.2 KW 1.2 KW
Lifting Motor 2.2 KW 2.2 KW
Tyre Size 300/250 mm 300/250 mm
Overall Size 2170×1570×2100 mm 2170×1570×2100 mm
Weight 900 kg 900 kg
Reference Working Time 6 h 6 h
Product Features

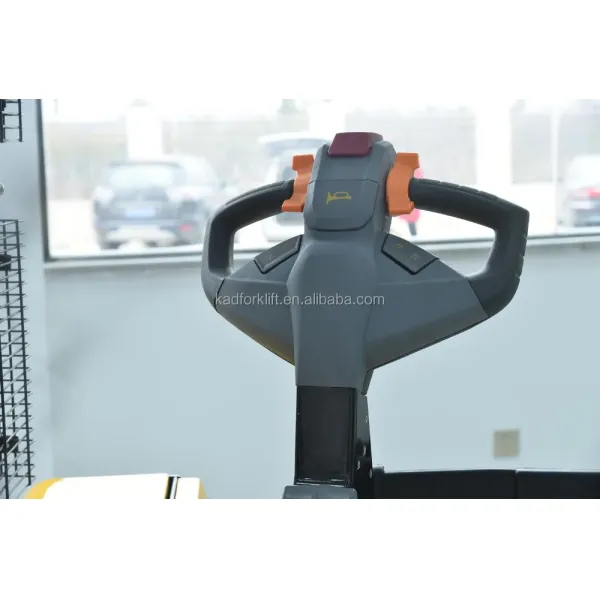

Control System
Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
Control Handle: KAD brand domestic famous control handle with functional buttons for sensitive UP/DOWN, FORWARD/BACKWARD control.

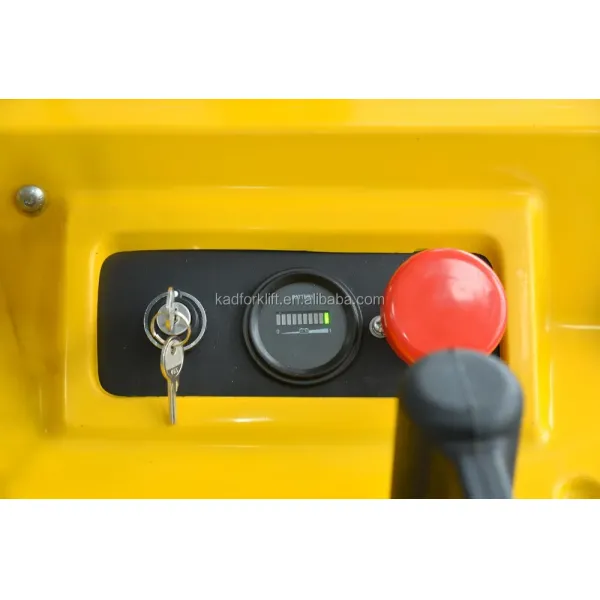

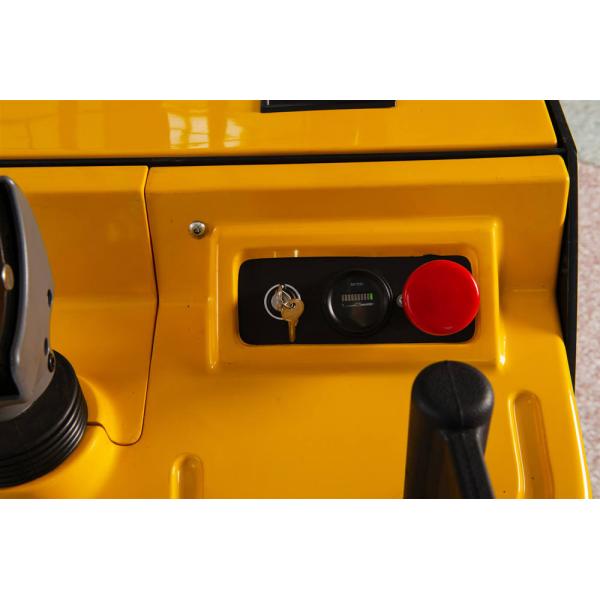

Operation Panel
Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
Combined with key, battery indicator, and emergency switch. Functional panel with beautiful design enhances operational efficiency.

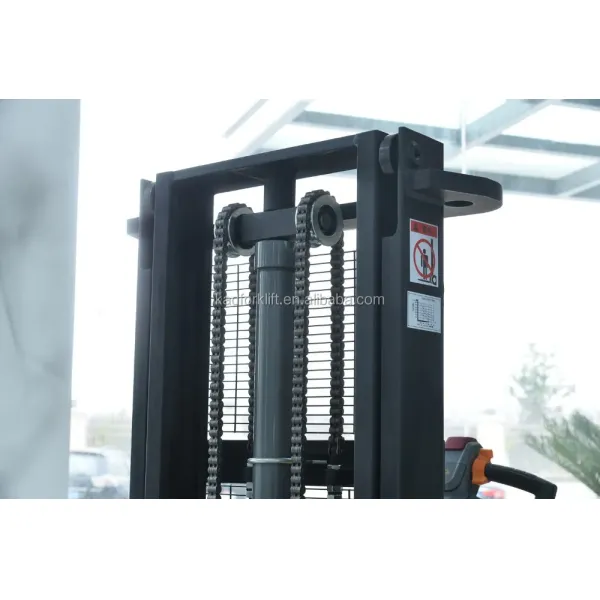

Hydraulic System
Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
Strong cylinder and chain system ensures smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options.

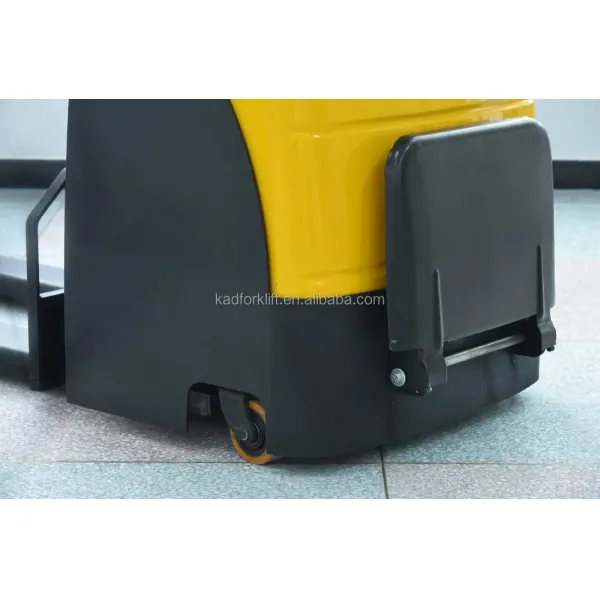

Drive System
Hydraulic Loading Electric Pallet Stacker with Compact Structure for Narrow Aisle Operation
Side-positioned drive system with strong caster wheels for enhanced stability and maneuverability.
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
