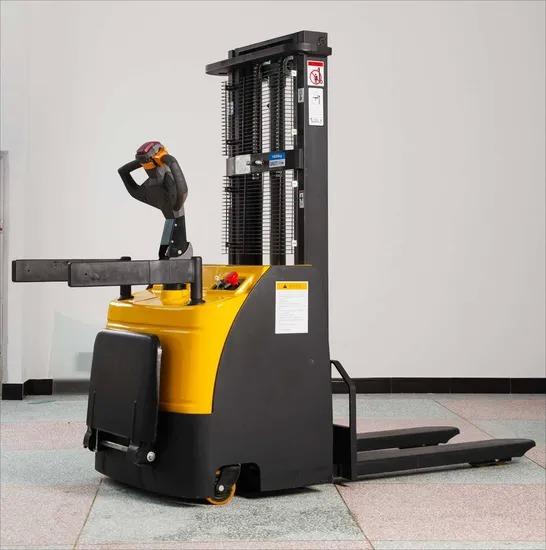

KAD Customized Electric Pallet Stacker with 850mm Fork Width 1738/2099mm Turning Radius and 500mm Load Center

Specifications

MOQ :

Price :

2885

Model NO. :

CDD1516

Load Capacity :

1-1.5t

Load Center :

500mm

Lift Height :

1600mm

Battery Capacity :

24V/210ah

Fork Width :

850mm

Turning Radius :

1738/2099mm

Fork Length :

1070mm

Gross Weight :

1000.000kg

Driving Motor :

1.2KW

Lifting Motor :

2.2KW

Tyre Type :

Polyurethane

Driving Speed :

4km/h

Overall Size :

2170*1570*2100mm

Ground Clearance :

30mm

Description

KAD Customized Leg Forklift 1600mm Electric Pallet Stacker

Full electric stackers are used for loading, stacking, stacking, and short distance palletizing of goods. Simple structure, flexible operation, good micro operability, and high safety performance. Suitable for operations in narrow passages and limited spaces, it can enter ship cabins, carriages, and containers for loading, unloading, stacking, and handling of pallet goods.

Model		CDD1030	CDD1530
Load Capacity	kg	1000	1500
Lifting Height	mm	3000	3000
Load Center	mm	500	500
Fork Size	mm	122010040	122010040
Ground Clearance	mm	30	30
Pedal Length	mm	410	410
Handler Height	mm	1490	1490
Outer Distance Between Forks	mm	685	685
Inner Distance Between Forks	mm	345	345
Tyre type		Polyurethane	Polyurethane
Control Way		Handler	Handler
Speed Regulation Way		Stepless Speed Regulation	Stepless Speed Regulation
The Min. Turning Radius	mm	1500	1500
Driving Speed with Full Loads	km/h	4	4
Gradient	°	3°/5°	3°/5°
Battery	V/Ah	24V/210A	24V/210A
Driving Motor	KW	1.2	1.2
Lifting Motor	KW	2.2	2.2
Tyre Size	mm	300/250	300/250
Overall Size	mm	217015702100	217015702100
Weight	kg	900	900
Reference Working Time	h	6	6
Increased height each tonnage	mm	1600/2000/2500/3000/3500	1600/2000/2500/3000/3500
Max height	mm	2100/1600/1850/2100/2350	2100/1600/1850/2100/2350

Machine Parts

Name: Control Handle
Brand: KAD
Domestic famous control handle,functional buttons, can control UP/DOWN, FORWARD/BACKWARD sensitively.

Operation panel

Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.

Machine Parts

Strong cylinder and chain make fork run smoothly.
1-stage,2-stage,3-stage mast can be selected.

Main Features

Side positioned drive system and strong caster, easy to manage stability.
