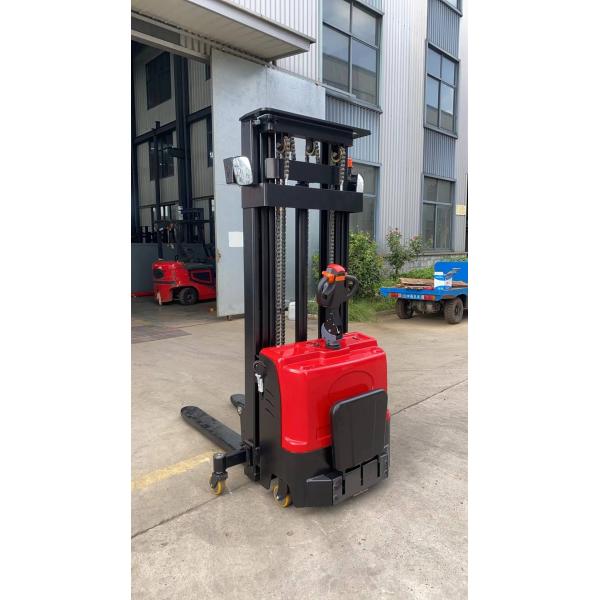

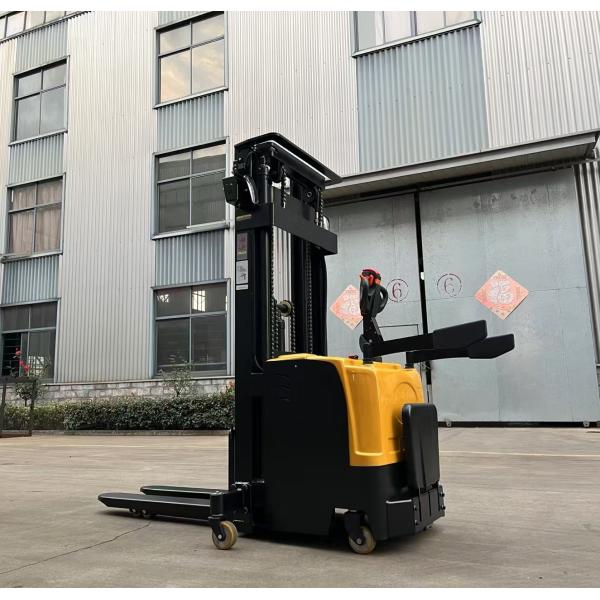

1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork
1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork
1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork
1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork
1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork
1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork
1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork
1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork
Specifications
Place of Origin :
Jiangsu, China, CN;JIA
Brand Name :
KAD
MOQ :
10
Price :
$500
Fork Length :
1070mm
Fork Width :
550/680mm
Drive Type :
FWD
Tire Type :
PU Wheel
Load Center :
500mm
Turning Radius :
1738/2099mm
Weight :
550kg
Overall Dimensions :
2130(L)*850(w)*2080mm(h)
Battery :
24V/80Ah
Power Source :
DC MOTOR
Load Capacity :
1 ton
Lifting Height :
1600mm
Ground Clearance :
130mm
Driving Speed :
4km/h
Gradient :
10°
Description
KAD Full Electric Platform Pedal Ride on Stacker 1ton 1.5ton 2ton 3m 4.5m Europe/US Pallet Standard with Compact Design
Product Overview
Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure and flexible operation, they offer excellent micro-operability and high safety performance. Ideal for operations in narrow passages and limited spaces, these stackers can enter ship cabins, carriages, and containers for efficient loading, unloading, and handling of palletized goods.
1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork 1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork 1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork 1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork
Key Features
  • AC drive motor with no carbon brushes for maintenance-free operation and reduced costs
  • Vertical drive motor design for easier inspection and superior performance compared to horizontal motors
  • Integrated micro-switches for simple replacement
  • Easy-access battery cover for convenient maintenance
  • Display with hour meter and battery status indicator for timely charging
  • Controller self-diagnosis system for easier troubleshooting
  • Side-positioned drive system for stability
  • Strong caster wheels for durability
Technical Specifications
Attribute Value
Condition New
Fork Length 1070mm
Fork Width 550/680mm
Drive Type FWD
Applicable Industries Hotels, garment shops, building material shops, manufacturing plants, food & beverage factories, farms, restaurants, retail, and more
Terrain Adaptability Indoor flooring, outdoor pavement
Type Powered Pallet Truck, Stacker Forklift
Color Green/Red/Yellow/Customized
Tire PU Wheel
Load Center 500mm
Turning Radius 1738/2099mm
Warranty 1 Year
Weight 550kg
Overall Dimensions 2130(L)*850(W)*2080mm(H)
Battery 24V/80Ah
Power Source DC Motor
Load Capacity 1 ton
Model Specifications
Model CDD1030 CDD1530
Load Capacity (kg) 1000 1500
Lifting Height (mm) 1600 1600
Load Center (mm) 500 500
Fork Size (mm) 1220*100*40 1220*100*40
Ground Clearance (mm) 130 130
Driving Speed with Full Loads (km/h) 4 4
Battery (V/Ah) 24V/80A 24V/80A
Overall Size (mm) 2170*1570*2100 2170*1570*2100
Weight (kg) 900 900
Reference Working Time (h) 6 6
Machine Components
Control Handle
Features a sensitive control system for precise operation of lifting and movement functions.
Operation Panel
Combined with key controls, battery indicator, and emergency switch for intuitive operation and safety.
1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork 1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork
Lifting Mechanism
Features strong cylinder and chain system for smooth fork operation with optional 1-stage, 2-stage, or 3-stage mast configurations.
1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork
Frequently Asked Questions
Q: What is your terms of packing?
A: Generally, we pack our goods in paper package and iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q: How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods before delivery?
A: Yes, we perform 100% testing before delivery.
