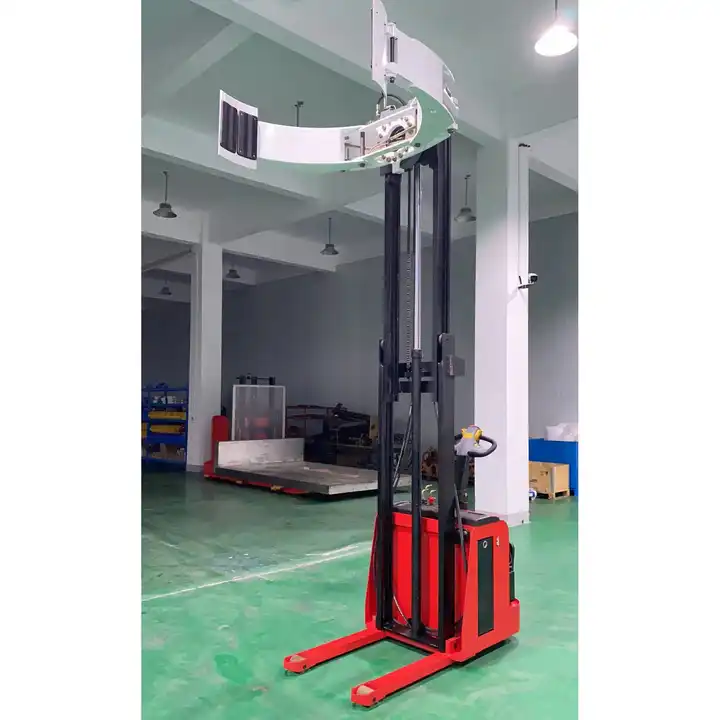

1.5 Ton 3 Meter Capacity Electric Pallet Jack Stacker With Reel Clamps
1.5 Ton 3 Meter Capacity Electric Pallet Jack Stacker With Reel Clamps
1.5 Ton 3 Meter Capacity Electric Pallet Jack Stacker With Reel Clamps
1.5 Ton 3 Meter Capacity Electric Pallet Jack Stacker With Reel Clamps
1.5 Ton 3 Meter Capacity Electric Pallet Jack Stacker With Reel Clamps
1.5 Ton 3 Meter Capacity Electric Pallet Jack Stacker With Reel Clamps
1.5 Ton 3 Meter Capacity Electric Pallet Jack Stacker With Reel Clamps
1.5 Ton 3 Meter Capacity Electric Pallet Jack Stacker With Reel Clamps
1.5 Ton 3 Meter Capacity Electric Pallet Jack Stacker With Reel Clamps
1.5 Ton 3 Meter Capacity Electric Pallet Jack Stacker With Reel Clamps
Specifications
Brand Name :
KAD
Model Number :
RD070BJ-15
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
＄7300-＄7500 /unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50units/month
Delivery Time :
15 working days
Packaging Details :
Iron pallet+plastic film
Color :
Green/Red/Yellow/Customized
Tire :
PU Wheel
Load Center :
500mm
Turning radius :
1520mm
Load weight :
500-1500kg
Load height :
1500-3000mm/customized
Battery Cpacity :
24V/210Ah
Feature :
High Efficiency
Description
Product Description

Electric paper roll trucks are widely used in paper industry, packaging industry, printing industry, textile industry handling, suitable for paper tube, carpet, fabric, cable, wood, steel coil, rope, tyre, film rolls or all industries round shape warehouse workshop goods handling, shifting, stacking, electric turning and other work. Holding clip type: cylindrical, oil drum type, shaped, etc., the rotation mode for 90 degrees, 180 degrees and 360 degrees. With the help of the unique clamping, side shifting and rotating functions of the attachments, the goods can be transported, stacked, loaded or unloaded in a safer way, thus minimising the loss of goods.

1.5 Ton 3 Meter Capacity Electric Pallet Jack Stacker With Reel Clamps

1.5 Ton 3 Meter Capacity Electric Pallet Jack Stacker With Reel Clamps

Main Features

1.It is suitable for holding goods, rotating, raising and placing.

2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.

3.It can rotate 180 degrees or 360 degrees electrically.


4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.

Specification
Rated load
kg
500/1000/1500
Max height of clamp
mm
1500/3000/customized
Min height of clamp
mm
100
Load center
mm
500
Operation way
Electric moving, lifting, rotating, graping
Turning radius
mm
1520
Aisle width
mm
2500
Length
mm
1900
Width
mm
810
Height
mm
1900
Mast
1-stage/2 stage
Adjustable extent of clamp
mm
700-1200
Rotation angle
°
90/180/360
Running speed (load/unload)
km/h
4.3/4.5
Hoisting speed(load/unload)
mm/s
110/160
Descent speed(load/unload)
mm/s
150/130
Climbing capability
(load/unload)
%
5/8
Braking mode
Electronic brake
Tyres,material
Pu
Hydraulic motor
kw
2.5kw
Battery
v/ah
24/210Ah
Charger
v/a
24v/30
Weight
kg
1000

The reason why many factories choose electric clamping stacker

1.Improve production efficiency:The electric clamping stacker can quickly grab, carry and flip the workpiece, thus greatly improving the production efficiency.

2.Reduce the labor intensity of workers: Electric clamping and holding stacker can replace the workers to carry out repetitive and tedious actions, which reduces the labor intensity of workers.

3.Small electric clamping bag stacker 0.5 tons and below is suitable for paper rolls, cotton rolls, cloth rolls, package materials and other industries. Of course the electric clamping stacker also has 1 ton 2 tons 3 tons to choose from. Due to the wide range of applications, electric clamping forklifts can meet the needs of more users.
