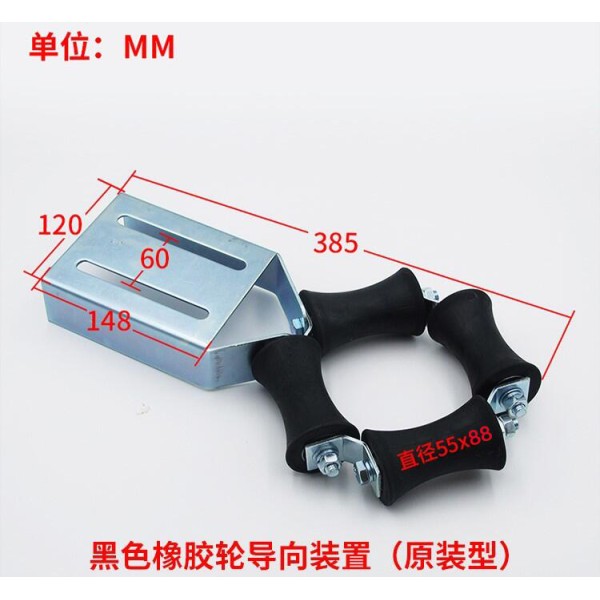

Elevator Spare Parts 55*88 Elevator Compensation Chain Guiding Device

Detailed Description of Elevator Compensation Chain Guide Device

Also named compensation chain anti-swing guide, this device is an essential accessory for elevator balance compensation systems, mounted on the pit buffer base or hoistway wall. The compensation chain runs vertically through the roller passage of the guide, widely applied in high-rise, high-speed and heavy-load elevators to restrain chain swinging.

Structure & Material

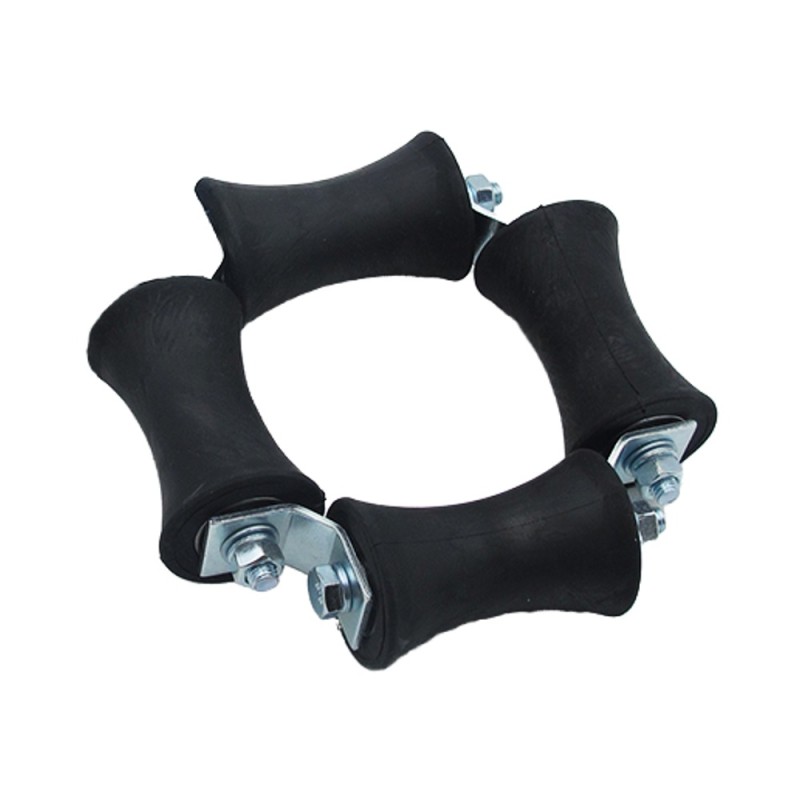

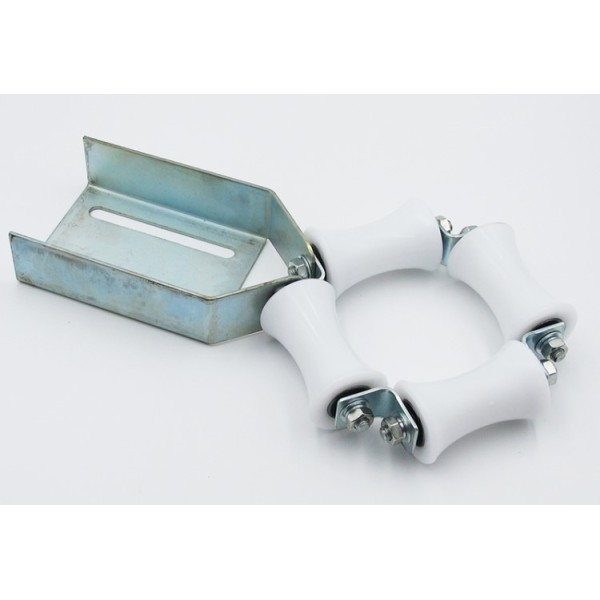

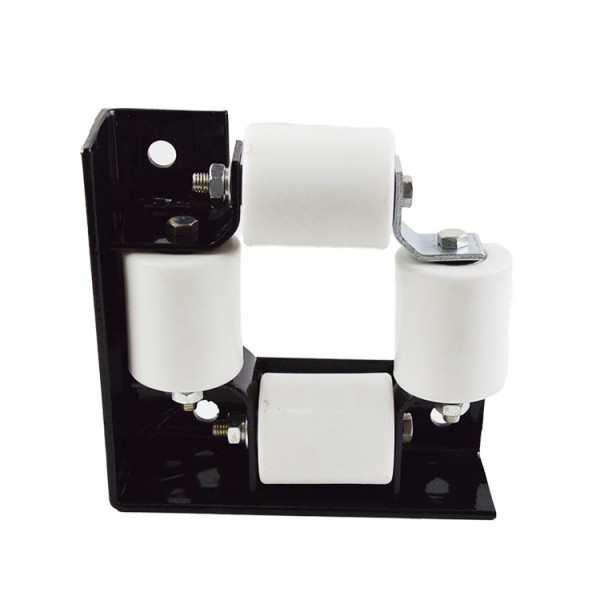

It consists of painted galvanized steel mounting bracket with adjustable slotted holes and a set of guide rollers. Rollers are available in glass-filled PA66 nylon (standard general use), PU polyurethane (silent premium type) and solid steel (heavy-duty freight elevator use). Each roller is fitted with sealed pre-greased deep groove ball bearing for maintenance-free operation. Main types include 4-wheel enclosing type, double-row 2-wheel type and single-wheel type for different installation spaces.

Core Functions

1. Limit the swinging range of compensation chain and keep vertical operation;
2. Prevent chain tangling with pit components and scratching abrasion;
3. Reduce running collision noise and vibration;
4. Extend the service life of compensation chain by avoiding fatigue bending.

Product Advantages

Corrosion-resistant steel frame adapts to -30℃~+65℃ hoistway environment. Universally compatible with all mainstream elevator brands and all types of plastic-coated/rope-wrapped/rubber-enclosed compensation chains. Customizable roller spacing and dimensions on request.

Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.

1, Many specifications

2, good quality

3, reasonable prices

4, thoughtful service

Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.
