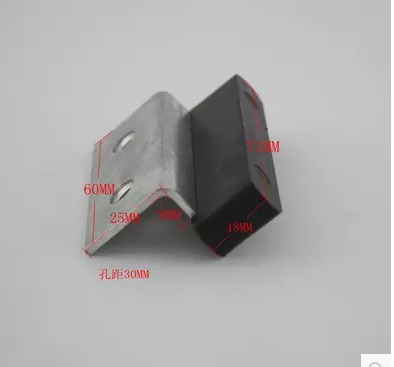

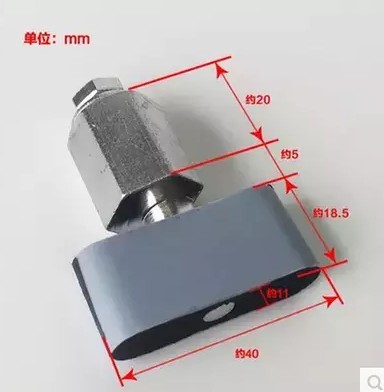

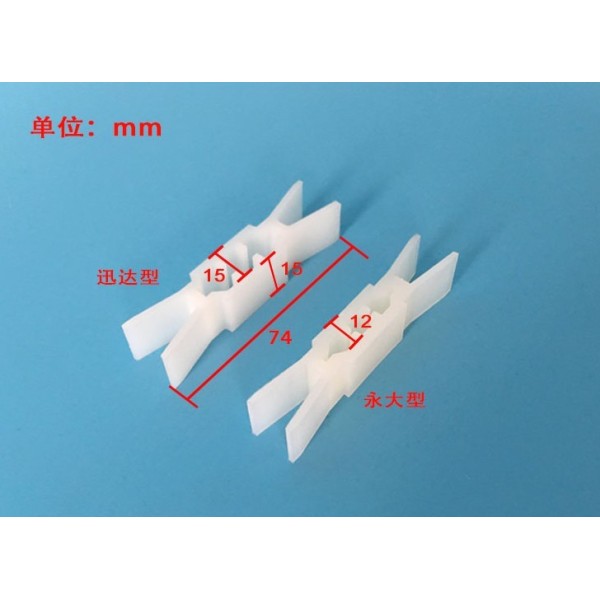

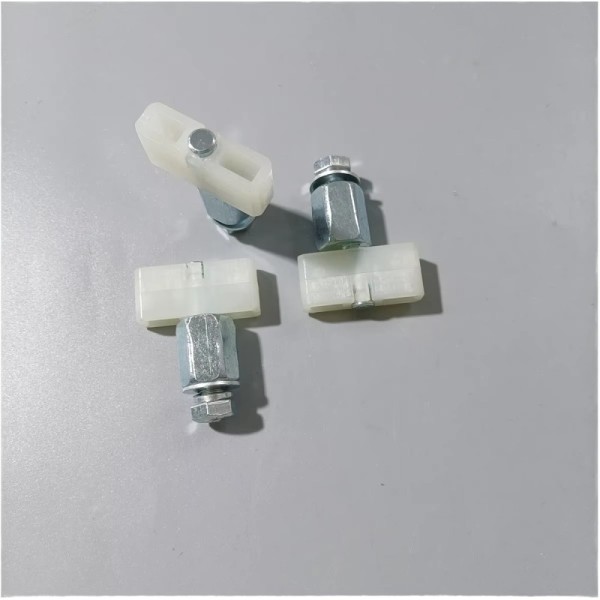

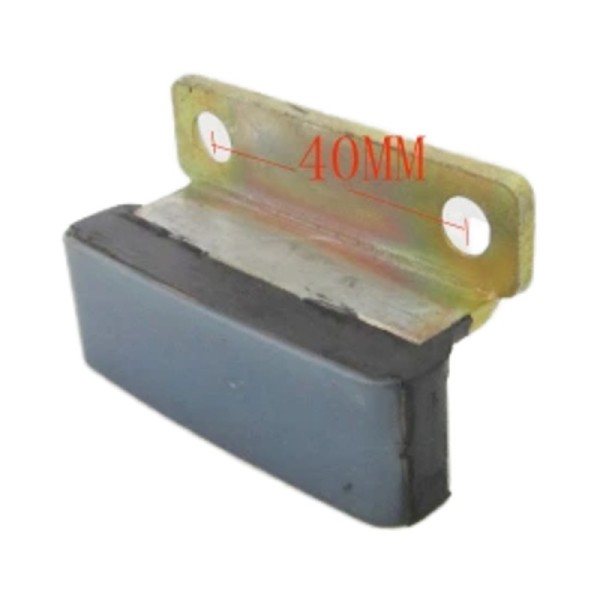

Elevator Door Slider Elevator Slider

Detailed Description of Elevator Door Slider

Also known as door shoe or door guide shoe, the elevator door slider is a wearable core component installed at the bottom of elevator car doors and landing doors. It slides inside the sill groove and works with the top door hang roller to control the door moving track.

Constructed as an integrated molded part with sliding body and mounting fastener, it is available in UHMWPE, glass-filled nylon, PU and rubber materials for diverse working conditions. UHMWPE type is the standard OEM choice for high-frequency passenger elevators featuring self-lubrication and high wear resistance; nylon version suits dusty freight elevators.

Main Functions

1. Provide bottom guiding and positioning to prevent door swaying and derailment;
2. Bear lateral force to avoid door tipping for safety protection;
3. Reduce friction and noise, and protect the metal sill from scratch damage.

It operates stably at -20℃ to +60℃, compatible with Otis, Kone, Mitsubishi and other mainstream elevator brands for direct replacement, maintenance-free and easy to install.

Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.

1, Many specifications

2, good quality

3, reasonable prices

4, thoughtful service

Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.

PS:1.This tariff preference is based on the US CBP Announcement No. * * *, and the final tax rate is subject to actual customs clearance.

2. If the tariff will be adjusted after the window period, unfinished orders can negotiate price adjustments or free cancellation.
