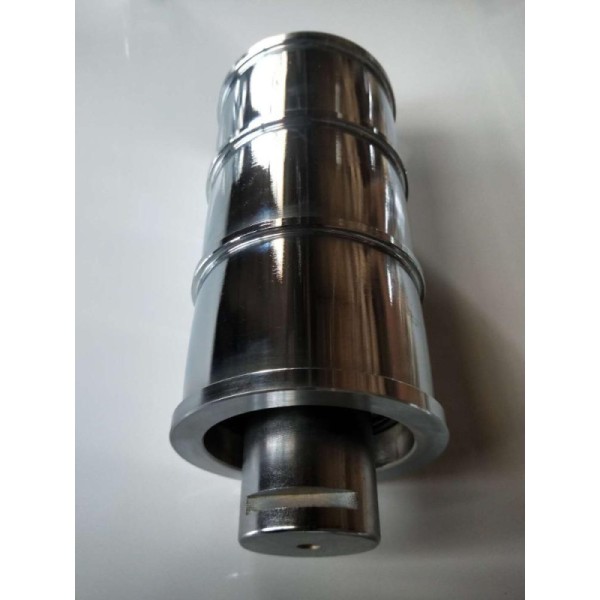

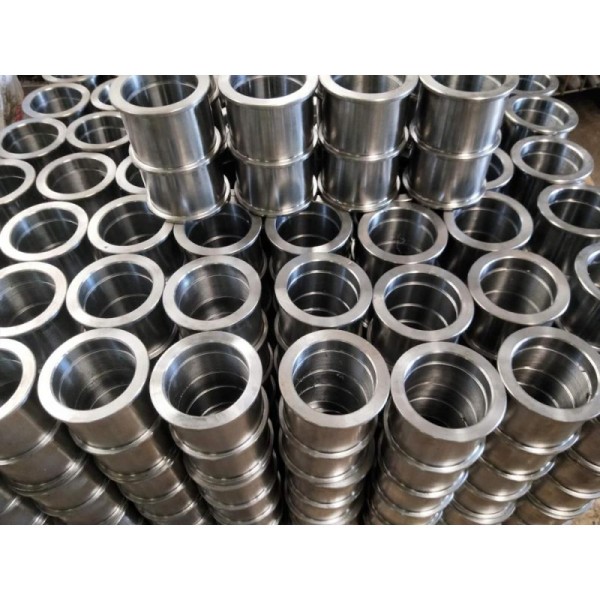

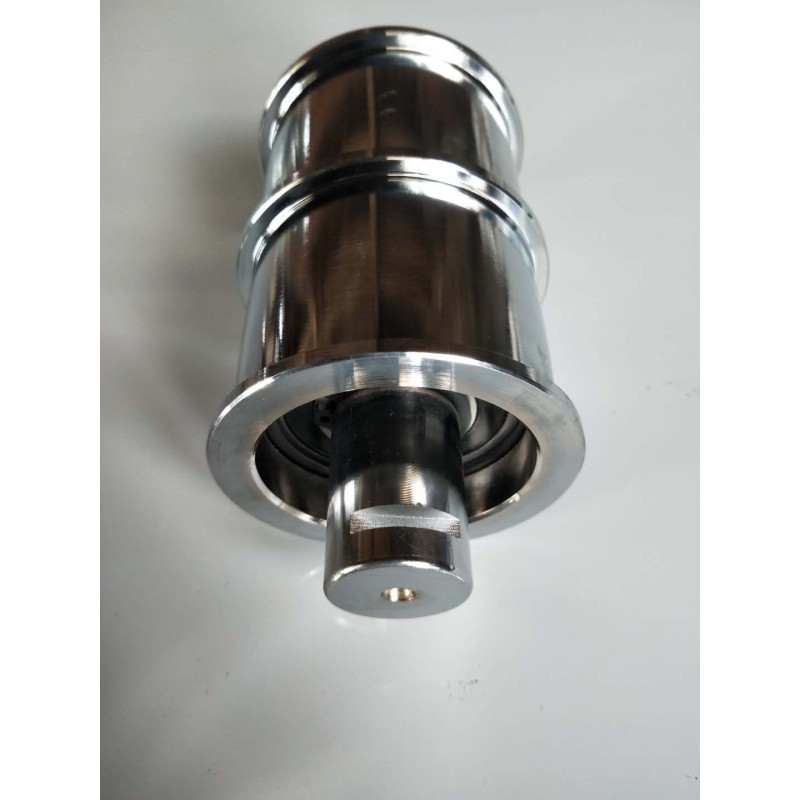

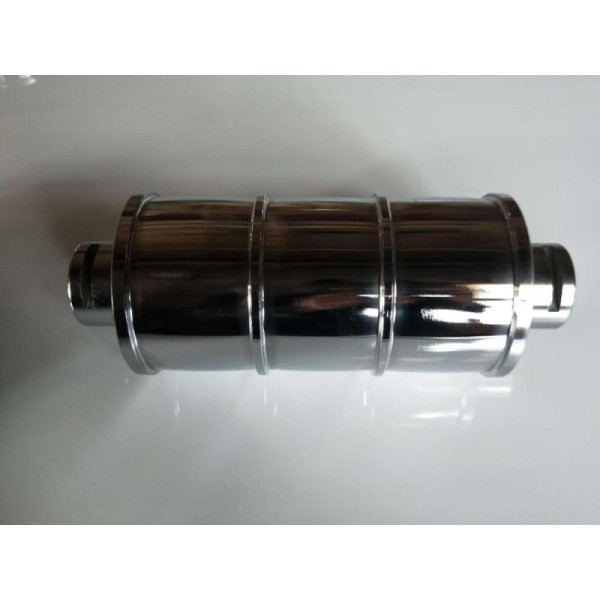

Elevator Steel Belt Traction Pulley Guide Wheel Deflector Sheave (Customizable)

Product Overview

The steel belt deflector sheave is specifically designed for steel belt traction elevators. It changes the direction of belt force and increases the wrap angle, ensuring smooth belt operation. Manufactured from high-quality steel or cast iron, it can be customized in terms of dimensions, groove profile, and surface treatment according to customer requirements.

Key Features

· Steel Belt Specific Design: Smooth surface and groove profile perfectly match the belt structure, reducing friction and uneven wear while extending belt life.

· High Strength & Durability: Rigid material with high impact resistance, capable of withstanding repeated tension and dynamic loads during elevator operation.

· Precision Machining: Grooves are CNC-machined with tight tolerances, ensuring stable, vibration-free operation.

· Flexible Customization: Diameter, width, groove profile, material, and surface coating can all be customized based on drawings or application requirements.

· Optional Noise Reduction: Some models can be fitted with a polyurethane coating or composite noise-reducing structure for silent operation requirements.

Specifications (Customizable)

· Diameter range: Φ200–800mm (or as required)

· Applicable belt width: matches steel belt model

· Groove types: Flat groove / V-groove / Groove with positioning slot

· Materials: High-quality cast iron / steel / engineering plastic (for light loads)

· Bearing configuration: Sealed deep-groove ball bearings or heavy-duty bearings

Applications

Suitable for steel belt traction residential elevators, home lifts, machine-room-less (MRL) elevators, and elevator addition projects in old buildings.

Customization Services

Custom manufacturing based on drawings or samples is supported. Load calculation, groove profile optimization, and installation guidance services are available. Please provide technical requirements or application scenarios, and we will recommend the optimal solution.

Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.

1, Many specifications

2, good quality

3, reasonable prices

4, thoughtful service

Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.

PS:1.This tariff preference is based on the US CBP Announcement No. * * *, and the final tax rate is subject to actual customs clearance.

2. If the tariff will be adjusted after the window period, unfinished orders can negotiate price adjustments or free cancellation.

Customize elevator pulley, guide wheel, anti sheave,Can be produced according to your drawings.
