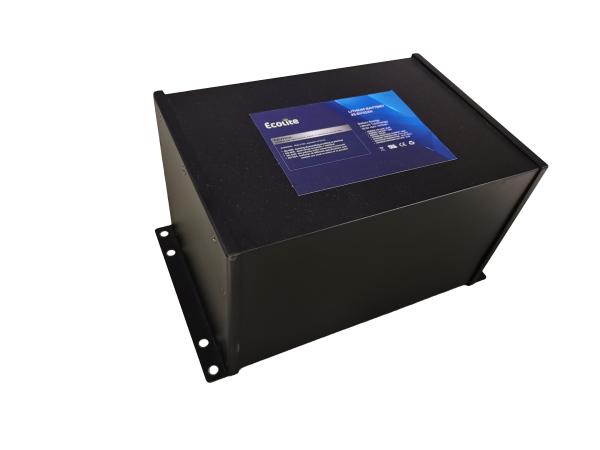

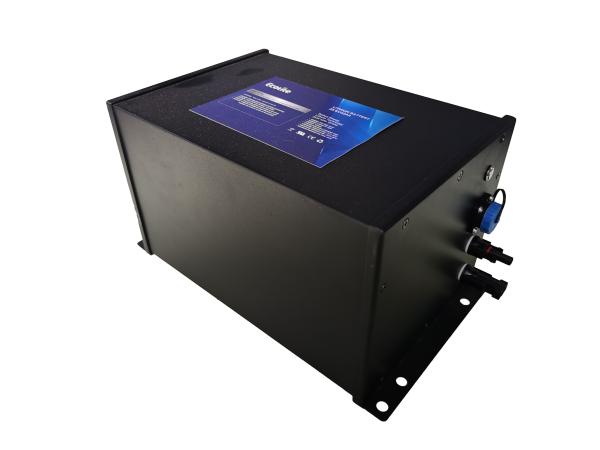

Maintenance Free E24-40 Solar Street Light LiFePo4 Battery Pack 25.6V 42Ah With BMS
Maintenance Free E24-40 Solar Street Light LiFePo4 Battery Pack 25.6V 42Ah With BMS
Maintenance Free E24-40 Solar Street Light LiFePo4 Battery Pack 25.6V 42Ah With BMS
Maintenance Free E24-40 Solar Street Light LiFePo4 Battery Pack 25.6V 42Ah With BMS
Specifications
Brand Name :
Ecolite/ECOLTO/OEM/ODM
Model Number :
E24-40
Certification :
UN38.3 MSDS CE
Place of Origin :
China
MOQ :
10Units
Price :
Inquiry
Payment Terms :
L/C, T/T
Supply Ability :
4000 Units per month
Delivery Time :
1 months
Packaging Details :
Carton Pallet Container
Voltage :
25.6V
Capacity :
42Ah
Energy :
1075.2Wh
Resistance :
≤30mΩ
Efficiency :
＞98%
Cycle Life（1C，80%DOD,25℃） :
＞2000cycle @1C，80%DOD
Self Discharge :
＜5% per Month
Dimension(W×D×H) :
336×204×179mm
Weight :
12.5kg
Housing Protection :
IP65
Description

Maintenance Free E24-40 Solar Street Light LiFePo4 Battery Pack 25.6V 42Ah With BMS

PRDOCUT INTRODUCTION
E24-40 is your best power choice for energy storage system of solar street light. This series battery is specifically designed for solar street light application, which has more than 10 years service life; this series batteries are the best choice for the durable, safe, environment-friendly energy solution and they can be customized according to your requirement, such as dimension, voltage, capacity of battery. With an increased lifespan, this battery can save you much cost against frequent battery replacement. The working life of this series lithium battery especially under the outdoor high temperature environment is five times longer than the traditional lead acid battery.
FEATURES

The EcoLite E24-40 (25.6V 42Ah) lithium battery adopts Lithium Iron Phosphate (LiFePO4) chemistry, recognized as the safest lithium technology, and is equipped with an integrated Battery Management System (BMS) for enhanced safety and performance.

PERFORMANCE
  • Long Cycle Life: Over 2000 cycles at 80% Depth of Discharge (DOD) .
  • High Performance Metrics: Features high energy density and high discharge current, with a continuous discharge current of 40A and pulse discharge current of 60A (for less than 10 seconds) .
  • Wide Temperature Adaptability: Operates in a discharge temperature range of -20°C to 60°C and a charge temperature range of 0°C to 55°C .
  • Convenient and Efficient: Lightweight, maintenance-free, and supports fast charging .
  • Eco-friendly: Designed to be environmentally friendly .

BATTERY DATA SHEET

Electrical Parameters

 Mechanical Parameters
Nominal Voltage
25.6V
 Dimension(L×W×H) 336x204x179mm
Rated Capacity 42Ah 13.23x 8.03x 7.05"
Energy 1075.2Wh Weight 12.5kg
Resistance ≤30mΩ Terminal Type MC4,SP1712/S4
Efficiency ≥98% Battery Housing SPCC
Cycle Life >2000cycles @1C,80% DOD Housing Protection IP65
Self Discharge ＜ 5% per Month Cell Type-Chemistry LiFePO4 Cell
Max. Cell in Series/Parallel 8S/6P Communication /
Discharge Parameters Charge Parameters
Continuous Discharge Current 40A Charge Method CC-CV
Pulse Discharge Current 60A (<10S) Charge Voltage 28.4~29.2V
CCA(Tested by DY-2015) 1200CCA Recommended Float Voltage
27~28V
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 10V Recommended Charge Current 15A
Reconnect Voltage 10.4V Maximum Charge Current 40A
Short Circuit Protection 200-800us BMS Charge Cut-off Voltage 30V
Temperature Parameters

Discharge Temperature -20 ℃ to 60 ℃
Charge Temperature 0 ℃to 55 ℃
Storage Temperature -20 ℃ to 60 ℃
BMS High Temperature Cut-off 65 ℃

Why Select Our 25.6V 42Ah Solar Street Light Battery?​
Reliability: Engineered for round-the-clock outdoor operation, it comes with built-in protection against overcharge, overdischarge, and short circuits, ensuring long-term dependability.​
Adaptability: Its customizable configurations can fit a wide range of solar street light designs and energy requirements, providing versatile solutions for different projects.​
Performance Assurance: Rigorously tested for vibration, shock, and thermal cycling, this battery guarantees durability in harsh conditions, delivering consistent performance wherever it’s installed.

APPLICATION

Ideal for:

Municipal solar street lighting projects
Rural electrification initiatives
Off-grid infrastructure
Commercial and industrial outdoor lighting

WHY CHOOSE ECOLITE

Innovation: Over 10 years of expertise in renewable energy storage.

Quality Assurance: UN 38.3,ISO 9001...:certified production processes and rigorous quality testing.

Sustainability: Environmentally friendly materials and RoHS-compliant manufacturing.
