Specifications
Brand Name :
Ecolite/OEM/ODM
Model Number :
SLIMLINE12-110
Certification :
UN38.3 MSDS CE
Place of Origin :
China
MOQ :
50
Price :
Inquiry
Payment Terms :
L/C,T/T
Supply Ability :
5000 Units per month
Delivery Time :
1-2 months
Packaging Details :
Carton Pallet Container
Cell Type-Chemistry :
LiFePO4 Cell
Nominal Voltage :
12.8V
Rated Capacity :
110Ah
Energy :
1408Wh
Resistance :
≤20mΩ
Efficiency :
≥0.98
Cycle Life(25℃,0.5C/0.5C,100%DOD) :
>4000cycles @0.5C,80% DOD
OEM/ODM :
Accpted
Communication :
Bluetooth
Dimension(LxWxH) :
615x445x60mm
Weight :
11kg
Maximum Charge Current :
150A
Discharge Temperature :
-30℃ to 65℃
Charge Temperature :
0℃ to 65℃
Description

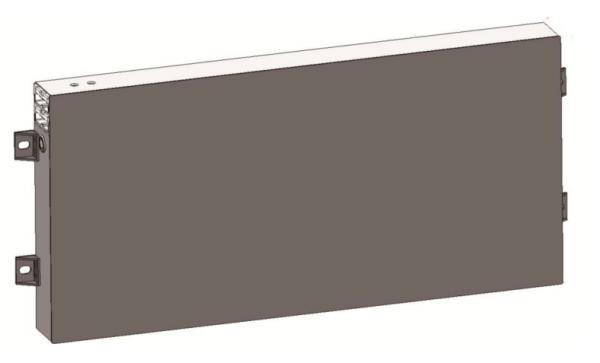

12.8V 110Ah 1408Wh RV Lithium Battery Pack 12V.8 Super Thin Slimline Battery For Pickup
The new and improved SLIMLINE12-110Ah Super Slim Lithium Battery with Bluetooth is small but packs a punch! Measuring at only 50mm wide and weighing in at 11kg, the ECOLITE has been designed to be the ultimate Super Slim battery those with small spaces but wanting maximum power in their Utes, 4WD's and Canopies.
With a 100% useable capacity, you are able to draw the full 100Ah from the battery. The Slimline12-110 features the latest in prismatic cell technology allowing for its small form factor and lightweight nature. Prismatic cells are thin in profile, deliver higher discharge, have a longer life expectancy, are extraordinarily light and utilise a more effective use of space.

PERFORMANCE:
Long-lasting Cycles:
Over 4000 charge-discharge cycles (80% capacity retention @25℃, 0.5C/0.5C, 100% DOD) for years of reliable use.
High-Efficiency Power:Boasts high energy density and robust discharge current to handle heavy loads, from powering appliances to supporting peak energy demands.
Wide Temperature Tolerance:Operates efficiently across extreme temperatures, ensuring performance in hot climates or cold environments.
Lightweight & Maintenance-Free: Significantly lighter than lead-acid alternatives with zero upkeep required—no watering, no corrosion, just plug-and-play reliability.
Rapid Charging:Recharges quickly to minimize downtime, perfect for time-sensitive applications like off-grid solar setups.
Eco-Friendly:Contains no toxic heavy metals, fully recyclable, and compliant with global environmental standards.

FEATURES:
Safe Lithium Technology

Built with LiFePO4 chemistry—renowned as the safest lithium battery type—offering superior thermal stability and zero risk of thermal runaway, ensuring peace of mind in enclosed or high-use environments.
Integrated BMS Protection
Equipped with a smart Battery Management System (BMS) that guards against overcharge, over-discharge, short circuits, and cell imbalance, extending lifespan and optimizing daily performance.
Ultra-Thin Design
Its slim profile enables flexible installation in tight spaces—ideal for under-seat storage, wall-mounted setups, or systems where vertical clearance is limited, without sacrificing capacity.

12.8V 110Ah 1408Wh RV Lithium Battery Pack 12V.8 Super Thin Slimline Battery For Pickup
Electrical Parameters
Nominal Voltage 12.8V
Rated Capacity 110Ah
Nominal Energy 1408Wh
Internal Resistance ≤20mΩ
Efficiency ≥0.98
Cycle Life(25℃,0.5C/0.5C,100%DOD) >4000cycles Remaining capacity>80%
Self Discharge <3% per Month
Cell in Series,Parallel 4S/1P

Mechanical Parameters
Dimension(LxWxH)
Including installation feet
614x275x50mm
24.17x 10.83x1.97''
Weight 11Kg
Terminal Type 120A Anderson*2
Battery Housing SPCC
Housing Protection IP20
Cell Type-Chemistry LiFePO4 Cell
Communication Bluetooth

Charge Parameters
Charge Method CC-CV
Charge Voltage 14.2~14.6V
Recommended Float Voltage 13.3~13.4V@100%
Recommended Charge Current 55A
Maximum Charge Current 100A
BMS Charge Cut-off Voltage 14.8V

Discharge Parameters
Continuous Discharge Current 100A
Pulse Discharge Current 400A(<1S)
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 10V
Reconnect Voltage 10.8V
Short Circuit Protection 100-200us

Temperature Parameters
Discharge Temperature -30℃ to 65℃
Charge Temperature 0℃ to 65℃
Storage Temperature -10℃ to 35℃
BMS High Temperature Cut-off 70℃

12.8V 110Ah 1408Wh RV Lithium Battery Pack 12V.8 Super Thin Slimline Battery For Pickup

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
