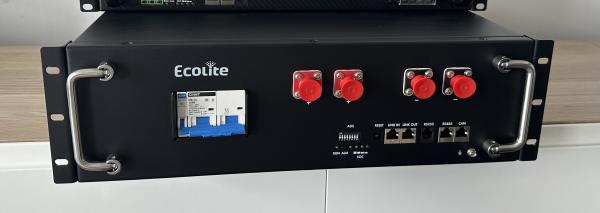

51.2V 100A Lithium Iron Phosphate Energy Storage System Container Battery
51.2V 100A Lithium Iron Phosphate Energy Storage System Container Battery
51.2V 100A Lithium Iron Phosphate Energy Storage System Container Battery
51.2V 100A Lithium Iron Phosphate Energy Storage System Container Battery
51.2V 100A Lithium Iron Phosphate Energy Storage System Container Battery
51.2V 100A Lithium Iron Phosphate Energy Storage System Container Battery
51.2V 100A Lithium Iron Phosphate Energy Storage System Container Battery
51.2V 100A Lithium Iron Phosphate Energy Storage System Container Battery
51.2V 100A Lithium Iron Phosphate Energy Storage System Container Battery
51.2V 100A Lithium Iron Phosphate Energy Storage System Container Battery
51.2V 100A Lithium Iron Phosphate Energy Storage System Container Battery
51.2V 100A Lithium Iron Phosphate Energy Storage System Container Battery
Specifications
Brand Name :
Ecolite/OEM/ODM
Place of Origin :
China
MOQ :
500
Price :
Inquiry
Payment Terms :
L/C, T/T
Supply Ability :
4000 Units per month
Delivery Time :
1-2 months
Packaging Details :
Carton Pallet Container
Model Number :
48100
Certification :
UN38.3 MSDS CE RoHS
Nominal Voltage :
51.2V
Rated Capacity :
100Ah
Rated Energy :
5120Wh
Resistance :
≤30mΩ
Efficiency :
≥0.98
Cycle Life :
>4000cycles @1C,80% DOD
Self Discharge :
<5% per Month
Max.Modules in Series/Parallel :
16S/1P
Dimension(WxDxH) :
482.6x592x133mm
Weight :
45.5kg
Terminal Type :
FCC06B0
Battery Housing :
Cold rolled steel sheet
Housing Protection :
IP30
Continuous Discharge Current :
100A
Communication :
RS485/RS232
Description

48100(51.2V100A) Lithium lron Phosphate (LiFePO4) Integrated BMS deep cycle battery for house solar

Specifications

Electrical Parameters
Nominal Voltage 51.2V
Rated Capacity 100Ah
Energy 5120Wh
Resistance ≤30mΩ
Efficiency ≥0.98
Cycle Life >4000cycles @1C,80% DOD
Self Discharge <5% per Month
Max.Modules in Series/Parallel 16S/1P

Mechanical Parameters
Dimension(WxDxH) 482.6x592x133mm
Dimension(WxDxH) 19x23.30x5.24
Weight 45.5kg
Trminal Type FCC06B0
Battery Housing Cold rolled steel sheet
Housing Protection IP30
Cell Type-Chemistry LiFePO4 Cell
Communication RS485/RS232

Discharge Parameters
Continuous Discharge Current 100A
Pulse Discharge Current 150A (<0.5S)
Recommended Volt. Disconnect 40V
BMS Discharge Cut-off Voltage 40V
Reconnect Voltage 43.2V
Short Circuit Protection 300-800us

Charge Parameters
Charge Method CC-CV
Charge Voltage 56.8-58.4V
Recommended Float Voltage 54~55.2V
Recommended Charge Current 50A
Maximum Charge Current 100A
BMS Charge Cut-off Voltage 59V

Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60℃
BMS High Temperature Cut-off 65℃
