Lichuan DC Servo Motor Drivers Kit DS2-20P/R/C/E Low Voltage 2.4N.m 750W 48V 19A 3000RPM IP65

Lichuan DC Servo Motor Drivers Kit

DS2-10 / 20 / 45P / R / C / E Series

Low Voltage Integrated Servo Solution | 100W–1.5KW | 24V / 48V | IP65

Product Introduction

The Lichuan DC Servo Motor Drivers Kit DS2 Series is a high-performance low voltage integrated servo system designed for industrial automation, robotics, CNC machinery, and precision motion control applications.

This DC Servo Motor Drivers Kit integrates a servo motor, digital servo driver, and encoder feedback into a compact, robust unit, delivering precise position, speed, and torque control under 24V / 48V DC power supply.
With power options from 100W up to 1.5KW, the DS2 series offers flexible solutions for light to heavy-duty automation systems.

Product Overview

• Product Name: DC Servo Motor Drivers Kit

• Brand: Lichuan

• Series: DS2-10 / DS2-20 / DS2-45

• Control Type: Digital DC Servo Control

• Power Range: 100W – 1500W

• Voltage: 24V / 48V DC

• Protection Level: IP65

The Lichuan DC Servo Motor Drivers Kit is engineered for users who require industrial-grade performance with low-voltage safety.

Product Description

The Lichuan DC Servo Motor Drivers Kit DS2 Series demonstrates advanced servo control technology with excellent dynamic response, high torque density, and stable closed-loop performance.

This DC Servo Motor Drivers Kit supports multiple control interfaces and is ideal for OEM machine builders and system integrators seeking a reliable, cost-effective servo solution with simplified wiring and installation.

Basic Information

• Rated Speed: 2500 RPM / 3000 RPM

• Rated Torque Range: 0.32 – 6 N·m

• Rated Current: 3.7A – 45A

• Encoder Feedback: High-resolution incremental encoder

• Cooling Method: Natural cooling / optimized heat dissipation

The DC Servo Motor Drivers Kit is optimized for continuous operation in demanding industrial environments.

Technical Specifications

The DS2 Series DC Servo Motor Drivers Kit is available in multiple models to match different power and torque requirements:

• DS2-10: 100W / 200W

• DS2-20: 400W / 600W / 750W

• DS2-45: 1000W / 1.5KW

Each DC Servo Motor Drivers Kit ensures stable closed-loop control and excellent repeatability.

Key Selling Points

• ✔ Integrated DC Servo Motor Drivers Kit (motor + driver + encoder)

• ✔ Low voltage 24V / 48V DC power supply

• ✔ Wide power range from 100W to 1.5KW

• ✔ High torque output up to 6 N·m

• ✔ Industrial IP65 protection

• ✔ Fast dynamic response and precise positioning

Product Features

• High-precision closed-loop servo control

• Compact integrated structure

• Multiple current and torque configurations

• Stable operation under variable load

• Long service life and low maintenance

The DC Servo Motor Drivers Kit is designed to maximize performance while reducing system complexity.

Servo Control Technology

The Lichuan DC Servo Motor Drivers Kit adopts advanced digital servo algorithms, including:

• Field-Oriented Control (FOC)

• Real-time current, speed, and position loops

• Intelligent anti-resonance control

• Adaptive load compensation

These technologies ensure smooth motion, accurate positioning, and high system stability.

Working Principle

The DC Servo Motor Drivers Kit operates by continuously comparing the command signal with encoder feedback.
The servo driver dynamically adjusts output current to control torque, speed, and position in real time, forming a high-precision closed-loop control system.

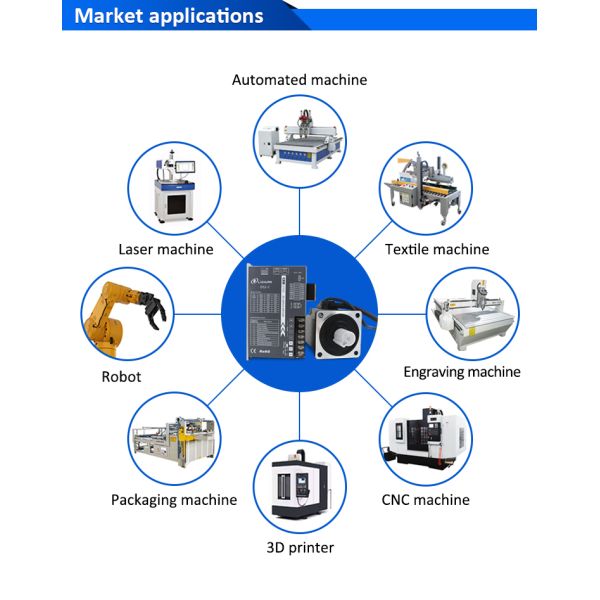

Application Fields

The Lichuan DC Servo Motor Drivers Kit is widely used in:

• Industrial automation equipment

• CNC machines and engraving systems

• Packaging and labeling machines

• Industrial robots and robotic arms

• AGV and intelligent logistics systems

• Semiconductor and electronics manufacturing

Product Usage Scenarios

• Precision position control

• High-speed motion systems

• Multi-axis automation platforms

• Intelligent manufacturing equipment

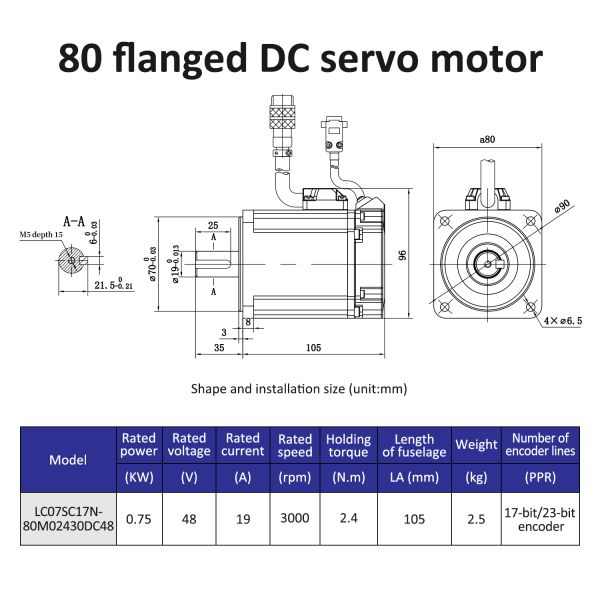

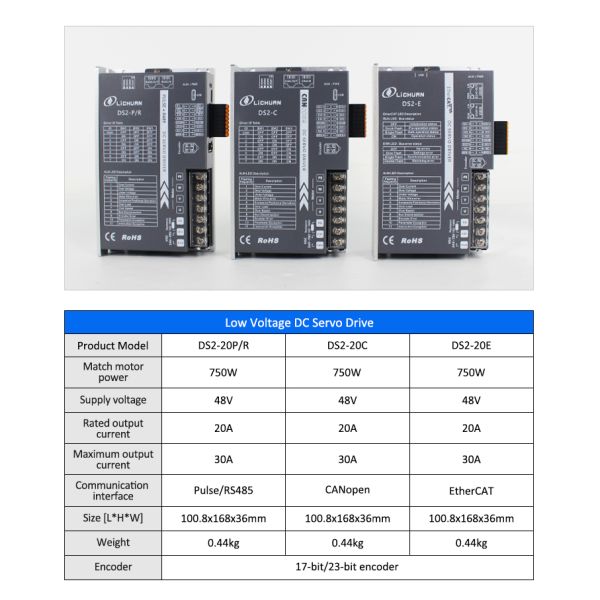

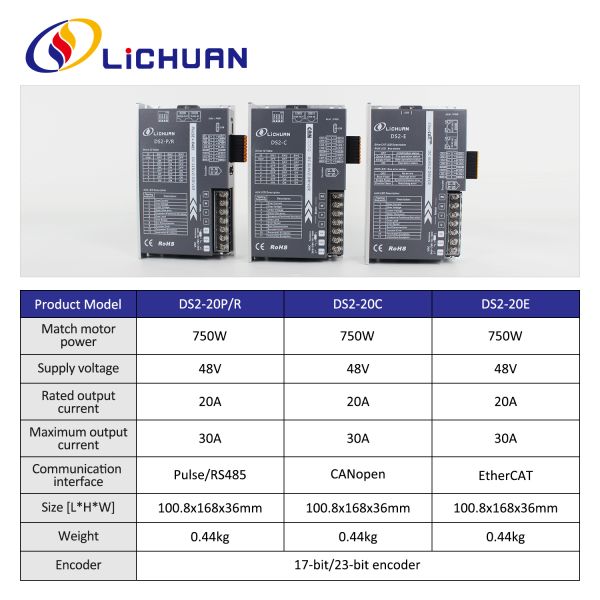

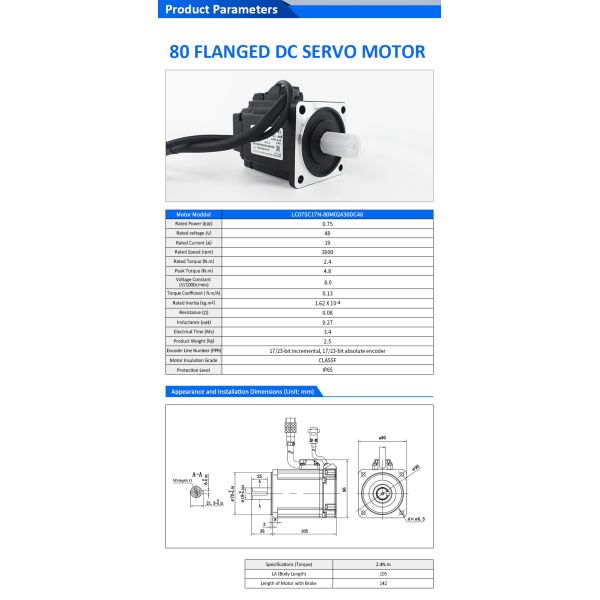

Technical Parameter Table

Product Advantages

• High integration reduces wiring and installation time

• Low voltage design improves operational safety

• Wide model selection for flexible applications

• Excellent cost-performance ratio

• Strong compatibility with automation systems

The DC Servo Motor Drivers Kit helps customers reduce total system cost while enhancing performance.

Product Services

We provide comprehensive support for all DC Servo Motor Drivers Kit products:

• Model selection assistance

• Parameter tuning support

• Communication and control guidance

• OEM / ODM customization

• Long-term technical support

FAQ

Q1: What power options are available for the DC Servo Motor Drivers Kit?
A: From 100W up to 1.5KW, covering light to heavy-duty applications.

Q2: Is this DC Servo Motor Drivers Kit suitable for PLC control?
A: Yes, it supports pulse and industrial communication control for PLC systems.

Q3: Can the system operate under 48V only?
A: The DC Servo Motor Drivers Kit supports both 24V and 48V DC configurations.

Production Process

Each DC Servo Motor Drivers Kit undergoes strict manufacturing processes, including:

• Precision motor winding

• Digital driver assembly

• Encoder calibration

• Load and aging tests

• Final quality inspection

Installation & Operation Guide

1. Mount the DC Servo Motor Drivers Kit securely

2. Connect DC power supply

3. Wire control signals

4. Set servo parameters

5. Perform test operation before full load use

Precautions

• Ensure correct voltage input

• Avoid overload operation

• Maintain proper grounding

• Keep away from extreme heat and moisture

Company Profile

Lichuan is a professional manufacturer specializing in motion control and servo drive systems.
We focus on the development and production of high-quality DC Servo Motor Drivers Kit solutions for global automation markets.

Product Certifications

• CE

• ISO 9001

• RoHS

All DC Servo Motor Drivers Kit products comply with international quality and safety standards.

Quality Assurance

Every DC Servo Motor Drivers Kit is tested before shipment to ensure performance stability, durability, and reliability under industrial operating conditions.

Customer Support

• 7×24 technical consultation

• Fast sample delivery

• Global logistics support

• OEM / ODM project service
