130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan
130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan
Specifications
Model Number :
LCDA-2308C23-M1534P+LCMT-23MCC23NB-130M15015B
Brand Name :
LICHUAN
Place of Origin :
China
MOQ :
1
Price :
$415.26-478.26 / set
Certification :
ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1~5Set 7Days/ 6~100Set 12Days/ ≥101Set Contact Supplier
Delivery Time :
15 work days
Packaging Details :
Eco-friendly paper packaging
AC Voltage :
380V
Phase :
Three-Phase
Efficiency :
IE 2
Frequency :
200HZ
Protect Feature :
waterproof
Type :
Servo Motor
Warranty :
3 months ~ 1 year
Product Name :
2.3KW 130ST AC Servo Motor System
Encoder line number (PPR) :
2500/Absolute Value Encoder
Holding Torque :
15Nm
Rated Speed :
2500RPM
Rated Voltage :
380V
Rated Current :
9.5A
Encoder Line Number :
2500PPR
Motor Weight :
14.4Kg
Bit :
23 bit incremental
Application :
CNC machine
Description

Lichuan 130M15015B+M1534P 380V 2500RPM 15N.m 23bit 2.3KW Three-Phase AC Servo Motor Driver Kit for CNC

130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan

LiChuan 380V 2.3KW 15N.m 23bit Three-Phase AC Servo motor 130M15015B+M1534P 2500RPM Servo Motor with Drive for Sewing Machine

Packing List

No. Product Model / Description Qty
1 Lichuan 2.3KW 130M15015B Servo Motor LCMT-23MCC23NB-130M15015B 1
2 Lichuan 2.3KW AC Servo Driver LCDA-2308C23-M1534P 1
3 Motor Cable Standard (3m) 1
4 Encoder Cable Standard (3m) 1
5 Servo Driver Instruction Book Standard 1

Product Description

»» LICHUAN 2.3KW 130ST-M15015B Servo Motor Information

Lichuan 130 series AC servo motor contains 1KW, 1.3KW, 1.5KW, 2KW, 2.3KW, 2.6KW, 3.8KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and high temperature permanent magnet material , Servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high precision control applications.

LICHUAN AC Servo Motor Naming Rules

LCMT - 10 L 02 N B - 130 M040 25 B

  • LCMT--- Product information
  • 10-------- 1KW ( 04---400W / 07---750W / 10---1KW )
  • L---------- Motor inertia ( L---low / M---middle )
  • 02-------- Sensing form ( 01---line saving encoder 2500 02---15 type encoder 2500 )
  • N----------Without brake ( Z---with brake )
  • B--------- only keyway no oil seal ( A---only oil seal no keyway C---oil seal and keyway )
  • 130-------Frame size
  • M040--- Torque
  • 25--------Speed
  • B--------- B series ( A--- A series / C--- C series )

LICHUAN 130mm Series AC Servo Motor Specification

130 Servo

Motor model

 130M04025 130M05025 130M06025 130M07725 130M10010 130M10015 130M10025 130M15015 130M15025

Rated power

(KW)

 1.0 1.3 1.5 2.0 1.0 1.5 2.6 2.3 3.8

Rated voltage

(V)

 220 220 220 220 220 220 220 220 220

Rated current

(A)

 4.0 5.0 6.0 7.0 4.5 6.0 10 9.5 13.5

Rated speed

(rpm)

 2500 2500 2500 2500 1000 1500 2500 1500 2500

Holding torque

(N.M)

 4.0 5.0 6.0 7.7 10 10 10 15 15

Peak torque

(N.M)

 12 16 18 22 20 25 25 30 30

Torque Coefficient

(N.m/A)

 1.0 1.0 1.0 1.03 2.2 1.67 1.0 1.58 1.11

Rotor Inertia

(Kg.m2)

 0.85X10-3 1.06X10-3 1.26X10-3 1.53X10-4 1.94X10-3 1.94X10-3 1.94X10-3 2.77X10-3 2.77X10-3

Voltage constant

(V/1000r/min)

 72 68 65 68 140 103 70 114 67

Phase Resistance

(Ω)

 2.76 1.84 1.21 1.01 2.7 1.29 0.73 1.1 0.49

Phase Inductance

(mH)

 6.42 4.9 3.87 2.94 8.8 5.07 2.45 4.45 1.68

Machanical Time-constant

(Ms)

 2.32 2.66 3.26 3.80 3.26 3.93 3.36 4.05 3.43

Encoder line Number

(PPR)

 2500 2500 2500 2500 2500 2500 2500 2500 2500
Insulation Class Class B(130℃)
Safety Class IP66

130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan

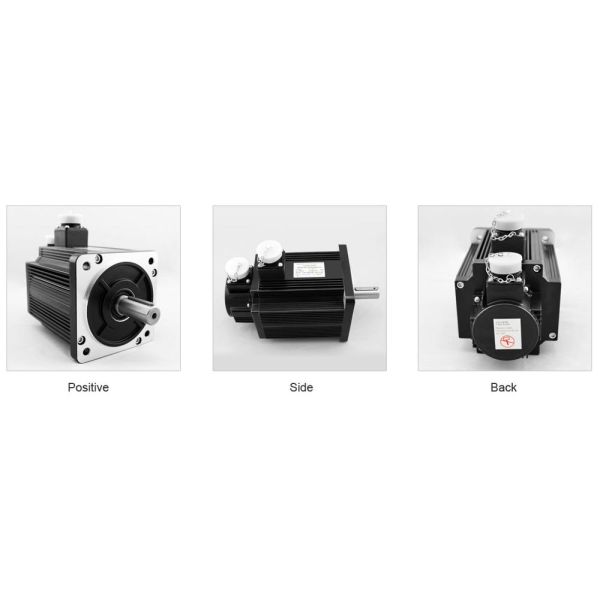

Motor Pictures

130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan

»» LICHUAN 2.3KW 380V AC Servo Driver Information

LICHUAN 380V servo driver is a new generation of high performance, high stability products, support speed, position, torque and three mixed mode, increase the semi-automatic and automatic gain automatic tuning function, built-in MODBUS communication control function, can match more domestic servo Motor. Servo main IC using the United States Industry Instruments DSP all-digital chip, very low failure rate, adaptive drive 0.1KW ~ 3.8KW servo motor.

LICHUAN AC Servo Motor Naming Rules

LCDB2 - 10 20 02 - L B 13 32

  • LCDB2-- Product information
  • 10-------- Motor power ( 02---200W 04---400W / 07---750W / 10---1KW ... )
  • 30-------- Peak current ( 20---20A / 30---30A / 50---50A / 75---75A )
  • 02-------- Encoder information ( 01---line saving encoder / 02---15 type encoder )
  • L---------- Motor inertia ( L---low / M---middle )
  • B----------Driver series ( A---A series / B---B series / C---C series )
  • 13---------Frame size ( including 6 / 8 / 9 / 110 ... )
  • 32-------- Voltage ( 22---single phase 220v / 32---3 phase 220v / 34---3 phase 380v )

Features

1. Power Range: 2.3kw

2. Input Voltage: AC 380V , 3 phases

3. Position / Speed control mode
4. With MODBUS communication performance(RS-485 / RS-422 / RS-232),ASCII and RTU communication protocol
5. Encoder: 2500ppr
6. Articles made to order: drag ,oil seal
7. Axis: Circular shaft / keyway

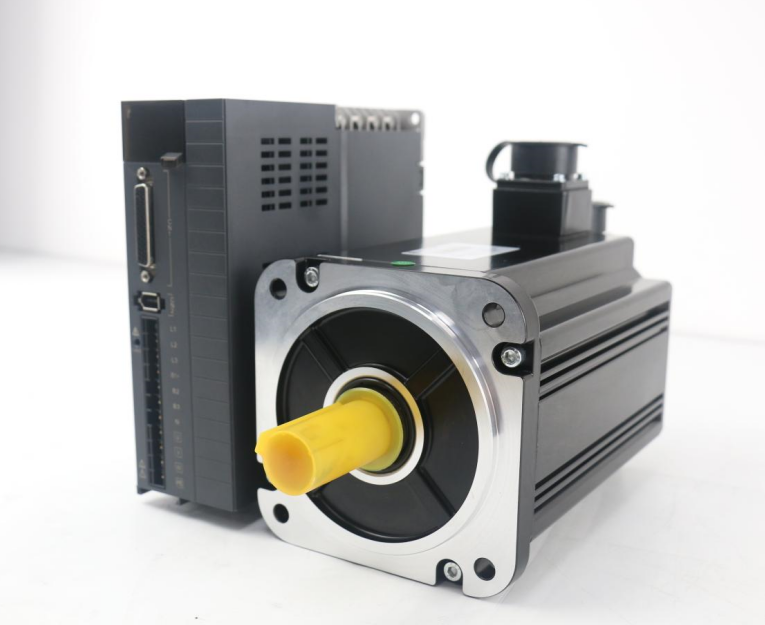

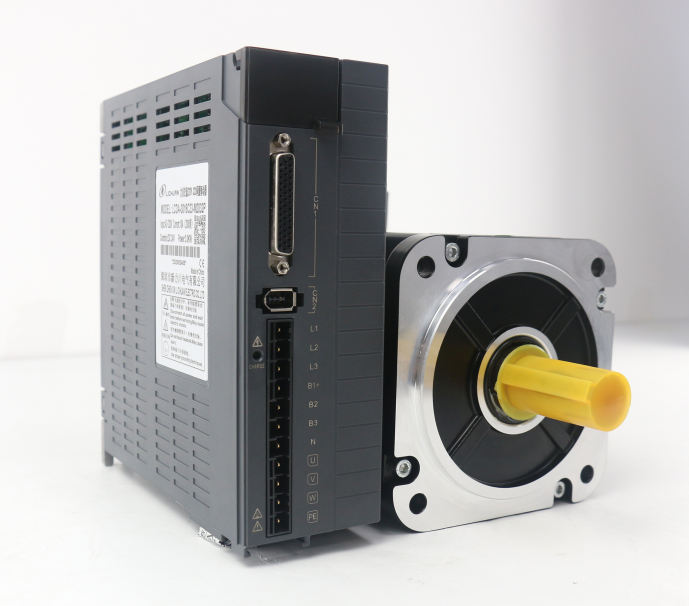

Product Show

130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan

130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan130M15015B+M1534P 380V 2500RPM 15N.M 23bit 2.3KW 3 Phase Servo Motor Driver Lichuan
