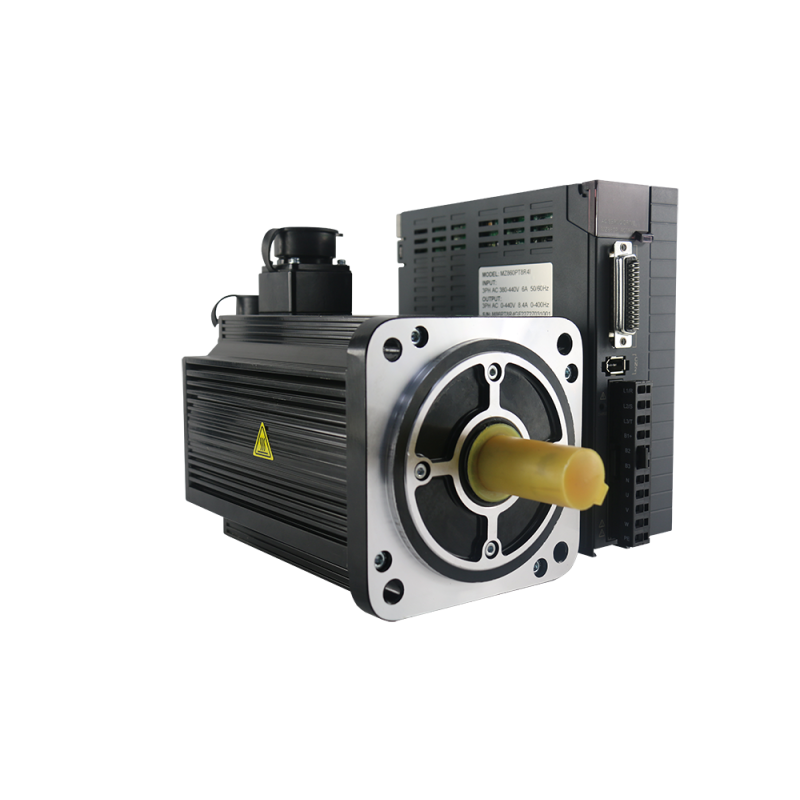

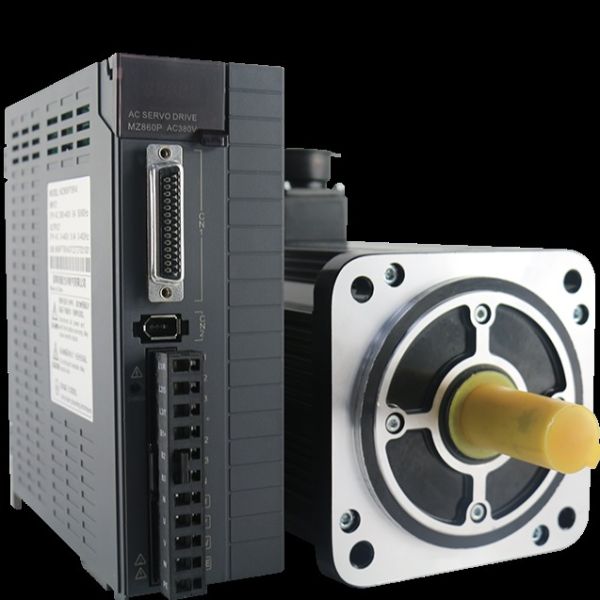

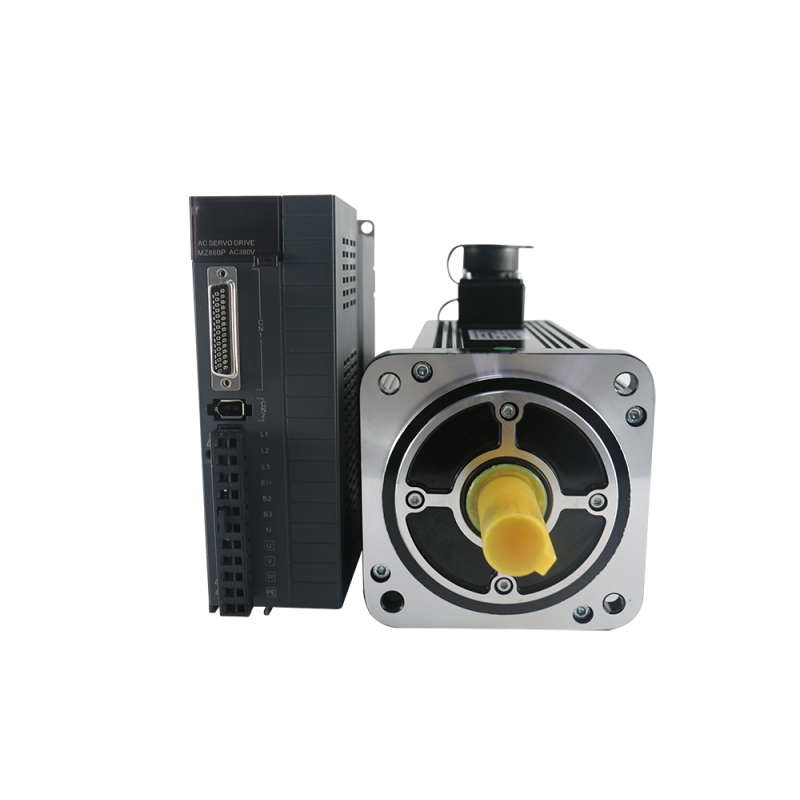

Lichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit Incremental
Lichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit Incremental
Lichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit Incremental
Lichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit Incremental
Specifications
Model Number :
LCMT-38MAC23NB-130M15025B+LCDA-3818C23-M2532P
Brand Name :
Lichuan
Place of Origin :
China
MOQ :
1
Price :
$466.20-530.10 / set
Certification :
ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1~5Set 7Days/ 6~100Set 12Days/ ≥101Set Contact Supplier
Delivery Time :
15 work days
Packaging Details :
Eco-friendly paper packaging
Phase :
Three-Phase
AC Voltage :
AC 208–230/240V
Motor Power :
3.8KW
Efficiency :
PI66
Frequency :
50/60Hz
Type :
Servo Motor
Motor frame size :
Flange 130mm/ 130st servo motor
Motor voltage :
AC220V
Motor current :
13.5A
Rated Speed :
2500rpm
Motor Holding torque :
15 N.M
AC servo driver :
SVPWM control
Cooling way :
by Fan
Communication interface :
RS-232/RS485 RS422 ACSII RTU
Protection :
Over current, over voltage, under voltage, overheating, etc.
Warranty :
3 months ~ 1 year
Protect Feature :
waterproof
Description

Lichuan 130M15025B+M2532P 3.8kw Servo Motor with Driver Kit 3phase Ac Servo Motor Driver 220V 15N.m 23 Bit Incremental AC Servo Motor Driver for CNC

Packing list

NO. Item No. Description QTY
1 LCDA-3818C23-M2532P Lichuan 3.8KW Servo Motor Driver 1PC
2 LCMT-26MCC23NB-130M10025B 130 Motor, 15N.m, 3.8KW, 2500rpm, 3phase 220v 1PC
3 Lichuan Power cable 3M servo power cable (Longer cable available) 1PC
4 Lichuan Encoder cable 3M servo encoder cable (Longer cable available) 1PC
5 Lichuan Instruction book Instruction book 1PC

Product Description

Lichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit IncrementalLichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit IncrementalLichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit Incremental

Product Name: 130 series AC servo motor


Lichuan 130 series AC servo motor contains 1KW, 1.3KW, 1.5KW, 2KW, 2.3KW, 2.6KW, 3.8KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and high temperature permanent magnet material , Servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high precision control applications.

Lichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit IncrementalLichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit IncrementalLichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit Incremental

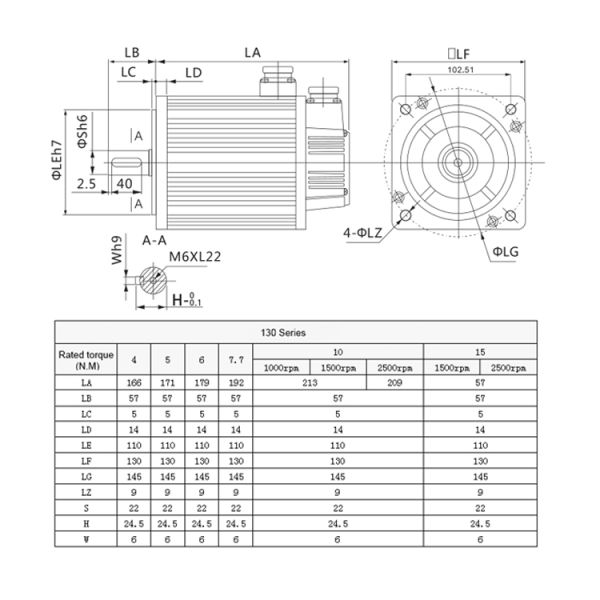

Motor Model

LCMT-10L02-130M

04025

LCMT-13L02-130M

05025

LCMT-15L02-130M

06025

LCMT-20L02-130M

07725

LCMT-10L02-130M

10010

LCMT-15M02-130M

10015

LCMT-26M02-130M

10025

LCMT-23ML02-130M

15015

LCMT-38M02-130M

15025
Rated Power (KW) 1.0 1.3 1.5 2.0 1.0 1.5 2.6 2.3 3.8
Rated Voltage (V) 220 220 220 220 220 220 220 220 220
Rated Current (A) 4.0 5.0 6.0 7.5 4.5 6.0 10 9.5 13.5
Rated Speed(rpm) 2500 2500 2500 2500 1000 1500 2500 1500 2500
Peak Torque (N.M) 4.0 5.0 6.0 7.7 10 10 10 15 15
Holding Torque (N.M) 12 16 18 22 20 25 25 30 30
Voltage constant (V/1000r/min) 72 68 65 68 140 103 70 114 67
Torque coefficient(N.M/A) 1.0 1.0 1.0 1.03 2.2 1.67 1.0 1.58 1.11
Rotor inertia(kg.m2) 0.85×10-3 1.06×10-3 1.26×10-3 1.53×10-3 1.94×10-3 1.94×10-3 1.94×10-3 2.77×10-3 2.77×10-3
Phase Resistance(Ω) 2.76 1.84 1.21 1.01 2.7 1.29 0.73 1.1 0.49
Phase Inductance(mH) 6.42 4.9 3.87 2.94 8.8 5.07 2.45 4.45 1.68
Mechanical time constant (Ms) 2.32 2.66 3.26 3.80 3.26 3.93 3.36 4.05 3.43
Weight (KG) 7.7 8.2 8.9 10 11.5 11.5 11.5 14.4 14.4
Encoder line Number (PPR) 2500
Insulation/Safety Classs Class B ( (130℃) IP66
Operating Environment Temperature:-20℃~+50℃ Humidity:Below <90%(No dewing)
Motor winding Winding lead wire U V W PE
Plug serial number 2 3 4 1

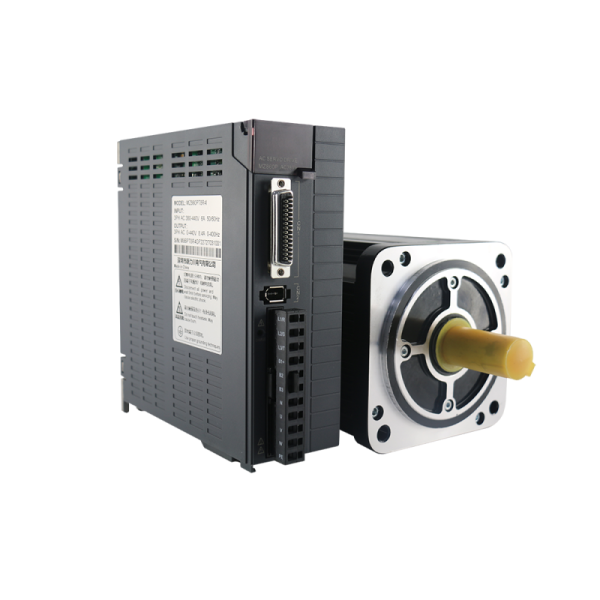

Product Name: LICHUAN AC 220V Servo Driver
LICHUAN servo driver is a new generation of high performance, high stability products, support speed, position, torque and three mixed mode, increase the semi-automatic and automatic gain automatic tuning function, built-in MODBUS communication control function, can match more domestic servo Motor. Servo main IC using the United States Industry Instruments DSP all-digital chip, very low failure rate, adaptive drive 0.1KW ~ 26KW servo Motor.

Lichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit Incremental

Suitable for a variety of sports control automation equipment and equipment, such as: mechanical arm, cutting machine, fuel injection machine, ultrasonic equipment, feeding equipment, printing equipment, medical equipment, packaging equipment, lithium battery equipment, CNC lathes, spraying equipment, Equipment and so on.

Lichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit IncrementalLichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit IncrementalLichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit IncrementalLichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit IncrementalLichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit IncrementalLichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit IncrementalLichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit IncrementalLichuan 130M15025B+M2532P 3.8kw 3 Phase AC Servo Motor Driver 220V 15N.M 23 Bit Incremental
