15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
Specifications
Phase :
Three-Phase
Rated speed(rpm) :
1500
Efficiency :
IE 2
Protect Feature :
waterproof
Rated current (A) :
30
AC Voltage :
380V
Holding torque(N.m) :
96
Type :
Servo Motor, 200M96015B +M1534P
Frequency :
50/60Hz
Product Name :
3Phase AC Servo motor kit
Rated voltage(V) :
380
Frame :
200mm
Application :
General Machinery
Motor Mounting Type :
Flange
Warranty :
3 months ~ 1 year
Bit :
23 bit incremental
Rated Power :
15KW
Rated power(KW) :
15
Rated Speed :
1500 RPM
Weight(Kg) :
65
Model Number :
200M96015B +M1534P
Brand Name :
LICHUAN
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$2,224 / set
Description

Packing List
NO.
Product Name
Model / Description
Quantity
1

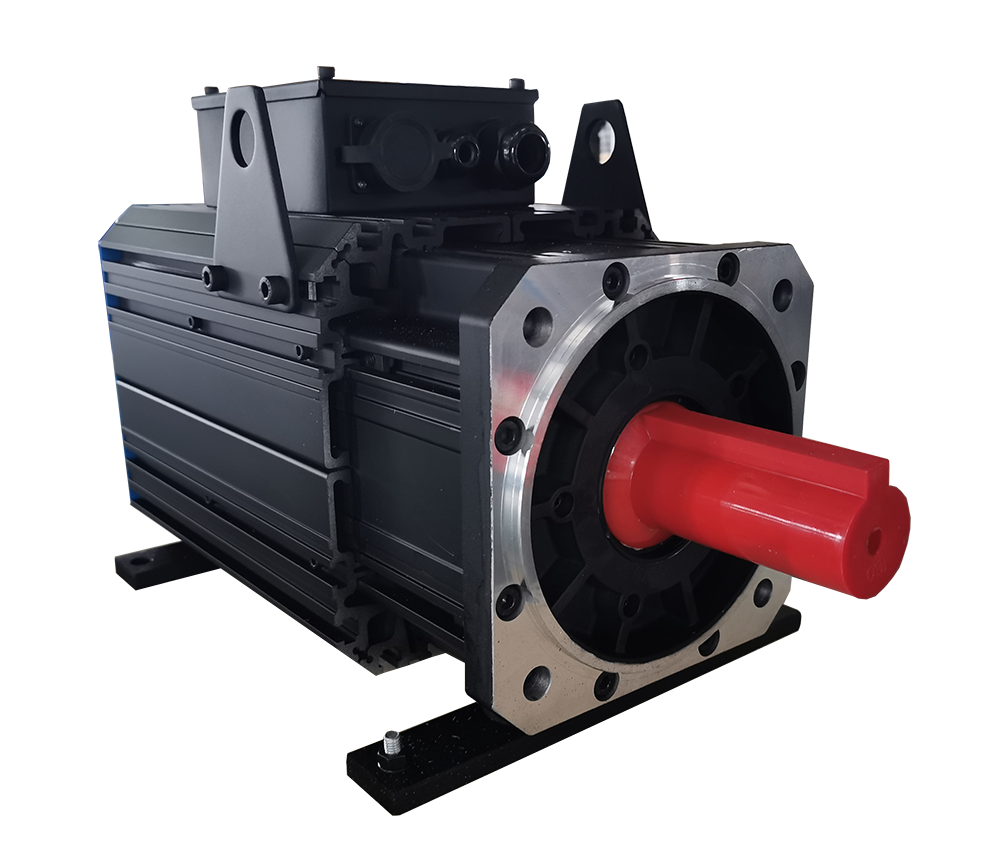

Lichuan 15KW 200M96015B Servo Motor
200M96015B
1
2

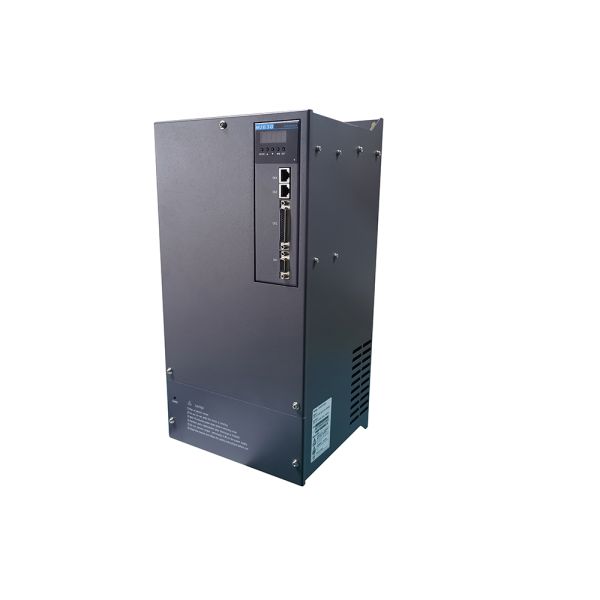

Lichuan 15KW AC Servo Driver
LCDA-15032C23-M1534P
1
3
Motor Cable
Standard (3m)
1
4
Encoder Cable
Standard (3m)
1
5
Servo Driver Instruction Book
Standard
1
Products Description

Lichuan 200 series AC servo motor includes 11KW, 15KW, 18.5KW,22KW, 30KW, 37KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications.
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
Technical requirements
Motor Name
200M96015B
Flange
200
Rated power
15KW
Rated Current
30A
Rated torque
96N.m
Rated voltage
380V
Rated speed
1500r/min
Insulation grade
Grade F
Protection grade
IP65
Ambient temperature
-20°C--+50°C
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
Application Area
15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
