Specifications
Model Number :
200M54020B+ M2034P
Brand Name :
LICHUAN
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$1,894.80 / set
AC Voltage :
380V
Phase :
Three-Phase
Rated Power :
11KW
Rated Speed :
2000RPM
Efficiency :
IE 2
Frame :
200mm
Frequency :
50/60Hz
Motor Mounting Type :
Flange
Protect Feature :
waterproof
Type :
Servo Motor, LCZF18201154L3-03+M2034P
Warranty :
3 months ~ 1 year
Product Name :
3Phase AC Servo motor kit
Application :
General Machinery
Rated power(KW) :
11
Rated voltage(V) :
380
Rated current (A) :
22
Rated speed(rpm) :
2000
Holding torque(N.m) :
54
Bit :
23 bit incremental
Weight(Kg) :
60
Description
380V 11KW Lichuan Motor 2000RPM 54N.M 23bit 3 Phase AC Servo Motor Driver Kit
Complete Package Contents
Item Product Name Model / Description Quantity
1 Lichuan 11KW 200M54020B Servo Motor 200M54020B 1
2 Lichuan 11KW AC Servo Driver LCDA-11026C23-M2034P 1
3 Motor Cable Standard (3m) 1
4 Encoder Cable Standard (3m) 1
5 Servo Driver Instruction Book Standard 1

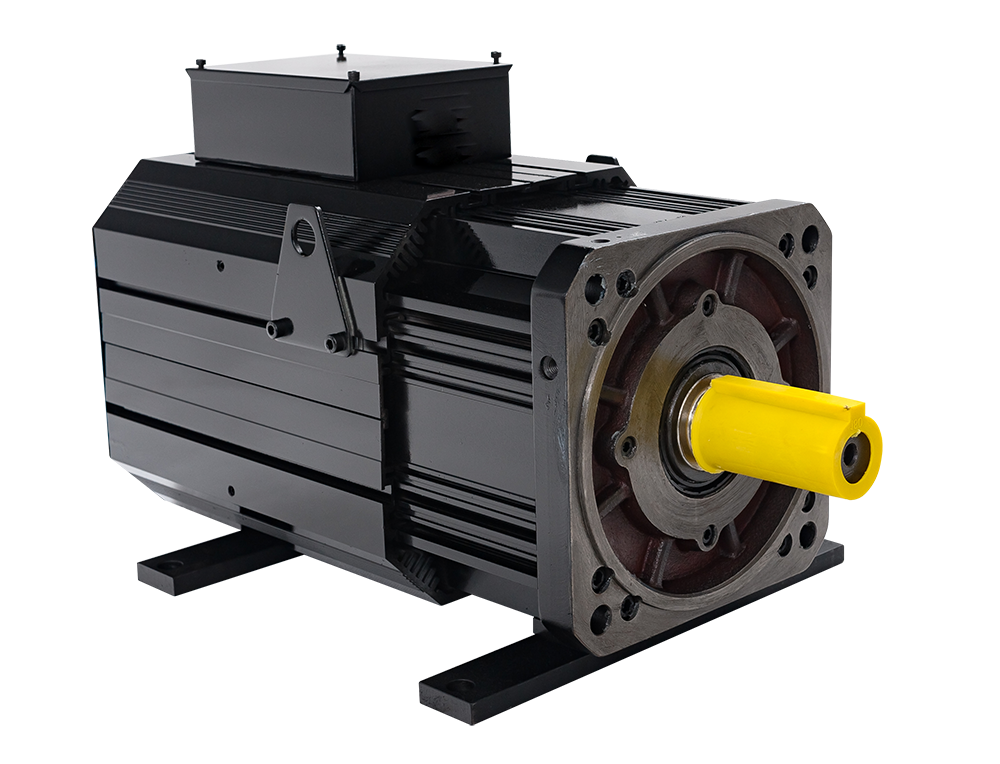

Lichuan 200 Series AC Servo Motor Overview
The Lichuan 200 series AC servo motor includes power specifications ranging from 11KW to 37KW. These motors feature Japan Tamagawa 2500 cable encoders, advanced magnetic circuit design, and high-temperature resistant permanent magnet materials. The servo motors operate with exceptional smoothness and minimal noise, making them ideal for various industrial automation equipment and high-precision control applications.
380V 11KW Lichuan Motor 2000RPM 54N.M 23bit 3 Phase AC Servo Motor Driver Kit 200M54020B+ M2034P
Technical Specifications
Parameter Specification
Motor Name 200M54020B
Rated Power 11KW
Rated Torque 54N.m
Rated Voltage 380V
Rated Speed 2000r/min
Insulation Grade Grade F
Protection Grade IP65
Ambient Temperature -20°C to +50°C
380V 11KW Lichuan Motor 2000RPM 54N.M 23bit 3 Phase AC Servo Motor Driver Kit 200M54020B+ M2034P 380V 11KW Lichuan Motor 2000RPM 54N.M 23bit 3 Phase AC Servo Motor Driver Kit 200M54020B+ M2034P
Application Areas
This high-performance servo motor system is designed for demanding industrial applications requiring precise motion control and reliable operation.
