380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P
380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P
380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P
380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P
380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P
380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P
Specifications
Model Number :
200M140015B+M1534P
Brand Name :
LICHUAN
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$3,460 / set
AC Voltage :
380V
Phase :
Three-Phase
Efficiency :
IE 2
Frequency :
50/60Hz
Protect Feature :
waterproof
Type :
Servo Motor, 200M140015B+M1534P
Warranty :
3 months ~ 1 year
Product Name :
3Phase AC Servo motor kit
Application :
General Machinery
Rated power(KW) :
22
Rated voltage(V) :
380
Rated current (A) :
50
Rated speed(rpm) :
1500
Holding torque(N.m) :
140
Bit :
23 bit incremental
Weight(Kg) :
75
Description

Packing List
NO.
Product Name
Model / Description
Quantity
1
Lichuan 22KW 200M140015B Servo Motor
200M140015B
1
2
Lichuan 22KW AC Servo Driver
LCDA-22045C23-M1534P
1
3
Motor Cable
Standard (3m)
1
4
Encoder Cable
Standard (3m)
1
5
Servo Driver Instruction Book
Standard
1
Products Description

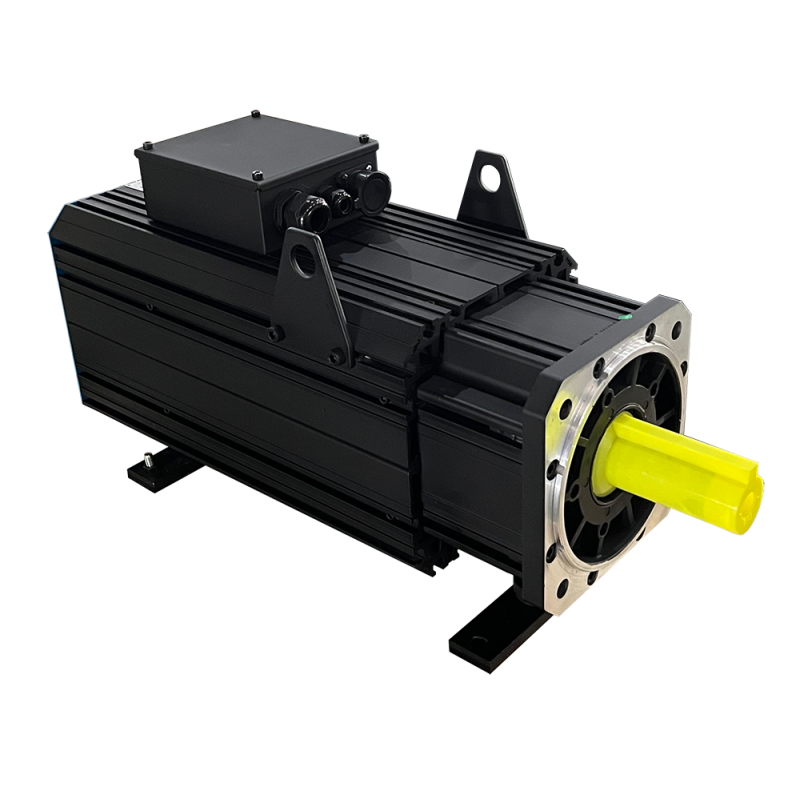

Lichuan 200 series AC servo motor includes 11KW, 15KW, 18.5KW,22KW, 30KW, 37KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications.
380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P

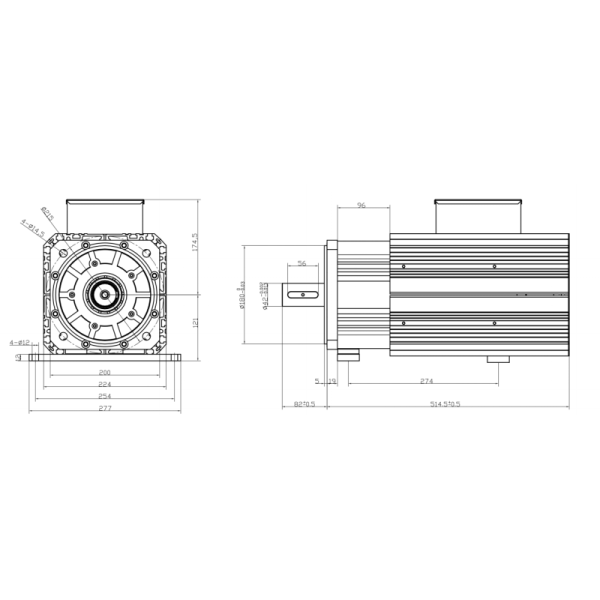

Technical requirements
Motor Name
200M140015B
Flange
200
Rated power
22KW
Rated Current
44.5A
Rated torque
140N.m
Rated voltage
380V
Rated speed
1500r/min
Insulation grade
Grade F
Protection grade
IP65
Ambient temperature
-20°C--+50°C
380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P
380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P
Application Area
380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P
Recommend Products
Certifications
380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P
Our Advantages
380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P
FAQ
380V 1500RPM 140N.M 23bit 3 Phase 22KW AC Servo Motor Kit 200M140015B+M1534P
