200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW
Specifications
Model Number :
200M191015B+M1534P
Brand Name :
LICHUAN
Place of Origin :
China
MOQ :
1
Price :
$4,366 / set
Certification :
ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1~5Set 7Days/ 6~100Set 12Days/ ≥101Set Contact Supplier
Delivery Time :
15 work days
Packaging Details :
Eco-friendly paper packaging
Product Name :
3Phase AC Servo motor kit
Phase :
Three-Phase
AC Voltage :
AC 380V
Rated power(KW) :
30
Efficiency :
IE 2
Frequency :
50/60Hz
Type :
Servo Motor, 200M191015B +M1534P
Warranty :
3 months ~ 1 year
Application :
General Machinery
Rated voltage(V) :
380
Rated current (A) :
50
Rated speed(rpm) :
1500
Holding torque(N.m) :
191
Bit :
23 bit incremental
Weight(Kg) :
90
Protect Feature :
Waterproof
Description
LICHUAN 200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.m 23bit 3Phase CNC 30KW AC SERVO Motor Driver Kit for CNC Machine
Packing List
NO.
Product Name
Model / Description
Quantity
1

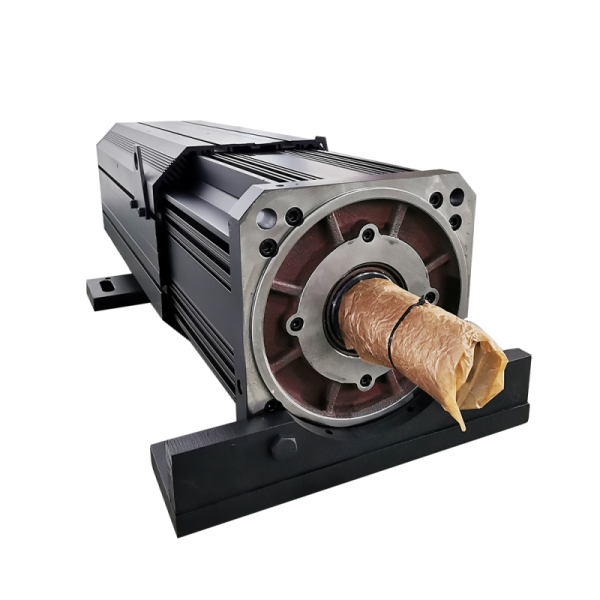

Lichuan 30KW 200M191015B Servo Motor
200M191015B
1
2

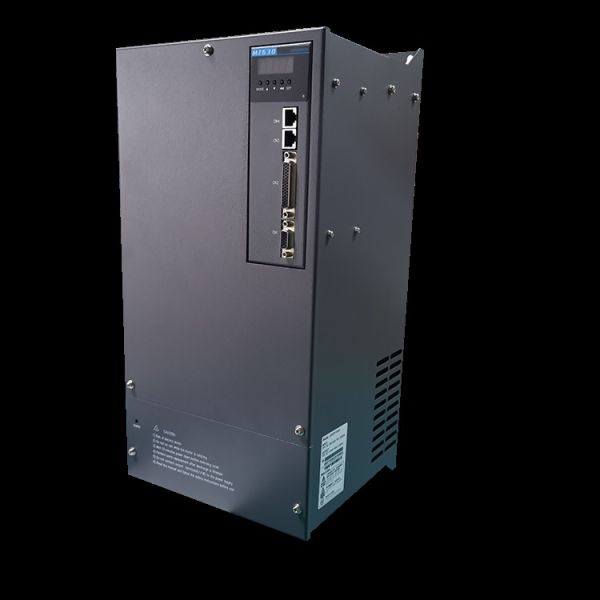

Lichuan 30KW AC Servo Driver
LCDA-30075C23-M1534P
1
3
Motor Cable
Standard (3m)
1
4
Encoder Cable
Standard (3m)
1
5
Servo Driver Instruction Book
Standard
1

Products Description

Lichuan 200 series AC servo motor includes 11KW, 15KW, 18.5KW,22KW, 30KW, 37KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications.
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW
Technical requirements
Motor Name
200M191015B
Flange
200
Rated power
30KW
Rated Current
48A
Rated torque
191N.m
Rated voltage
380V
Rated speed
1500r/min
Insulation grade
Grade F
Protection grade
IP65
Ambient temperature
-20°C--+50°C
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW
Application Area
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW
