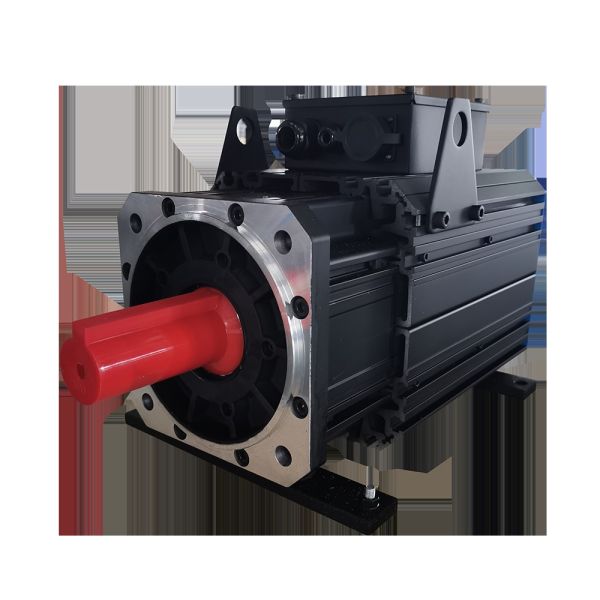

18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
Specifications
Model Number :
200M88020B + M2034P
Brand Name :
LICHUAN
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$2,899 / set
AC Voltage :
380V
Phase :
Three-Phase
Efficiency :
IE 2
Frequency :
50/60Hz
Protect Feature :
waterproof
Type :
Servo Motor, 200M88020B + M2034P
Warranty :
3 months ~ 1 year
Product Name :
3Phase AC Servo motor kit
Application :
General Machinery
Rated power(KW) :
18.5
Rated voltage(V) :
380
Rated current (A) :
45
Rated speed(rpm) :
200
Holding torque(N.m) :
88
Bit :
23 bit incremental
Weight(Kg) :
70
Description

Packing List
NO.
Product Name
Model / Description
Quantity
1
Lichuan 18.5KW 200M88020B Servo Motor
200M88020B
1
2
Lichuan 18.5KW AC Servo Driver
LCDA-18537C23-M2034P
1
3
Motor Cable
Standard (3m)
1
4
Encoder Cable
Standard (3m)
1
5
Servo Driver Instruction Book
Standard
1
Products Description

Lichuan 200 series AC servo motor includes 11KW, 15KW, 18.5KW,22KW, 30KW, 37KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications.
18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
Technical requirements
Motor Name
200M88020B
Flange
200
Rated power
18.5KW
Rated Current
45A
Rated torque
88N.m
Rated voltage
380V
Rated speed
2000r/min
Insulation grade
Grade F
Protection grade
IP65
Ambient temperature
-20°C--+50°C
18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
Application Area
18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
Recommend Products
Certifications
18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
Our Advantages
18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
FAQ
18.5KW 380V 2000RPM 88N.M 23bit 3 Phase 18.5KW AC Servo Motor Driver Kit 200M88020B + M2034P
