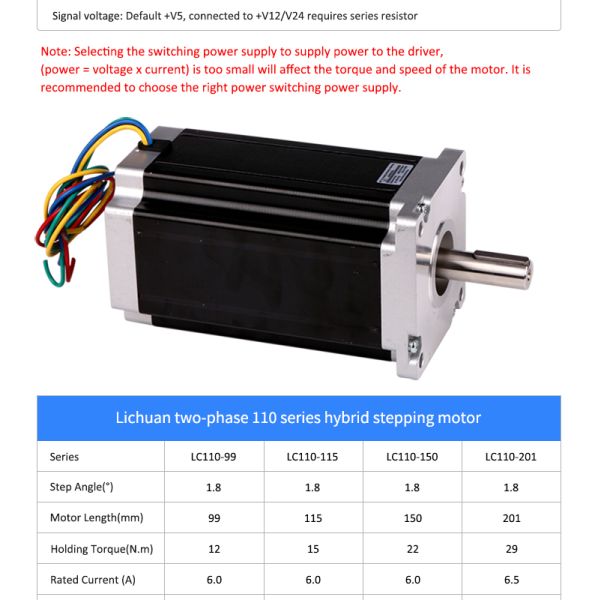

CNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver Kit
CNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver Kit
CNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver Kit
CNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver Kit
CNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver Kit
CNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver Kit
Specifications
Model Number :
LC110-150+MC2280H
Brand Name :
LICHUAN
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$148.50-154.80 / set
Phase :
2
Type :
Hybrid
Current / Phase :
6A
Warranty :
3 months ~ 1 year
Step Angle accuracy :
± 5% (whole step )
Torque :
22N.M
Resistance Accuracy :
± 10% (20℃)
Inductance Accuracy :
± 20% (1KHZ)
Temperature Rise :
80°C max (Rated current, 2-phase power)
Ambient Temperature :
-20°C ~ +50°C
Insulation Resistance :
100M Min 500 VDC
Matched driver :
MC2280H
Dielectric Strength :
500V AC 1 minute
Allowable Radial Load :
0.02mm Max (450g load)
Description

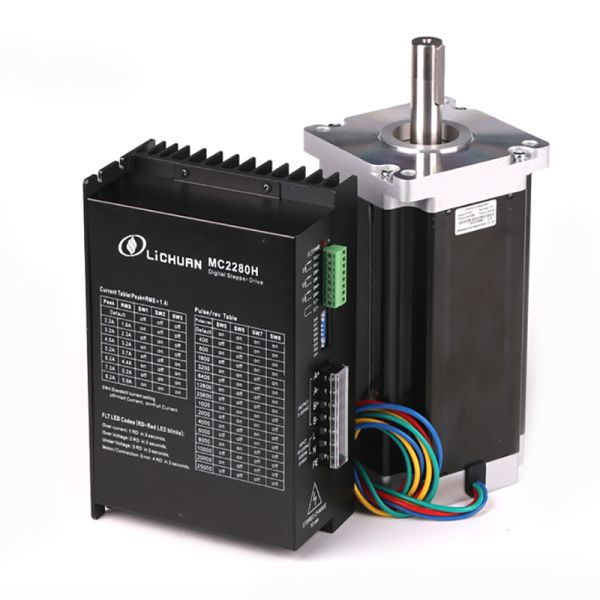

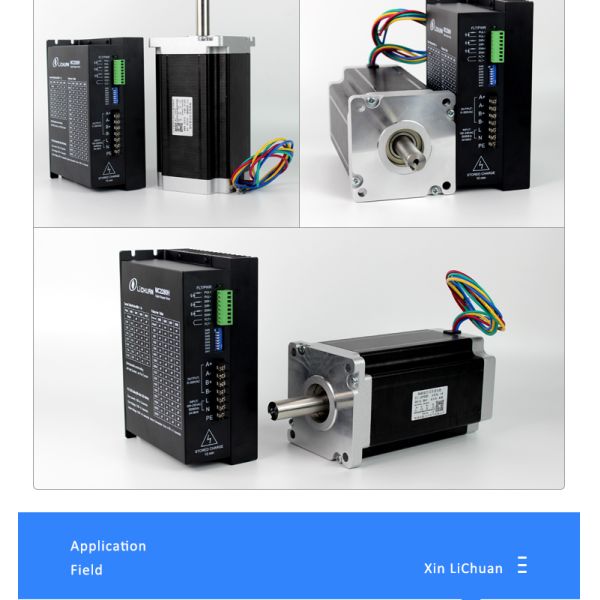

CNC 2 Phase 110mm 22N.M Nema42 LC110-150+MC2280H Hybrid stepper motor and stepper drive kit

Packing list :

No. Product Specifications Qty

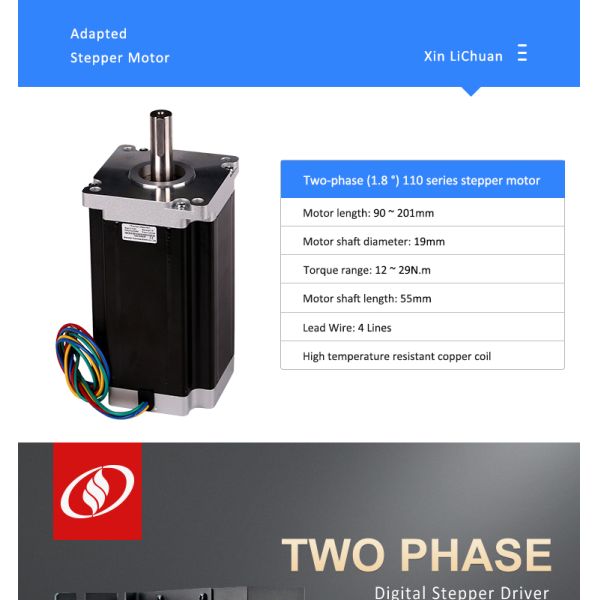

1 2ph Nema42 Hybrid stepper motor LC110-150 1

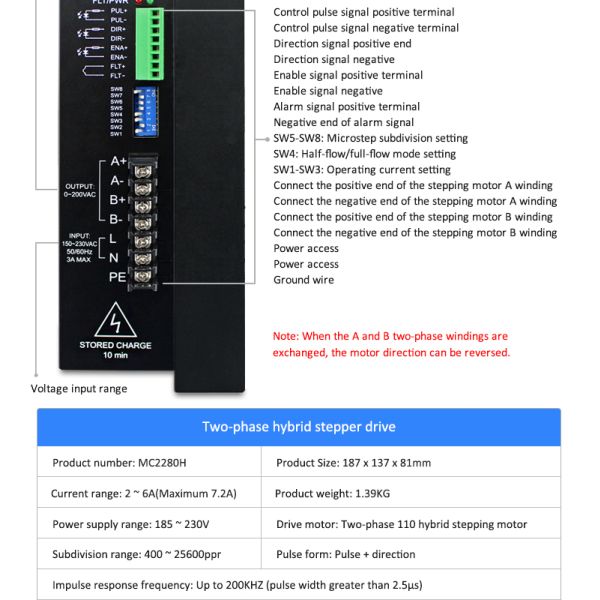

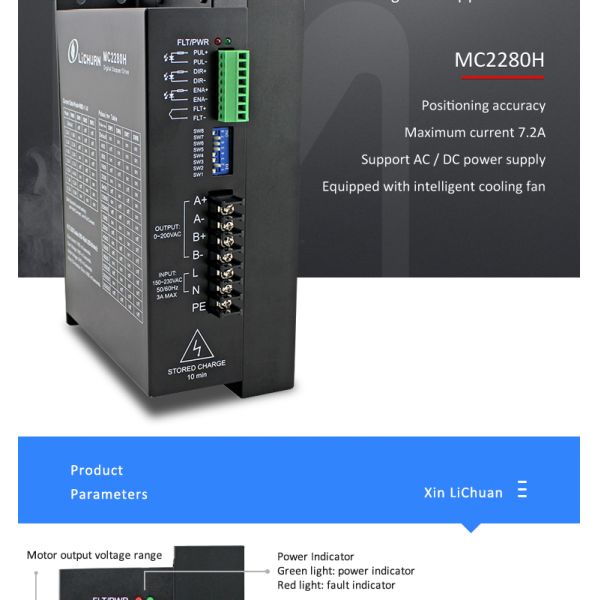

2 2phase Nema42 Microstep drive MC2280H 1
3 Motor cable Standard (0.5m) can make longer kindly contact us 1
4 Notes: Driver MC860H no cable 0

CNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver KitCNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver KitCNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver KitCNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver KitCNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver KitCNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver KitCNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver KitCNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver KitCNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver KitCNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver KitCNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver Kit

Packaging & Shipping

CNC 2 Phase 110mm 22N.M Nema 42 LC110-150+MC2280H Hybrid Stepper Motor And Driver Kit

FAQ

1. Are you factory?

Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver and planetary reducer for more then 10 years in China. Lichuan is our registered brand.

2. How to select models?

Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.

3. How do you ship the goods?

We normally ship goods by express(DHL/UPS/FEDEX/EMS), by sea and by air, also accept customer

4. Can I test sample?

Yes, sample charged can be offered for testing.

5. Can we be agent or distributor?

Yes, welcome and we will support you.

6. Can you do OEM or ODM service?

Yes, we have R&D department and accept OEM and ODM service.

7. How about warranty?

One year warranty, technical support available, we always try our best to help customers to solve problems
