Specifications
Model Number :
Nema24 LC60H286+LCDA606S
Brand Name :
LICHUAN
Place of Origin :
Guangdong, China
MOQ :
2 sets
Price :
$72 / set
Phase :
2, 2-Phase
Type :
Hybrid, LC60H286+LCDA606S
Current / Phase :
1A-5A
Warranty :
3 months ~ 1 year
Weight :
2KG
Voltage :
DC20-50V
Application :
High Speed CNC Machine
Torque :
3N.M
Name :
Nema24 closed loop stepper motor kit
motor current :
4.5A
Motor length :
86+22mm
PPR :
1000
Description

AC/DC stepper motor kit for Lichuan 3NM Nema24 2phase servo step motor drive close loop control system

A

2 phase NEMA23 Closed-loop stepper motor 1pcs

LC60H286
B

2 phase closed loop stepper motor driver 1pcs

LCDA606S
C

1pcs 3M Encoder cable. If you need longer cables, please contact with us

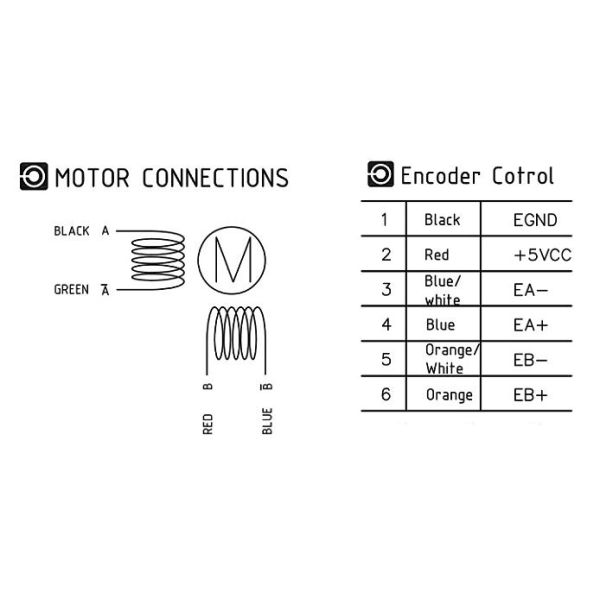

>2 phase 3NM NEMA24 Closed-loop stepper motor/ LC60H286 information

Motor mode

Step/angle

Length

Holiding torque

Current

Rotor inertia

Encoder line

Lead wire

Weight

°

mm

N.M

A

g.cm2

PPR

NO.

Kg

LC60H269

1.8

69+22

2

4.0

570

1000

4

1.1

LC60H286

1.8

86+22

3

4.5

620

1000

4

1.45

LC60H2102

1.8

102+22

4.5

5.0

1000

1000

4

1.87

LC60H2112

1.8

112+22

4.8

5.8

1200

1000

4

2.1

LC60H2127

1.8

127+22

5.5

5.8

1370

1000

4

2.45

Notes: The above is only for representative products, We can according to customer requirements to remake.

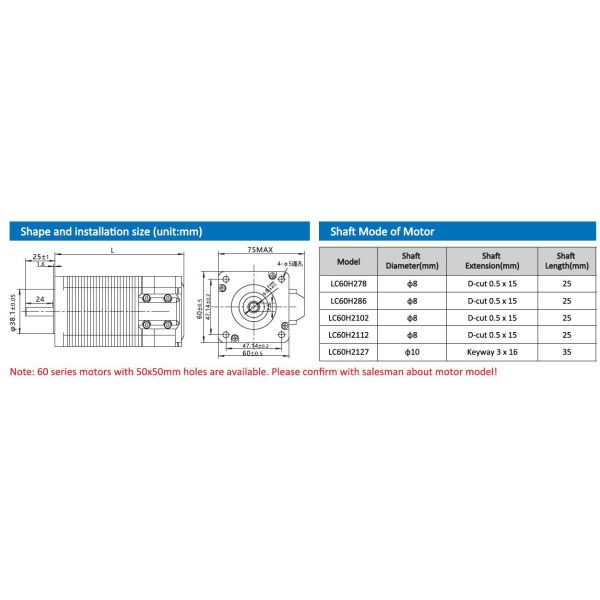

The shaft Diameter for LC60H2127 is 10 with Flat Key ..

3nm Nema 24 2 Phase Close Loop Control System AC DC Digital Servo Stepper Motor Driver Kit

3nm Nema 24 2 Phase Close Loop Control System AC DC Digital Servo Stepper Motor Driver Kit

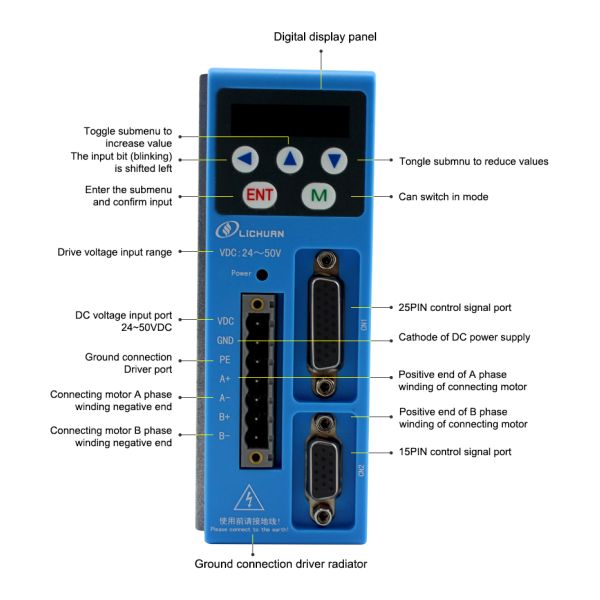

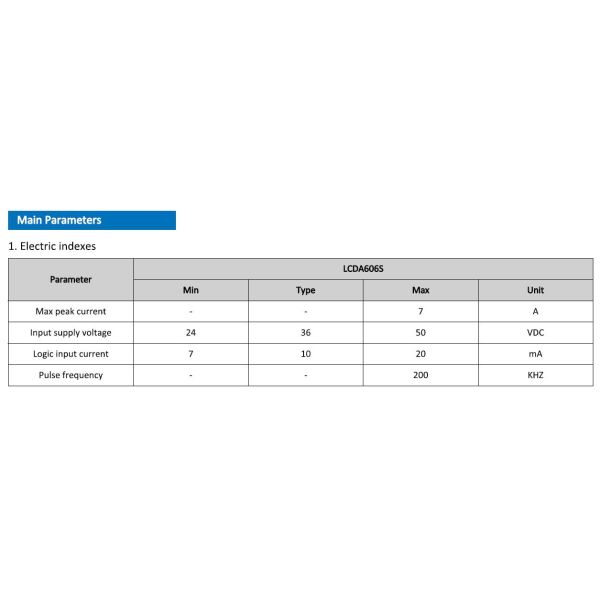

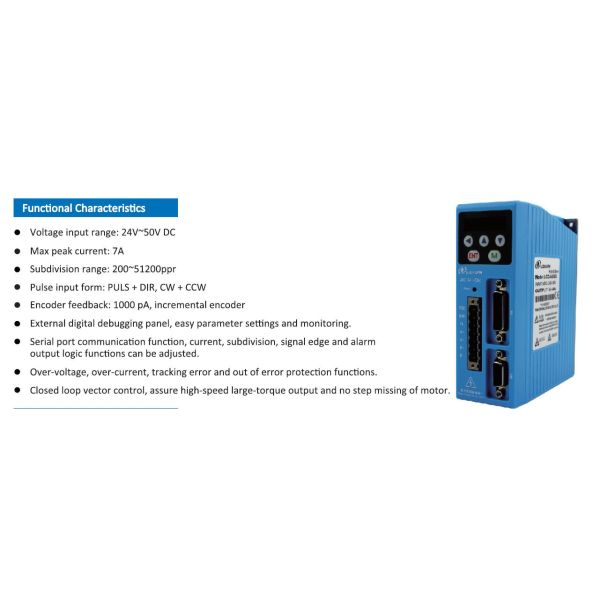

>>>2 phase NEMA24 Servo Closed-loop stepper motor drive /LCDA606S information
3nm Nema 24 2 Phase Close Loop Control System AC DC Digital Servo Stepper Motor Driver Kit3nm Nema 24 2 Phase Close Loop Control System AC DC Digital Servo Stepper Motor Driver Kit3nm Nema 24 2 Phase Close Loop Control System AC DC Digital Servo Stepper Motor Driver Kit
3nm Nema 24 2 Phase Close Loop Control System AC DC Digital Servo Stepper Motor Driver Kit3nm Nema 24 2 Phase Close Loop Control System AC DC Digital Servo Stepper Motor Driver Kit

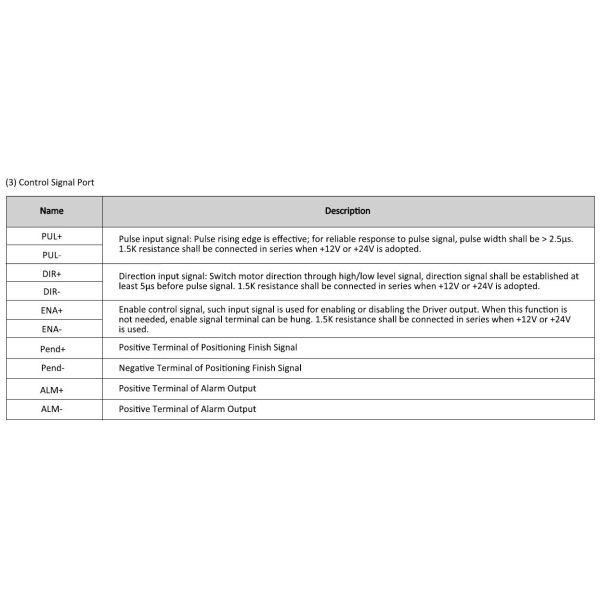

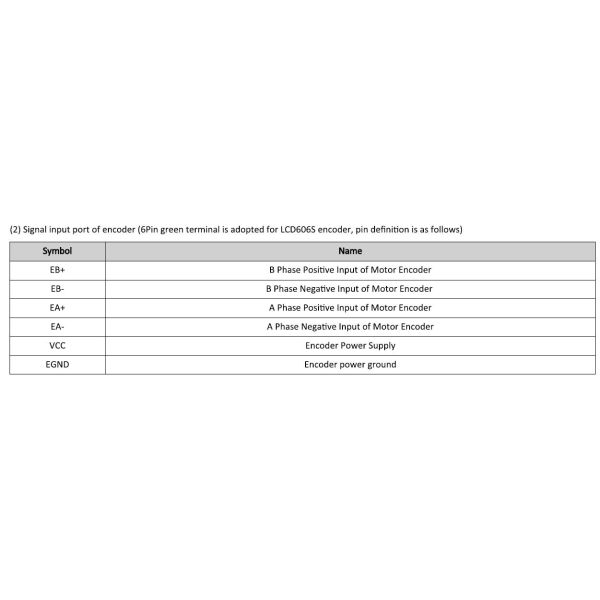

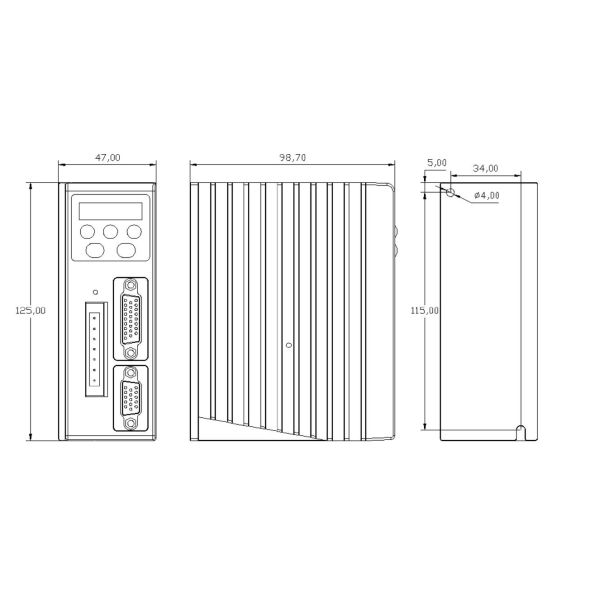

2 phase NEMA24 Servo Closed-loop stepper motor driver /LCDA606S size and wiring
3nm Nema 24 2 Phase Close Loop Control System AC DC Digital Servo Stepper Motor Driver Kit
3nm Nema 24 2 Phase Close Loop Control System AC DC Digital Servo Stepper Motor Driver Kit
About us :
3nm Nema 24 2 Phase Close Loop Control System AC DC Digital Servo Stepper Motor Driver Kit3nm Nema 24 2 Phase Close Loop Control System AC DC Digital Servo Stepper Motor Driver Kit

Shipping

1. For Europe customers,generanlly send by standard shipping,DHL,Fedex,TNT.

2. Russian customers please tell us your full name;

Shipping cost is cheap,generanlly send by CDEK and PONY,less than 20 days delivery,no tax fee and customs chearance easily.

3. Brazil,Argentina,Peru,India customers please give us your tax number after payment.

Buying Notes
1.Product sources
All the stepper and servo series products sold in this store are LICHUAN brand, factory-direct sale, no branch.
2.Model selection
Before purchasing, please contact us to confirm the model number and specifications to avoid any misunderstanding.
3.Payment
Ebay, Paypal and T/T is accepted.
