Nema42 3ph AC 220V 20N.M Digital Display Closed Loop Stepper Motor Drive Kit
Nema42 3ph AC 220V 20N.M Digital Display Closed Loop Stepper Motor Drive Kit
Nema42 3ph AC 220V 20N.M Digital Display Closed Loop Stepper Motor Drive Kit
Nema42 3ph AC 220V 20N.M Digital Display Closed Loop Stepper Motor Drive Kit
Specifications
Model Number :
LC110H3219+LCDA2260H
Brand Name :
LICHUAN
Place of Origin :
Guangdong, China
Certification :
ce
MOQ :
1 set
Price :
$215.99 / set
Phase :
3, 3-Phase
Type :
Permanent Magnet, LC110H3219+LCDA2260H
Current / Phase :
7A
Warranty :
3 months ~ 1 year
Voltage :
AC220V
Application :
High Speed CNC Machine
Torque :
20N.M
Name :
Nema42 closed loop stepper motor kit
motor current :
7A
Motor length :
219+22mm
PPR :
1000
Description

Nema42 3ph AC 220V 20N.M Digital Display Closed Loop Stepper motor drive kit

Packing list for motor and drive with cable :

110 Nema42 servo closed loop motor one set Qty
Nema41 closed loop hybrid servo stepper motor LC110H3219 1pcs
Matched servo digital stepper driver LCDA2260H 1pcs
With 3M Encoder cable line ,if you need more longer ,pls contact us .

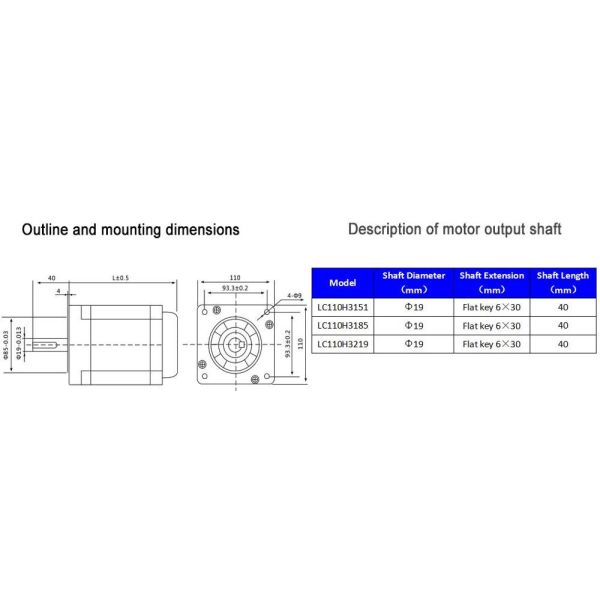

Nema42 3ph AC 220V 20N.M Digital Display Closed Loop Stepper Motor Drive Kit

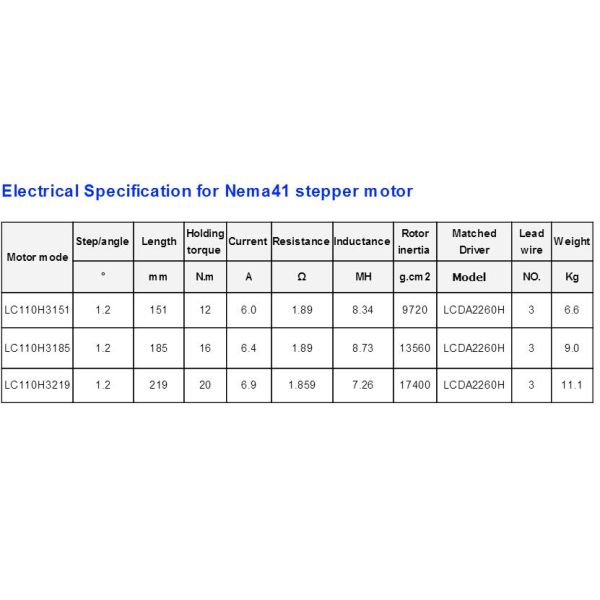

Nema42 3ph AC 220V 20N.M Digital Display Closed Loop Stepper Motor Drive Kit

Matched Driver for LCDA2260H

Parameter/Vaule

LCDA2260H

Minimum

Typical

Maximum

Unit

Max peak current

-

-

6

A

Input voltage

150

220

230

VAC

Logic input current

7

10

16

mA

Pulse frequency

-

-

200

KHZ

2. Interface definition:

Symbol Name Explanation
R

Power input terminal

 150V~230VAC
S
NC Empty terminal
BR1 External braking resistor External braking resistor is connected between BR1 and P +
P+ Linear bus voltage

Symbol

Name

Explanation

U

Motor U phase winding

-

V

Motor V phase winding

-

W

Motor W phase winding

-

PE

 Ground terminal

-

R

S

Control power input

150V~230VAC

(2)Driver encoder CN3 terminal definition

(LCDA2260H encoder signal terminal with 15Pin DP header, pin defined as follows :)

Pin

Symbol

Color

Name

2

EB+

Yellow

Motor encoder B phase positive input

12

EB-

Green

Motor encoder B phase negative input

1

EA+

Black

Motor encoder A phase positive input

11

EA-

Blue

Motor encoder A phase negative input

13

VCC

Red

Encoder + 5V input

3

EGND

White

Encoder power ground

(3) Driver control terminal definition (44 pin DB plug)

Name

Explanation

PUL+

 Pulse input signal: pulse effective edge adjustable, the default pulse rising edge is valid; in order to reliably respond to the pulse signal, the pulse width should be greater than 1.2μs. Such as the use of +12 V or +24 V when the need to string 3K resistance

PUL-

DIR+

Direction input signal: high / low level signal, in order to ensure reliable reversing of the motor, the direction of the signal should be preceded by pulse signal at least 5μs to establish, such as the use of +12 V or +24 V string 3K resistor.

DIR-

ENA+

Enable control signal: This input signal is used to enable or disable. When ENA +, ENA- have input, the drive will cut off the motor phase to make the motor in a free state. When this function is not required, the terminal can be left floating.
Such as the use of +12 V or +24 V when the need to string 3K resistance

ENA-

Pend+

Positioning completion signal positive side

Pend-

Positioning completion signal negative

ALM+

Alarm output positive terminal

ALM-

Alarm output negative termina

Lichuan Driver LCDA2260H Panel Instruction :

Nema42 3ph AC 220V 20N.M Digital Display Closed Loop Stepper Motor Drive Kit
Company Information

Nema42 3ph AC 220V 20N.M Digital Display Closed Loop Stepper Motor Drive Kit

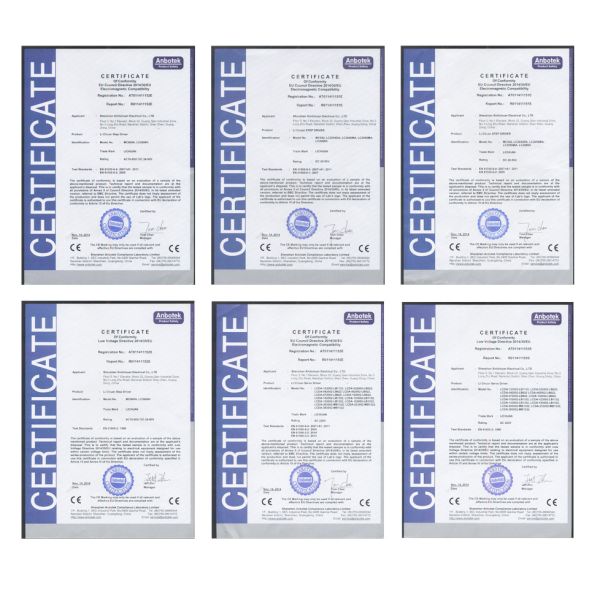

Products Certification :
