Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Specifications
Model Number :
MC556E
Brand Name :
Lichuan
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$17-19.60 / set
Warranty :
3 months ~ 1 year
Product name :
2 Phase Digital stepper motor driver
Product size :
117*78*34mm
Matched motor :
Nema 23 Nema 34 Stepepr Motor
Installation :
Horizontal and vertical available
working voltage :
24-50VDC
Power :
>200W
32 DSP control :
support
Driver type :
digital driver
Maximum peak current :
5.6A
Subdivision range :
200~25600ppr
Description
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Products Description
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556
Lichuan Cheap Motor Stepper Driver 5.6A MC556E Match for 2 Phase Nema 23 Nema 24 Stepper Motor Driver Replace DM556

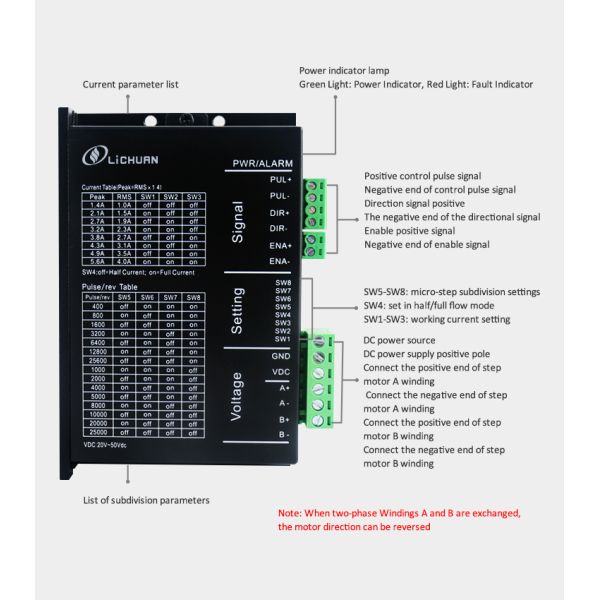

Drive function
