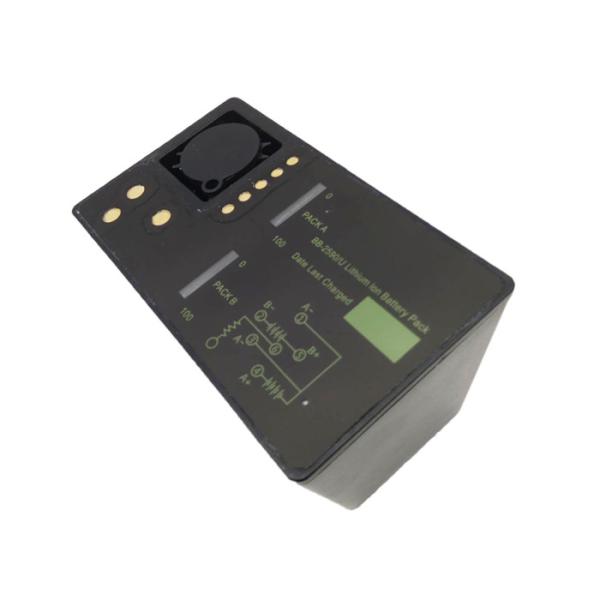

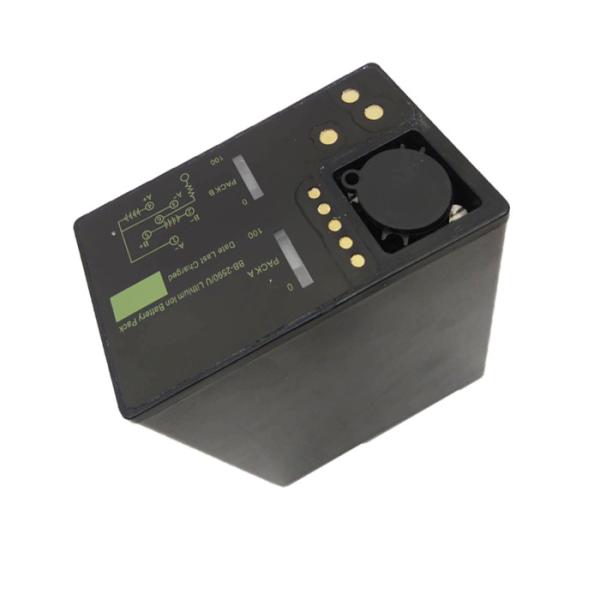

1500g UBBL02 BB 490U Military Rechargeable Batteries
1500g UBBL02 BB 490U Military Rechargeable Batteries
1500g UBBL02 BB 490U Military Rechargeable Batteries
1500g UBBL02 BB 490U Military Rechargeable Batteries
Specifications
Brand Name :
JC
Model Number :
BB2590/U
Certification :
CE ROSH SGS
Place of Origin :
China
MOQ :
10 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3000 pcs/month
Delivery Time :
10~45 days
Packaging Details :
Negotiable
Cell brand :
Japan or Korea
Votalge :
14.4V or 28.8V
Capcity :
7.5Ah or 15 Ah
Terminals :
6 pin
Operating Temp :
-40℃ to +60℃
NSN :
6140-01-554-2347
Military standard :
MIL-PRF-32383
Warranty :
one year
Description

military Ultralife UBBL02 BB-2590/U mission-critical rechargeable battery systems with Widened charge temperature range was appliled to some extreme weather condition for army ,this extreme charge range of BB2590/U battery was designed for high power military lithium battery bb2590 and ultra-low temperature requirements up to -40°C performance. Typically used in over 71 different devices such as Communications gear (SINCGARS, AN/PRC-117, etc.), Robots, and Jammers.Complies with SMBus v1.1 and SBData v1.1.

1. This is high performance rechargeable Lithium Ion battery with instantaneous start up.

2. Dual state of charge [gas gauge" LCD displays.

3. Durable high impact plastic housing and connector enclosure

4. High capacity, performance verified, hermetically sealed, lithium-ion cells.

5. Protection against short circuit and improper charge.

6. High reliability due to all welded Construction.

7. Unit contains safety vented cells

8. 100% final testing

9. Replacement for: BB-390A/U, BB-590/U

NSN: 6140-01-554-2347

BB-390B/U battery , BB-490/U battery , BA-5590/U battery ,BA-5390/U battery , BA-5290/U battery , BA-3590/U battery , and variants.

NO. Items specification
1 Average Voltage Typical: 14.4V or 28.8V Final:10.0V or 20.0V
2 Nominal Capacity 14.4V Mode: 15.0Ah @ 1.0A to10V at 23 ℃
28.8V Mode: 7.5Ah @ 1.0A to 20V at 23 ℃
3 Max Discharge 4.0 A continuous in 28.8V Mode
　 8.0 A continuous in 14.4V Mode
4 Pulse Capability (5 seconds): Up to 18A continuous in 28.8V Mode
5 Weight About 1500 grams
6 Dimensions (H-L-W) 127*112*63mm
7 Operating Temp -20 ℃ to +60℃
8 Storage Temp -20 ℃ to +60℃
9 Exterior/Housing Hard Plastic Case
10 Terminals/Connector 6 pin polarized socked

FEATURES:


--- Dual modes: 15V or 30V
--- High energy density
--- LCD Displays
--- Light weight
--- 5-year shelf life
--- SMBUS data communication
--- Safe: non-pressurized system


APPLICATIONS:


--- PRC-104, PRC-119
--- PRC-138, KY-57
--- Other equipment
