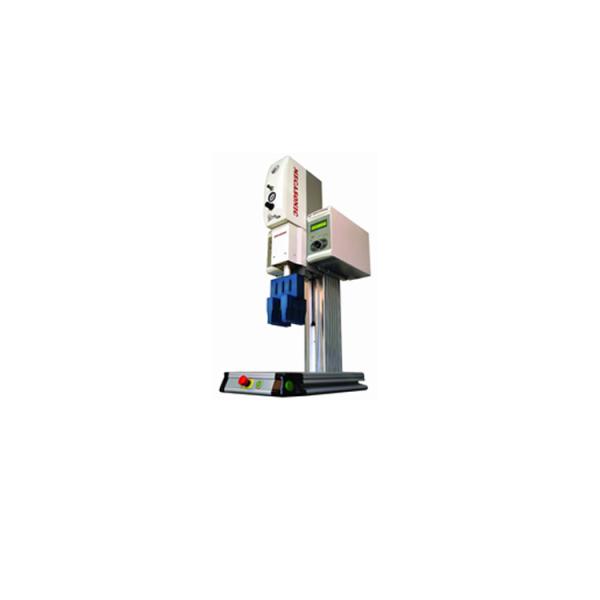

MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding
MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding
MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding
MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding
MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding
MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding
MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding
MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding
MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding
MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding
MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding
MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding
Specifications
Place of Origin :
France
Brand Name :
MECASONIC
MOQ :
1
Price :
$31,500
Voltage :
230V
Frequency :
20KHZ
Welding area :
80*100mm
Dimensions :
450*650*1200mm
Weight :
97 KG
Power :
2000W
Cylinder diameter :
ø63 (options: ø40, ø80, electronic type)
Stroke length :
100mm (option: 200mm)
Height adjustment :
350mm
Amplitude modes :
3 preset modes
Welding modes :
Time, energy, descending height, welding depth
Monitoring parameters :
Time, energy, descending height, welding depth
Generator type :
High Frequency Ultrasonic
Noise level :
Low
Operation security :
Password-protected operation
Description
Product Description
1) Flexible program design, so that the welding machine can run the machine through different adjustment standards. 1.1 Application of welding parts; 1.2 Reading the welding effect; 1.3 The properties of plastics. 2) Various ways to turn off the ultrasonic machine. 3) Predetermine 3 kinds of amplitude modes to adapt to different plastic types of welding parts. 4) The machine can weld according to the time, energy, descending height, welding depth and other modes, and can run the RWS system (Reactive welding system) to ensure the best welding effect.
5) The RWS system independently developed by Mecasoni makes MCS2 a truly intelligent welding machine, which can bring better solutions for your parts welding. 6) Strict monitoring system, after each welding process is completed, 4 parameters (time, energy, descending height, welding depth) will be displayed on the screen. 7) The traceability of the monitoring system (MCS2 can print out the welding results for archiving). 8) Safe operation (Each machine has an operation password setting).
Specification
Cylinder mm
ø63 can choose ø40.80 and electronic type
Stroke mm
100 can choose 200
Height adjustment mm
350
Weight kg
97
Product Paramenters
