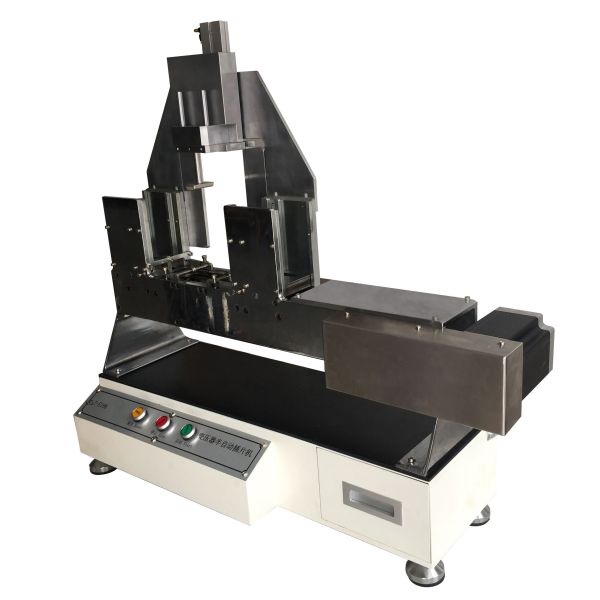

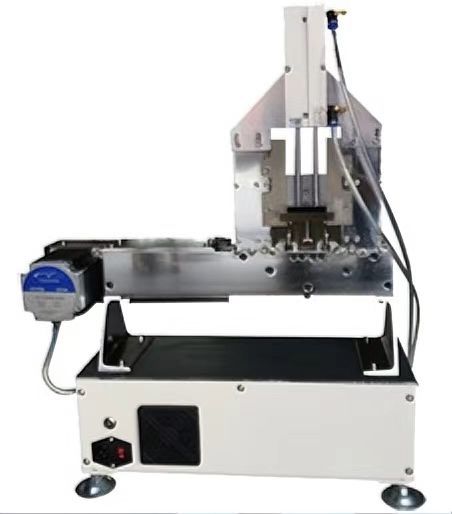

Automatic EI-34 Lamination Stacking Machine with ±0.1 mm Stacking Accuracy, Up to 250 Stacks per Minute, and PLC Control
Automatic EI-34 Lamination Stacking Machine with ±0.1 mm Stacking Accuracy, Up to 250 Stacks per Minute, and PLC Control
Automatic EI-34 Lamination Stacking Machine with ±0.1 mm Stacking Accuracy, Up to 250 Stacks per Minute, and PLC Control
Automatic EI-34 Lamination Stacking Machine with ±0.1 mm Stacking Accuracy, Up to 250 Stacks per Minute, and PLC Control
Specifications
Grounding :
220V grounding, 24V grounding
Weight :
40KG~100KG
Construction Material :
High-strength structural steel
Materialcompatibility :
Suitable for various EI lamination materials
Controlsystem :
PLC control with touch screen interface
Stacking Speed :
Up to 250 stacks per minute
Core Components :
PLC
Model Number :
EI-34
Stackingaccuracy :
±0.1 mm
Payment Terms :
T/T
Cycletime :
1 to 60 seconds
Power :
30~60W
Powersupply :
220V / 380V, 50/60Hz
Positioning Accuracy :
±0.02mm
Operatingtemperature :
0°C to 45°C
MOQ :
1
Price :
3000 USD
Safety Features :
Emergency stop, safety guards
Brand Name :
liangui
Machine Weight :
70KG
Description
Product Overview

Our Automatic EI-34 Lamination Stacking Machine is specially designed for inserting E & I silicon steel laminations into transformer coil bobbins with high precision and efficiency. This machine is ideal for small to medium-sized transformer manufacturers seeking to automate their core stacking process while maintaining consistent quality.

Key Features & Advantages
  • ✅ High Efficiency — Reduces stacking time by up to 70% compared with manual operation, significantly boosting production output
  • ✅ Precise Stacking — Equipped with photoelectric induction and accurate counting system to ensure uniform lamination alignment
  • ✅ Wide Compatibility — Suitable for EI-34 size silicon steel sheets with thickness ranging from 0.35mm to 0.5mm
  • ✅ Low Noise Operation — Optimized mechanical structure for quiet and stable performance in workshop environments
  • ✅ Easy to Operate — User-friendly control panel with simple start/stop operation; minimal training required
  • ✅ Durable Construction — Built with high-quality steel components for long service life and low maintenance
  • ✅ Automatic Protection — Auto-stop function when lamination jams occur, preventing machine damage
Technical Specifications
Parameter Specification
Model EI-34
Lamination Type EI silicon steel sheets
Sheet Thickness 0.35mm – 0.5mm
Stacking Speed Up to 120 sets/min (E+I piece)
Power Supply 220V / 50Hz (customizable)
Operation Mode Automatic
Application Low-frequency transformer core assembly
Applications

Widely used in the manufacturing of low-frequency transformers, power transformers, audio transformers, and other electromagnetic components requiring EI-34 core stacking.

Why Choose Us?
  • Direct manufacturer with competitive factory pricing
  • Customizable specifications to meet your production needs
  • CE certified quality assurance
  • Fast delivery within 15 working days
  • Professional after-sales technical support
