Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display
Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display
Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display
Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display
Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display
Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display
Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display
Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display
Specifications
Brand Name :
QingCheng AE
Model Number :
SWAE
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
30 sets per month
Delivery Time :
Anytime
Packaging Details :
no
Compatibility :
Win7, Win8, Win10
Description
Desktop SWAE Software Acoustic Emission Detector
SWAE is professional software developed by Qingcheng AE Institute for processing, displaying, storing, and replaying acoustic emission signal features and waveforms. The software features a user-friendly interface that is easy to learn and operate, with configurable settings to fit various applications. When combined with SAEU3H detector or RAEM series monitor, SWAE meets the most demanding requirements of industrial applications and laboratory research.
Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display

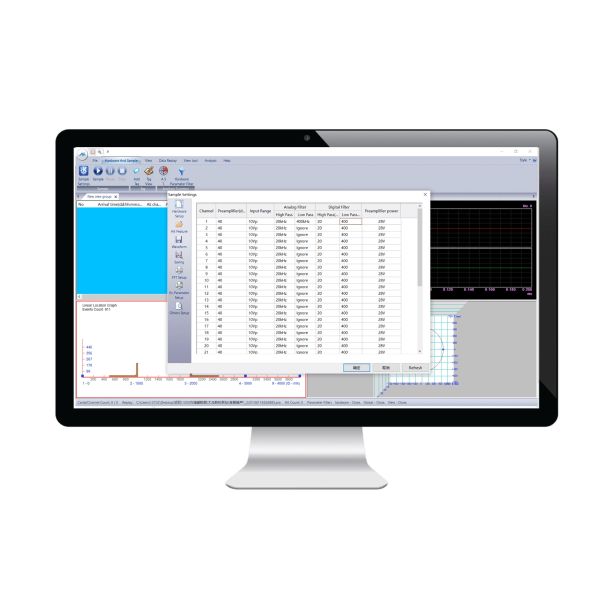

Advanced Firmware Configurations and Acquisition Settings
  • Multiple combinations of analog and digital filters
  • 0V, 5V, 28V phantom power supply options
  • HIT feature settings: Threshold, HDT, HLT, PDT
  • Comprehensive waveform acquisition settings including triggering mode, sampling rate and length, and pre-sampling
  • Separate storage of parameters and waveforms
  • FFT settings and extended parameters configuration
  • Real-time tag addition during collection
  • AST pulse width and pulse interval settings with automatic channel testing
Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display

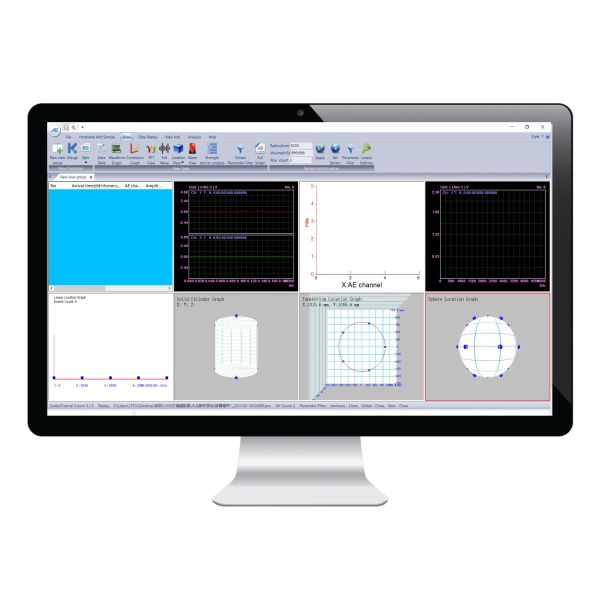

Comprehensive View Display Options
  • Customizable interface layout and background colors
  • Parameter acquisition customization: AMP, ASL, Energy, Duration, Counts, Rise time, RMS, Rise counts
  • Simultaneous multi-channel waveform display
  • Customized parameter correlation graphs, histograms, scatter diagrams, linear graphs with color selection
  • Real-time FFT and full waveform display
  • 3D positioning diagram with full-screen zooming capabilities: linear, planar, cube, cylinder, tank bottom, sphere location
  • Alarm display based on parameter settings
  • Full screen display option
Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display

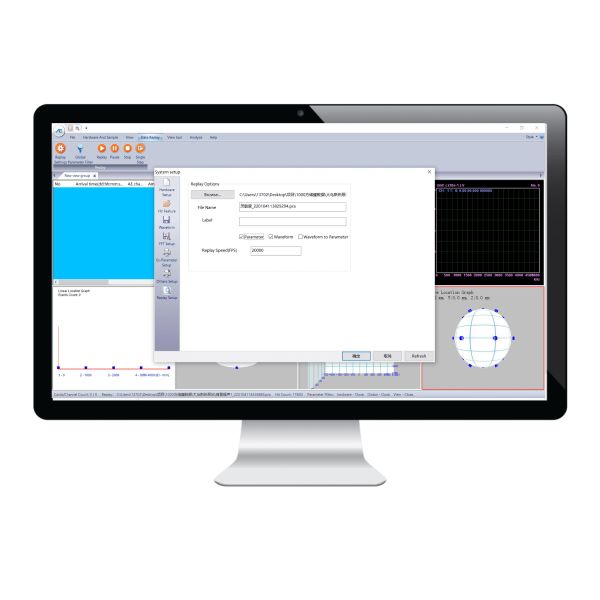

Complete Replay Functionality
  • Simultaneous or separate replay of parameters and waveforms
  • Waveform generation from parameters
  • Parameter re-filtering as required
  • Adjustable replay speed settings
Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display

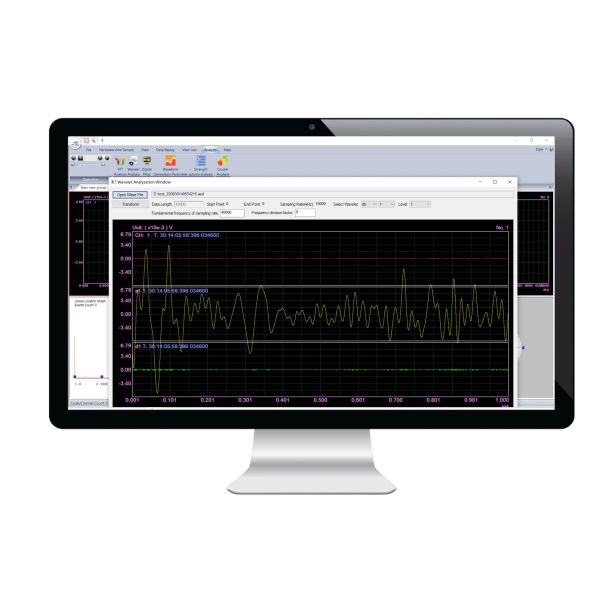

Multiple Data Analysis Tools
  • FFT analysis
  • Wavelet analysis
  • Intensity and activity analysis
  • Clustering analysis
Company Introduction
Shanghai Liangui Technology Co., Ltd. is committed to promoting global prosperity and development through technology, specializing in Intelligent Equipment & Automation Solutions to help enterprises improve production processes and minimize costs.
We are an intelligent equipment & automation solution integration service provider with a professional foreign trade sales team and experienced technical support team. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robots, and Mechanical and Electrical Equipment.
Our NDT testing division specializes in R&D, production, sales, and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detectors, Ultrasonic Thickness Gauges, and other testing instruments. Our R&D team develops sensors, electronic measurement software and hardware, and customizes non-standard automated and robotic inspection equipment for industrial applications including aerospace, railway, automotive, oil & gas, manufacturing, process industry, and power generation sectors.
Our objective is to help clients meet high safety standards with efficient inspection solutions that reduce costs and increase process efficiency, ensuring industrial facilities and power generation operate safely, efficiently, and excellently.
Desktop SWAE Software Acoustic Emission Detector with 5V 28V Phantom Power and Multi-Channel Waveform Display
Service Support
  • Technical support and instructional videos
  • Remote technical problem diagnosis
  • 24/7 online after-sales support
  • One-year warranty on all parts
Our Advantages
  • Considerate and thoughtful customer service
  • Extensive experience in non-destructive testing and industrial automation
  • Strict product quality assurance
  • Superior cost-effectiveness
Frequently Asked Questions
What is the price term?
FOB Guangzhou
What are your payment terms?
50% deposit with PO by TT, 50% balance payment before delivery
How about your specific warranty service?
All products include a one-year warranty period with 24/7 after-sales support and immediate response during working hours
Are you a trading company or a factory?
We are a technology company with our own factory, featuring a professional team for product development and customized automation solutions
