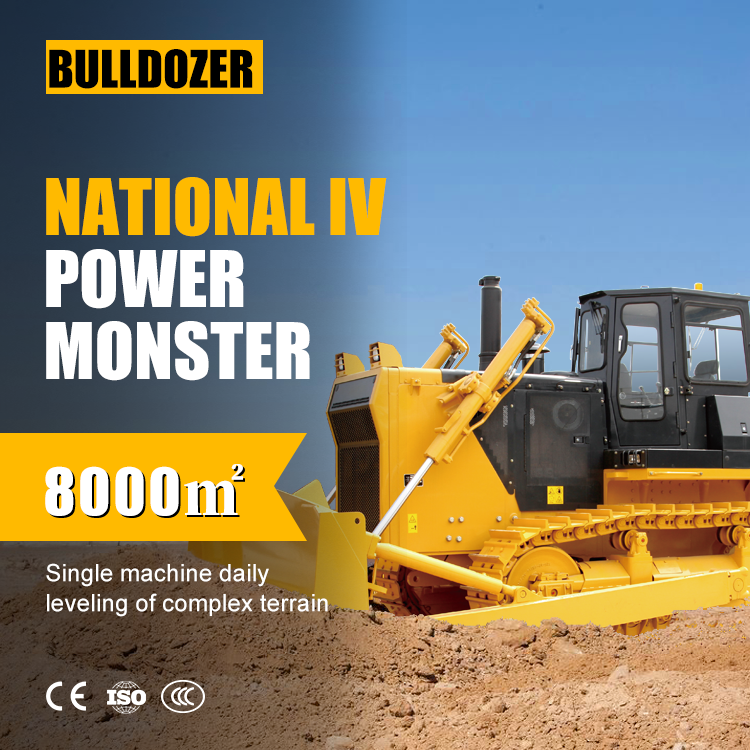

320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
Specifications
Place of Origin :
Shandong, China
Brand Name :
LUHONGDA
Model Number :
LHD32 Crawler Dozer
MOQ :
1
Color :
Yellow
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Bearing, Motor, Gear
Moving Type :
Crawler Bulldozer
Machine Weight :
34500 KG
Dimension(Long * Breadth * High) :
6276*2700*3760
Make :
LUHONGDA
Dozing Capacity :
10m³, 6.5m³, 8m³
Warranty :
1 Year
Hydraulic Cylinder Brand :
Famous brand
Hydraulic Pump Brand :
Famous brand
Hydraulic Valve Brand :
Famous brand
UNIQUE SELLING POINT :
High operating efficiency
Rated revolution :
2000rpm
Gross power :
257kW(350hp)@2000rpm
Net power :
235kW(320hp)@2000rpm
Number of cylinder-borexstroke :
6-140X152mm
Displacement :
14.01L
Max. torque :
1509N.m@1400rpm
Cooling system :
Mechanic fan
Blade type :
Coal-U
Ground clearance :
500mm
Description
320HP Crawler Bulldozer - Standard Bulldozer Crawler Dozer
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects 320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects 320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
Technical Specifications
ITEMS SD32 SD32C SD32D SD32R SD32W
Engine GSNT-C345S31
Emission China-III
Rated revolution 2000rpm
Gross power 257kW(350hp)@2000rpm
Net power 235kW(320hp)@2000rpm
Number of cylinder-borexstroke 6-140X152mm
Displacement 14.01L
Max. torque 1509N.m@1400rpm
Cooling system Mechanic fan
Operating weight(kg) 34500 34150 34150 35230 35000
Blade type Straight-tilt /Angle/ Semi-U Coal-U Straight-tilt /Angle/ Semi-U Waste handling blade Straight-tilt /Angle/Semi-U
Blade capacity 7.2/4.8/9m³ 12.1m³ 7.2/4.8/9m³ 18.3m³ 7.2/4.8/9m³
Machine height (without ROPS) 3760mm 3760mm 3760mm 3760mm 3760mm
Track grouser height 72mm 72mm 72mm 72mm 72mm
Ground clearance 500mm 500mm 500mm 500mm 500mm
Machine length (without draw bar) 6276mm 6276mm 6276mm 6276mm 6276mm
Machine length (with draw bar) 6610mm 6610mm 6610mm 6610mm 6610mm
Max. lifting height of blade 1560/1703/1560mm 1560mm 1560/1703/1560mm 1560mm 1560/1703/1560mm
Max. digging depth of blade 560/630/560mm 560mm 560/630/560mm 560mm 560/630/560mm
Digging angle of blade 55°±3°(deg.)
Blade width 4130/5000/4130mm 4806mm 4130/5000/4130mm 4502mm 4130/5000/4130mm
Blade height 1590/1140/1710mm 1710mm 1590/1140/1710mm 2314mm 1590/1140/1710mm
Width from end of left track shoe to end of right track shoe (standard) 2700mm 2700mm 2700mm 2700mm 2700mm
Our bulldozer is engineered for powerful performance and superior reliability on all terrains. Equipped with a high-efficiency engine and advanced hydraulic system, it delivers strong pushing force, excellent maneuverability, and low fuel consumption -- ideal for construction, road building, and mining projects.
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects 320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects 320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects

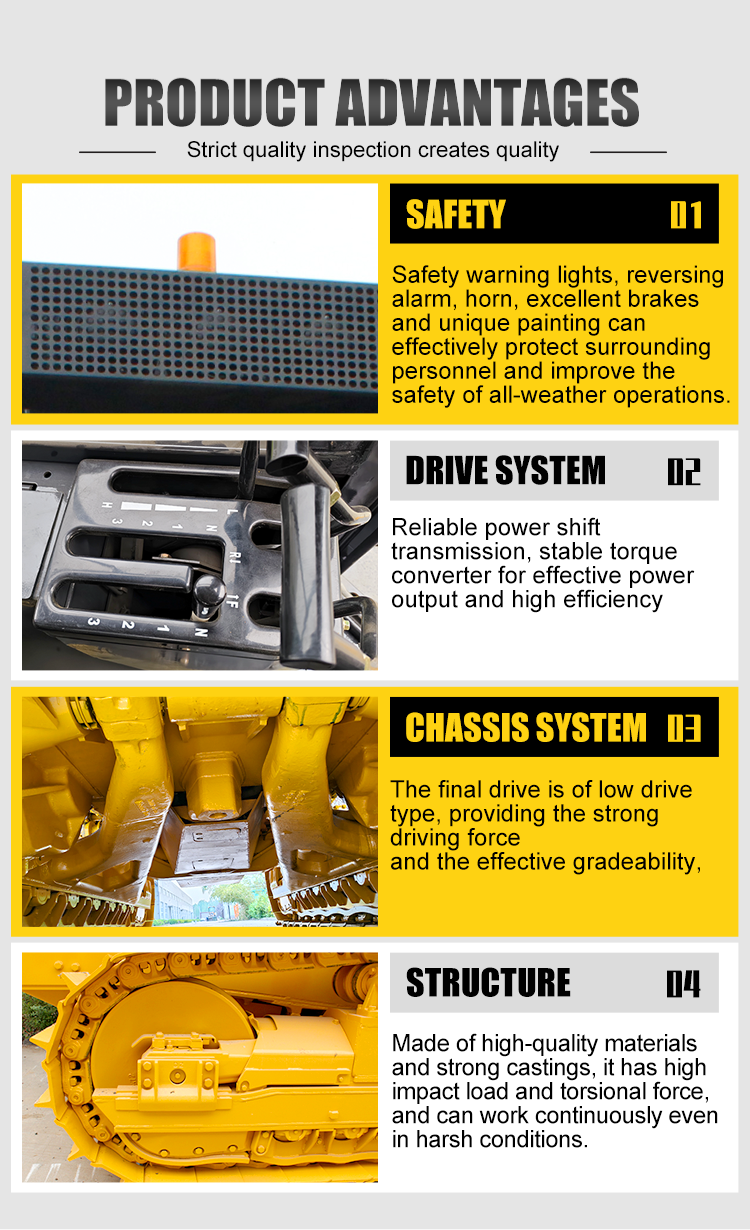

Main Features

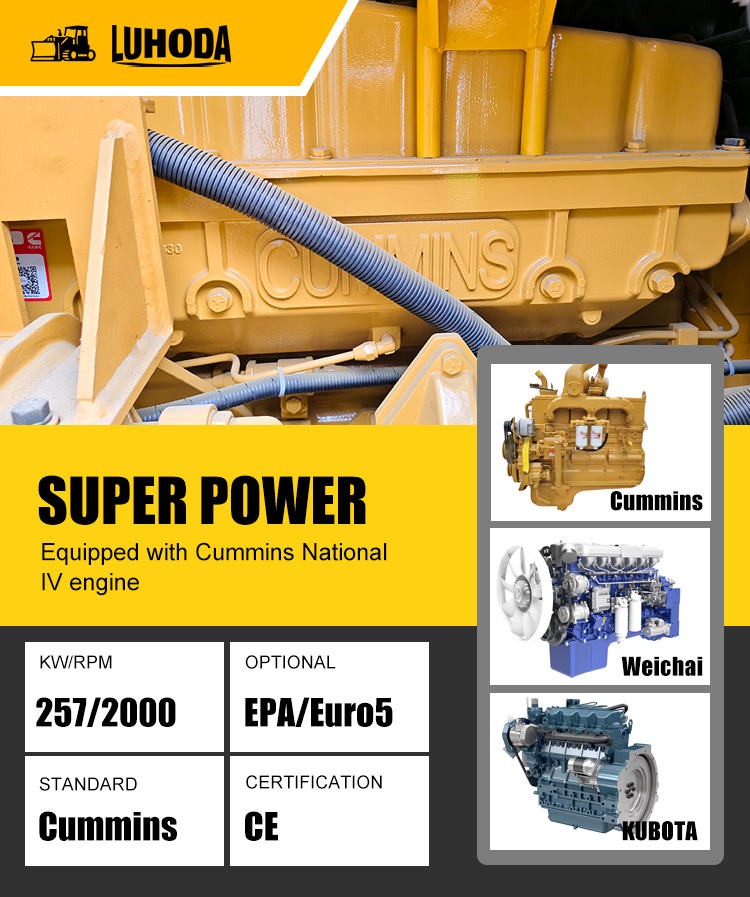

  • Powerful Engine: Equipped with a reliable diesel engine for strong power output and fuel efficiency
  • Advanced Hydraulic System: Ensures smooth operation and precise control

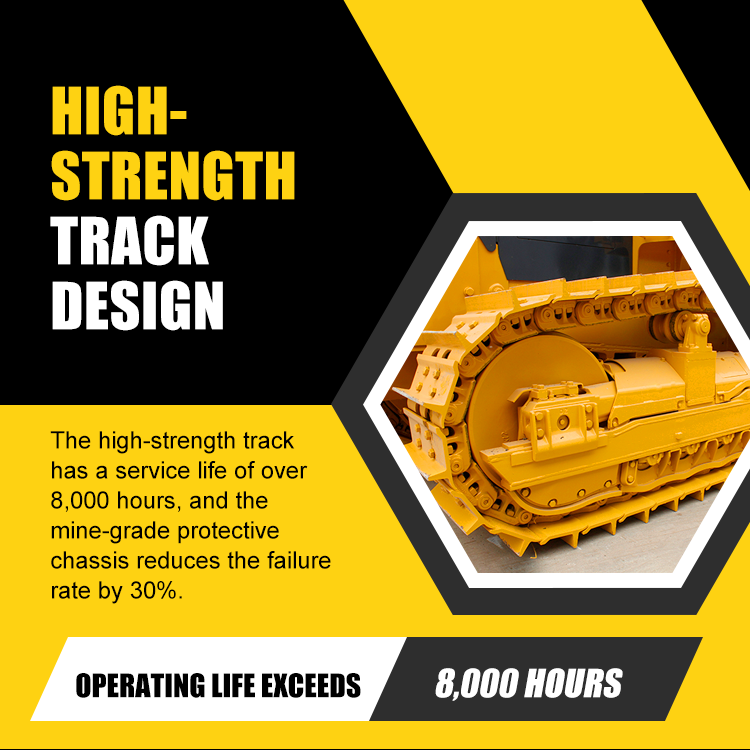

  • Heavy-Duty Chassis: Designed for stability and long service life, even under tough working conditions

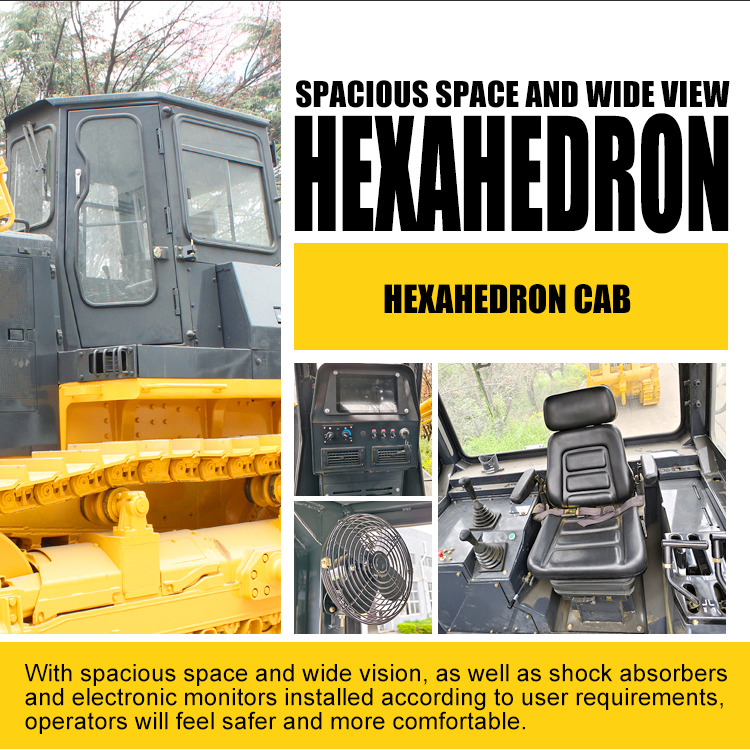

  • Comfortable Cabin: Ergonomic seat, wide visibility, and easy-to-operate controls for reduced operator fatigue
  • Easy Maintenance: Simple structure and accessible components lower maintenance costs

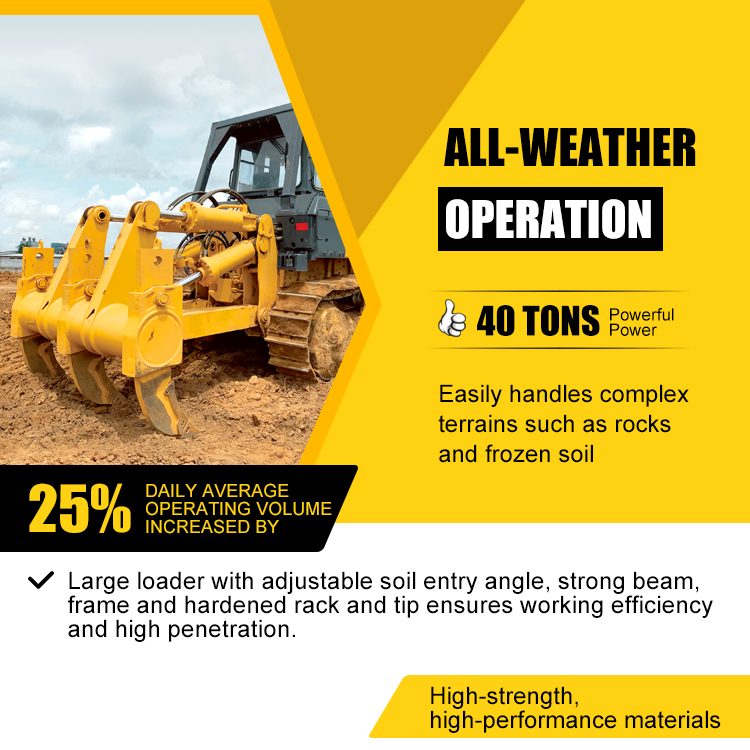

  • Versatile Blade Options: The dozer blade can be replaced with attachments such as rippers, buckets, or snow blades to meet different working requirements
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
We are a professional manufacturer of construction machinery with over 15 years of experience. Our factory is equipped with advanced production lines, strict quality control systems, and a professional R&D team. Every machine is thoroughly tested before delivery to ensure stable performance and durability.
Customization & OEM Service
  • Optional engines and attachments available
  • Custom colors and logos accepted
  • Support for OEM/ODM orders
  • Fast production and global shipping
After-Sales Service
  • 1-year warranty for main components
  • Online technical support available 24/7
  • Spare parts supply for long-term maintenance
320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects 320HP Crawler Bulldozer with High Operating Efficiency and Heavy-Duty Chassis for Construction Projects
Frequently Asked Questions
Q1: What is the delivery time?
A1: Usually within 20-30 days after receiving the deposit.
Q2: Can I customize the bulldozer?
A2: Yes, we can customize engine brands, blade types, ripper, and color according to your requirements.
Q3: What is your warranty policy?
A3: We offer a 12-month warranty or 2,000 working hours, whichever comes first.
Q4: Do you provide spare parts and service overseas?
A4: Yes, we provide spare parts supply and online technical support to assist you worldwide.
Q5: What payment terms do you accept?
A5: T/T, L/C, or trade assurance order are available.
