Specifications
Brand Name :
LeoTech
Certification :
CE
Place of Origin :
China
MOQ :
1
Delivery Time :
5-8 work days
Payment Terms :
T/T
Model Number :
CBCT
Product Name :
Dental Implant Orthodontic CBCT System
Detector :
Me2530X
Active area(mm²) :
250×300
FOV(mm²) :
150×120 230×180 80×80
Dimensions(mm³) :
337×280×35
Frame System weight（kg） :
196
Frame System size(mm³) :
1037×1297×2365
Power(kW) :
1.2
Electric source（V) :
AC220±10%
mA range(mA) :
1-20
Description
Dental Implant Orthodontic CBCT System
Product Overview

The dental radiography system provides comprehensive imaging of dental conditions, capturing all-around views of dental tissues, jaw joints, and related structures. This advanced system assists doctors with pre-surgical program instructions and enables scientific postoperative observation.

Key Features
  • Large size (250mm X 300mm) flat panel detector with extensive dynamic range for full skull imaging in a single scan
  • Conventional CBCT design achieving 3-in-1 functionality
  • Next-generation cephalometric imaging technology with compact footprint
  • Ultra-fast scanning algorithm: CBCT up to 16s, Pano up to 12s
  • Innovative frame design with maximum imaging field of view up to 230mm X 180mm
  • 1.2kW high-power ray source with 15° anode target angle for large FOV imaging at short SID
  • Implant simulation with automatic collision detection between multiple implants and nerve canal
  • Nerve canal depiction for clear 3D positioning information
  • Comprehensive implant database compatible with most market systems
  • Metal Artifact Reduction software to minimize effects of dense radiopaque objects
Mechanical Movements
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

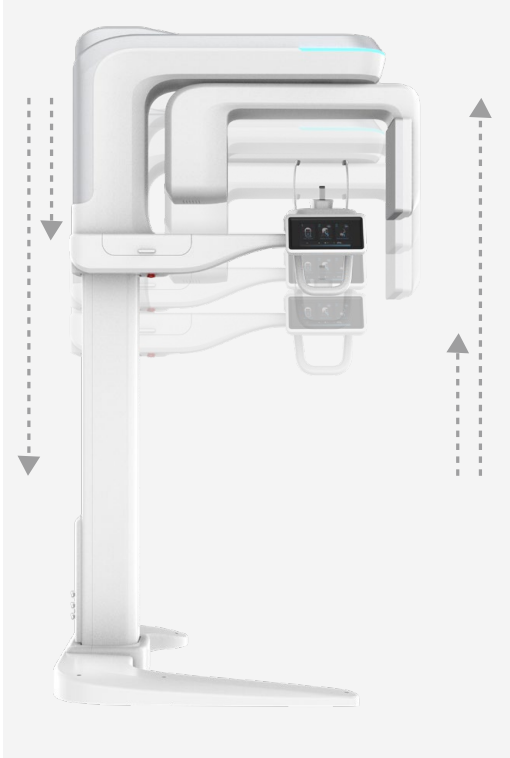

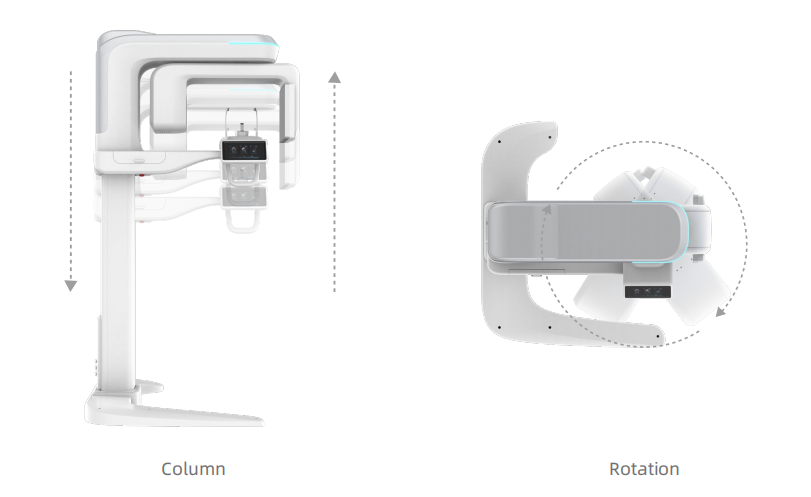

Column up/down
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

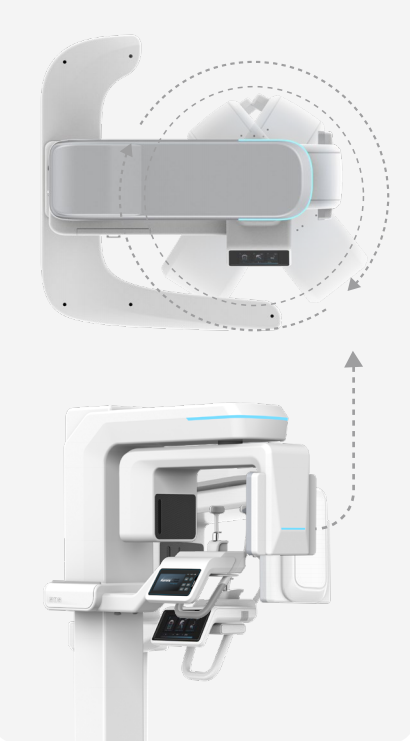

U-arm rotation
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

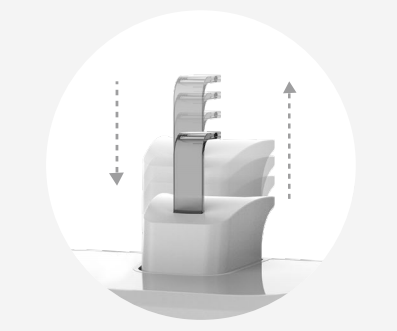

Tooth bracket up/down
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

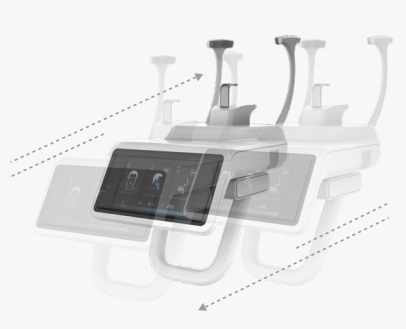

Chin rest moves back / forth
System Advantages
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

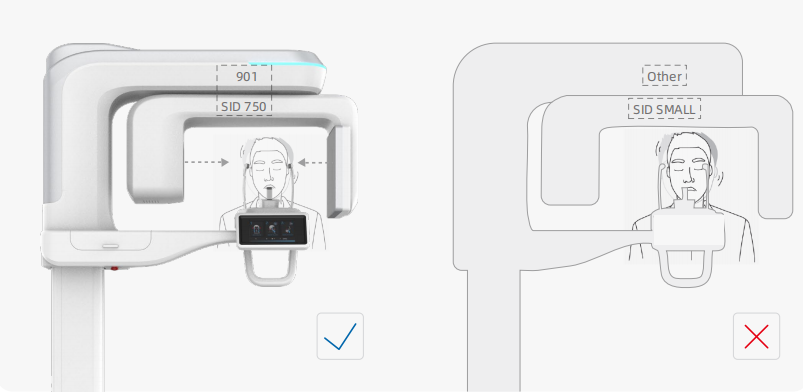

Larger SID reduces impact possibility
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis
Mechanical motion greatly reduces noise
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

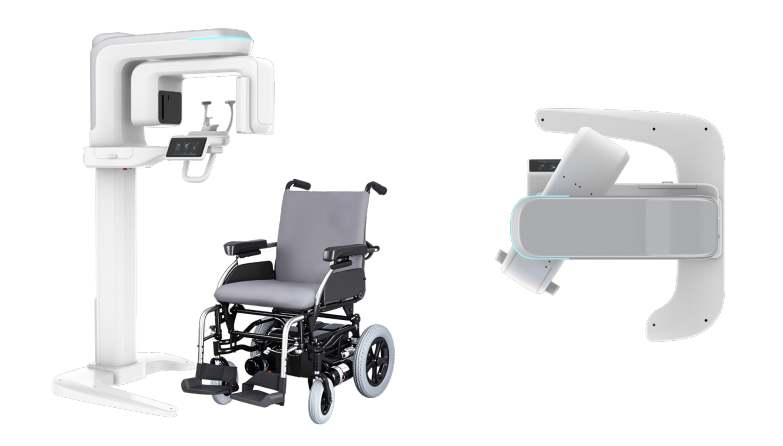

Open design supports wheelchairs
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

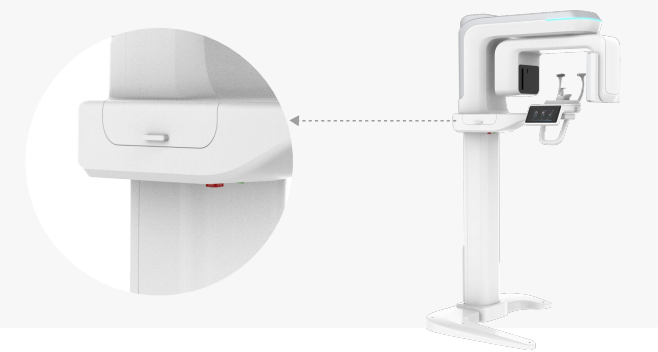

Humanized design storage box
Application Features
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

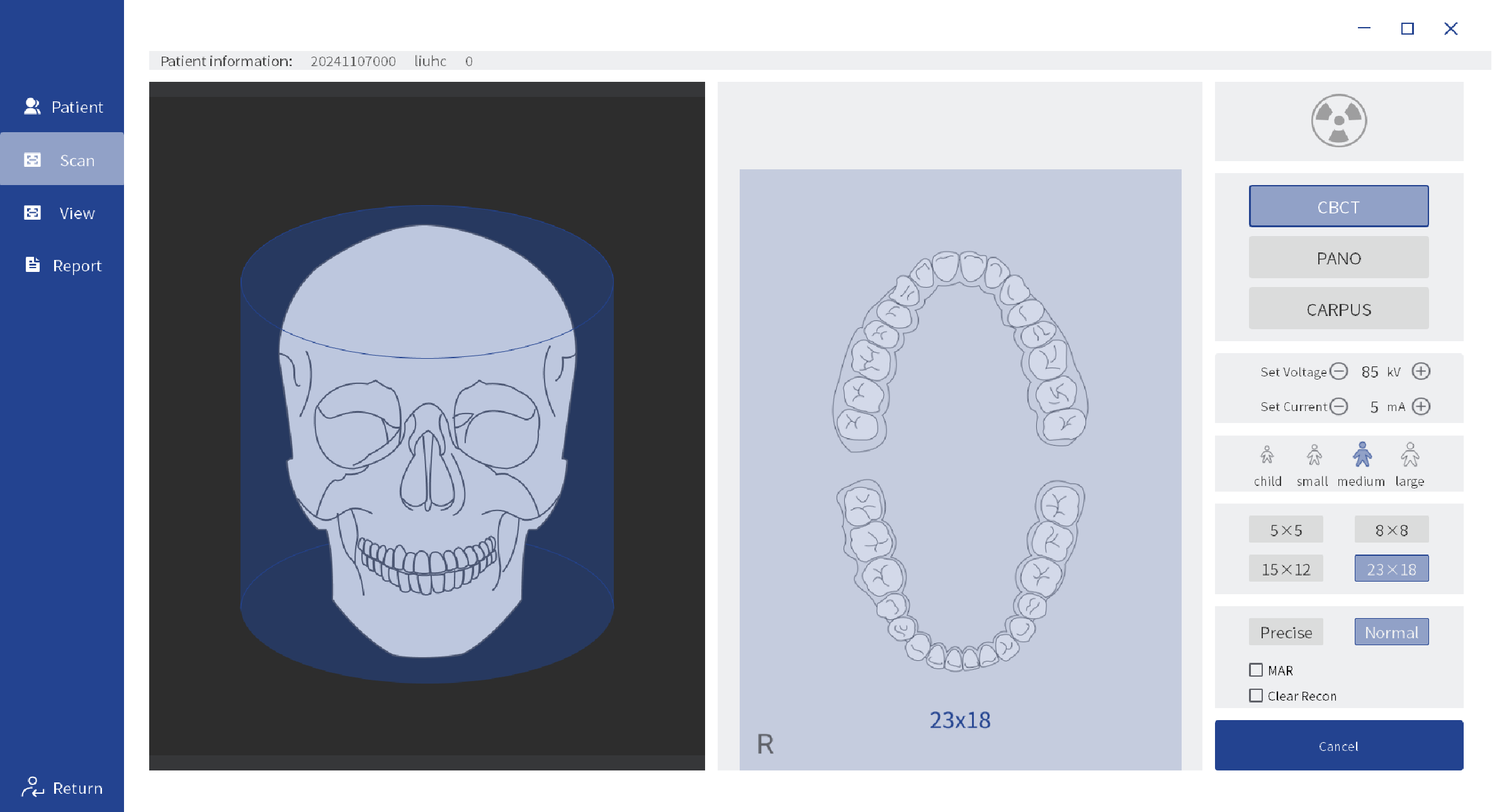

Simplified camera program design
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

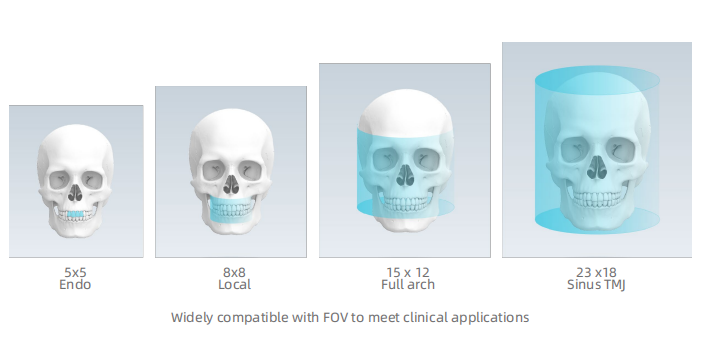

World's largest FOV 23x18 with 70μm high resolution voxels
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

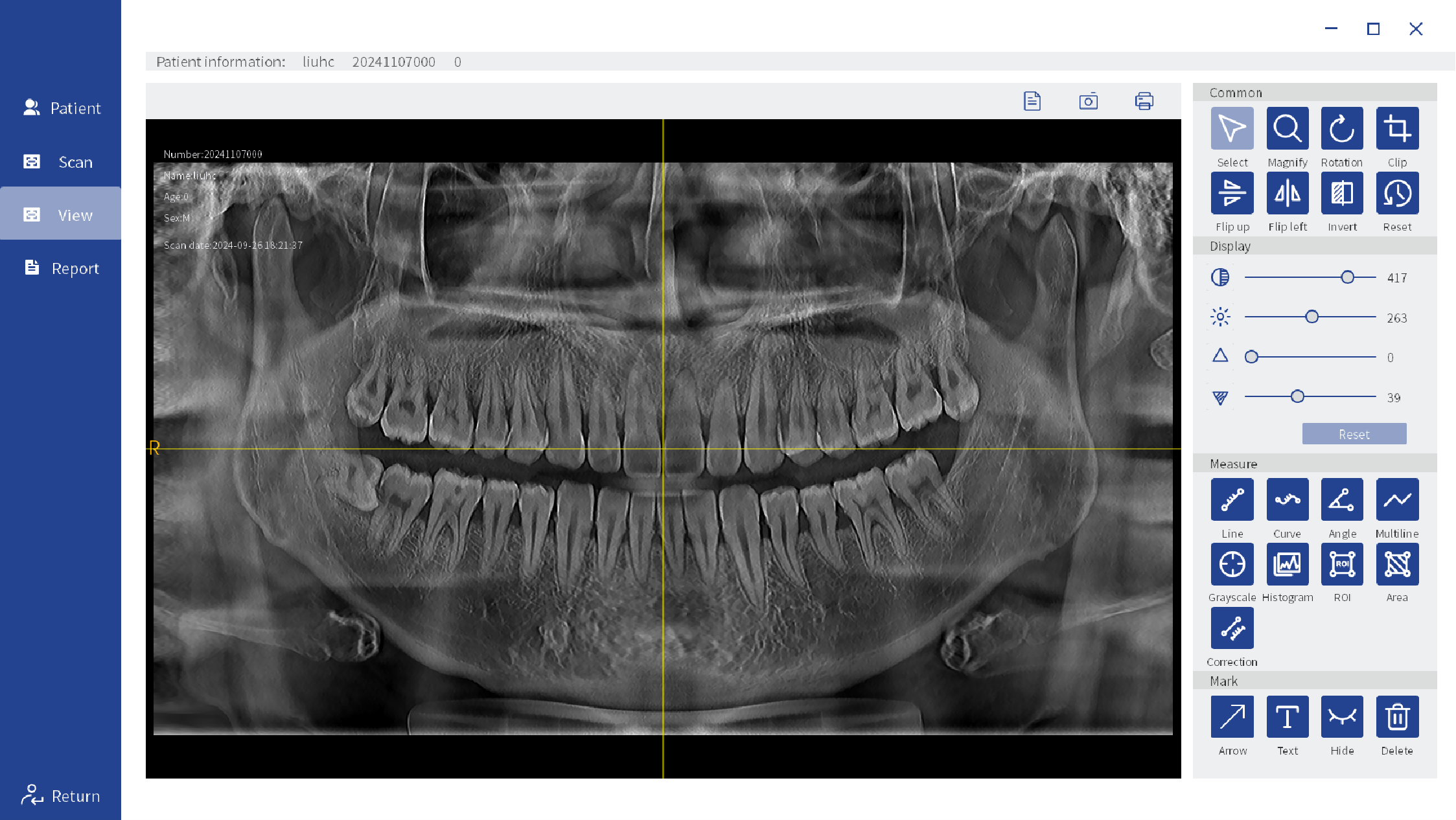

Complete and easy-to-use software functions
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

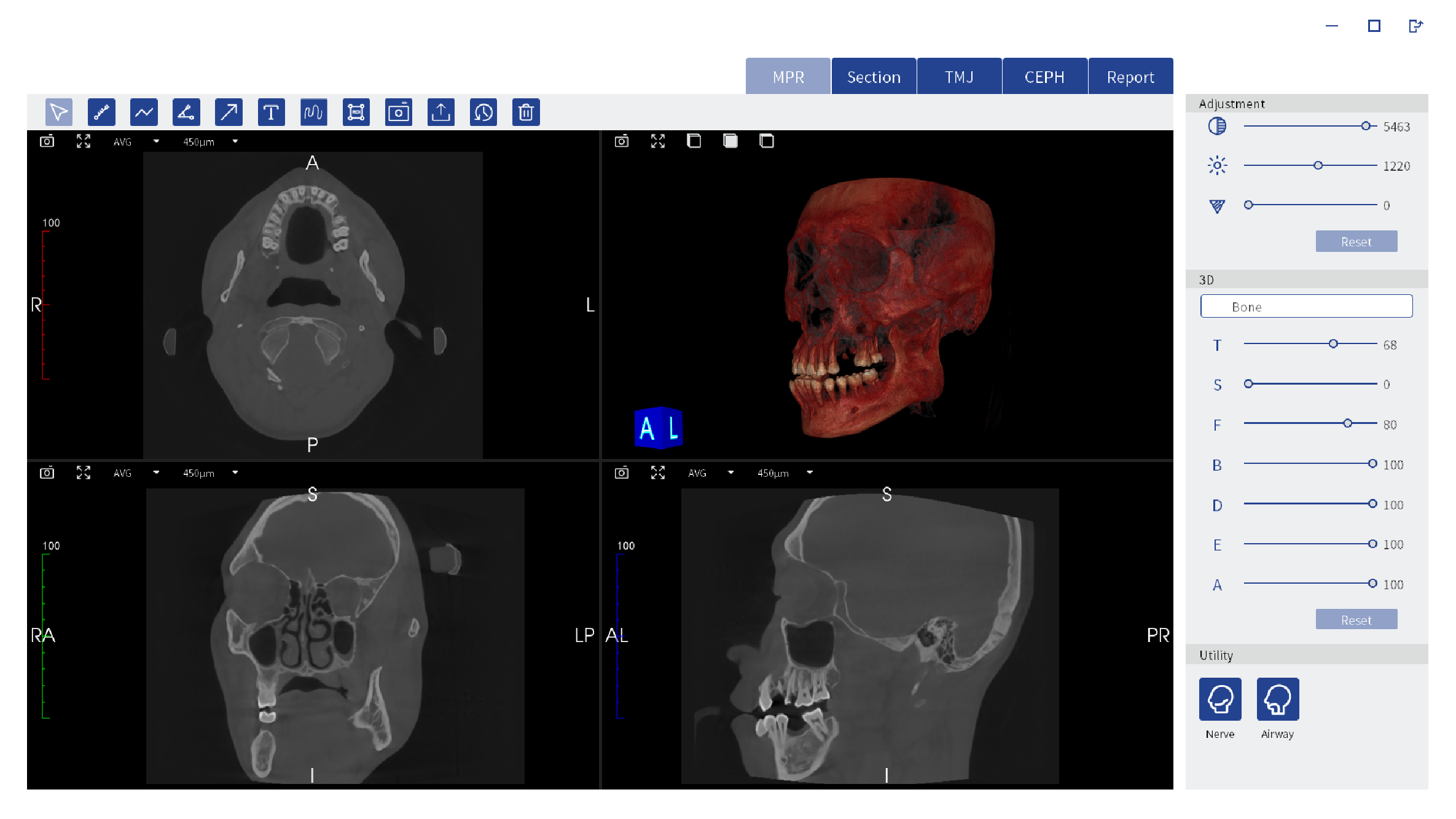

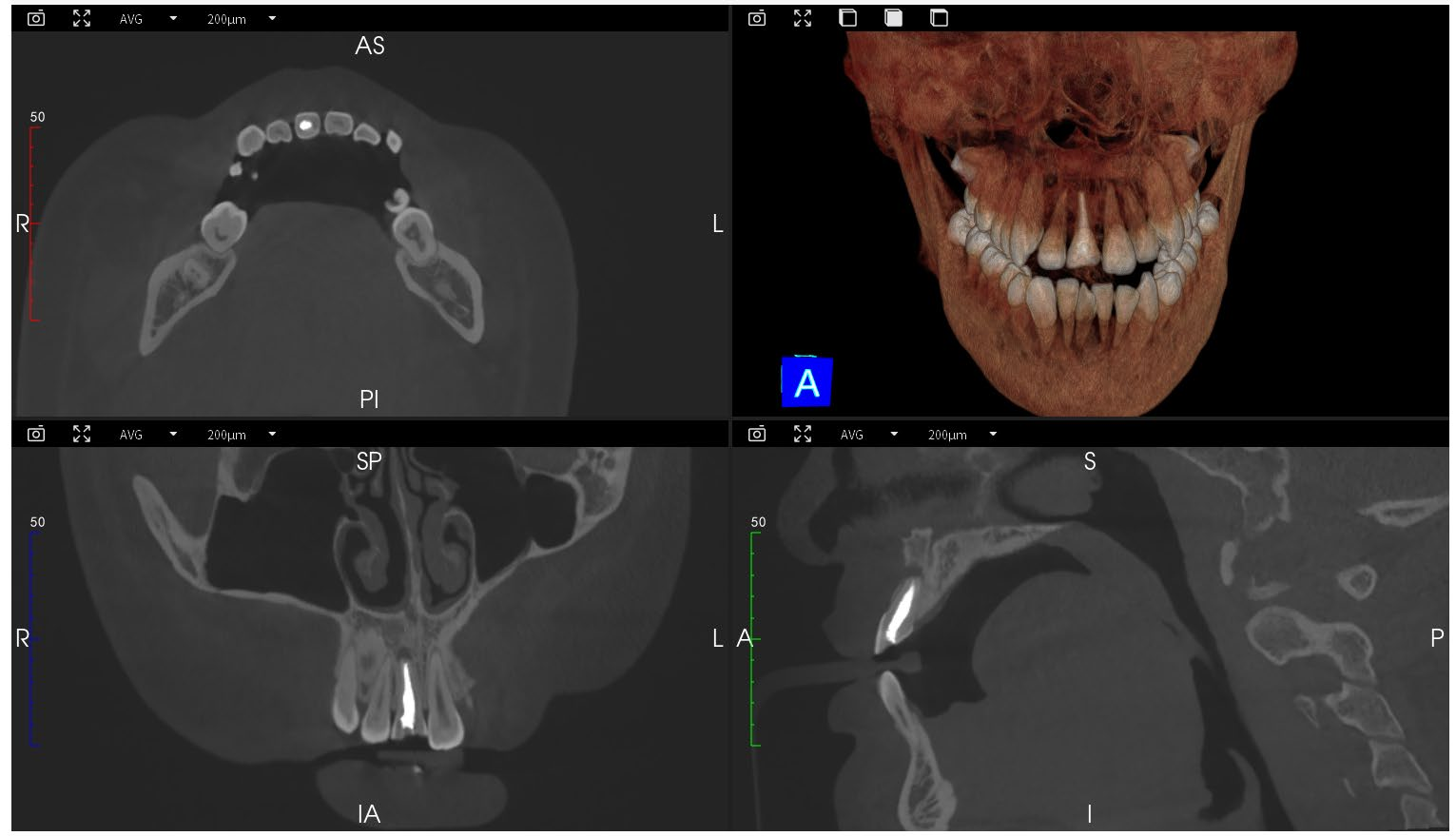

Includes MPR Sectioning, TMJ, CEPH and report modes
Advanced Functions
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis
Full function mode meets various clinical needs
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

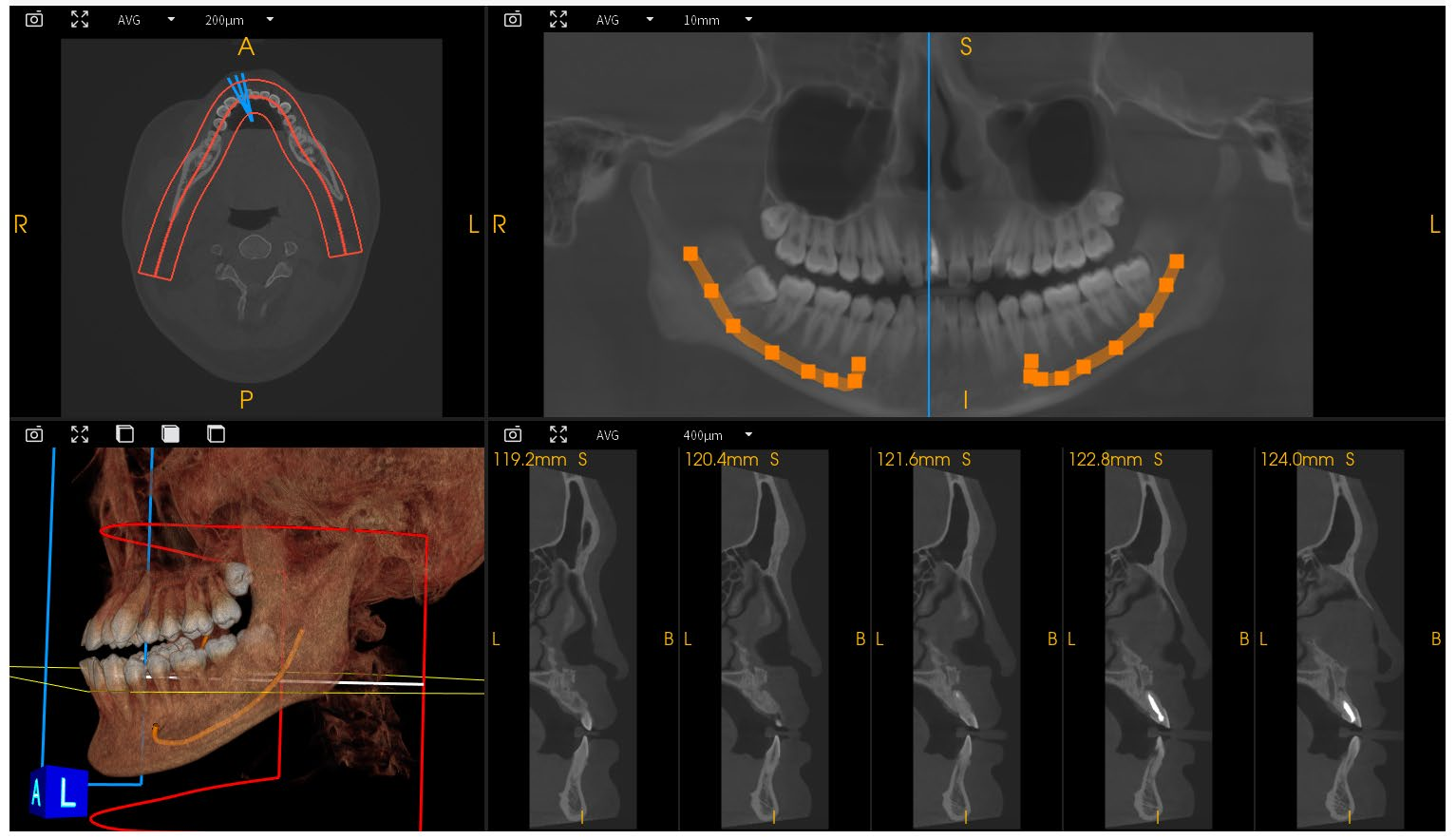

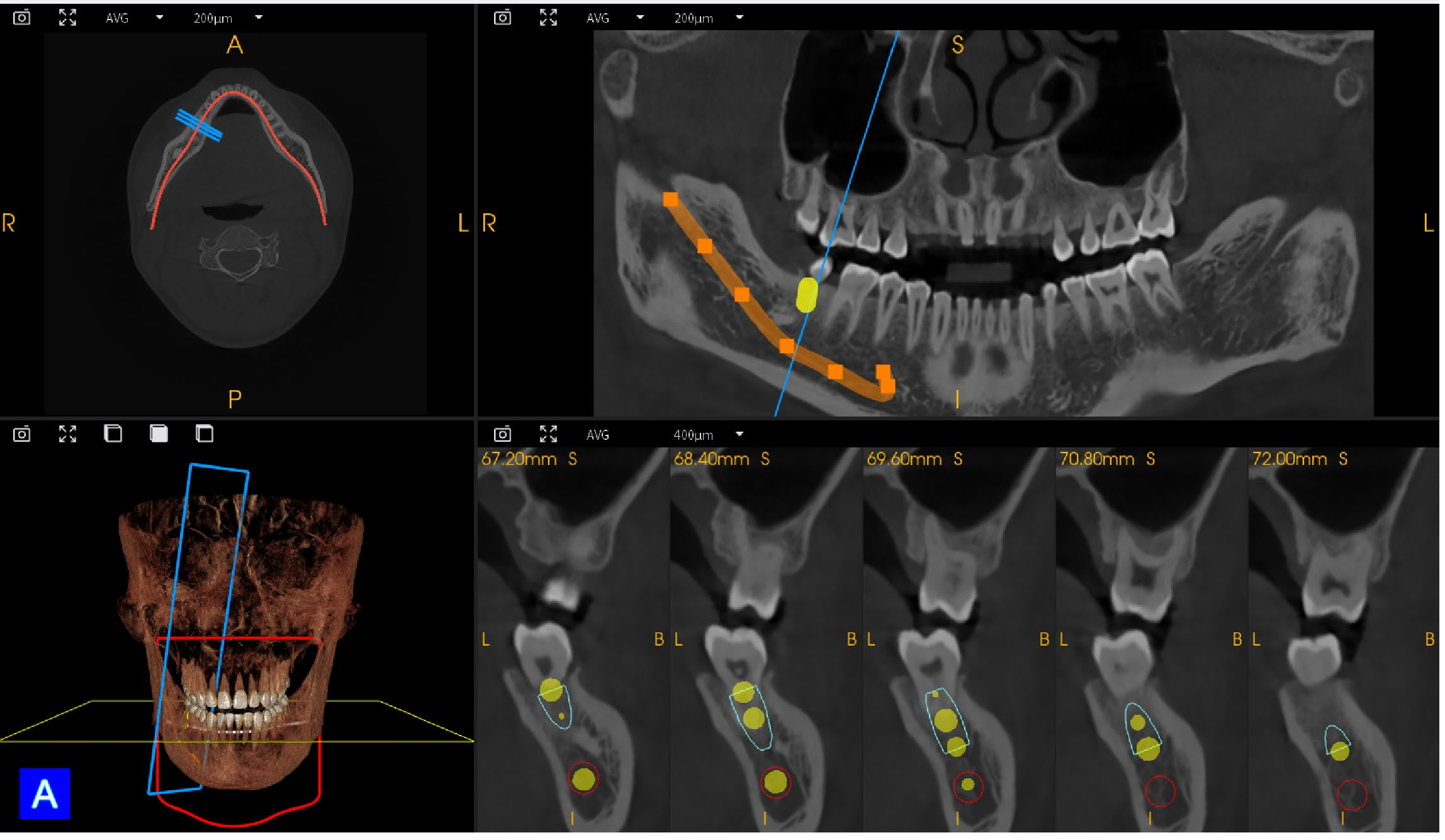

Dental arch and nerve mapping to reduce surgical risks
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

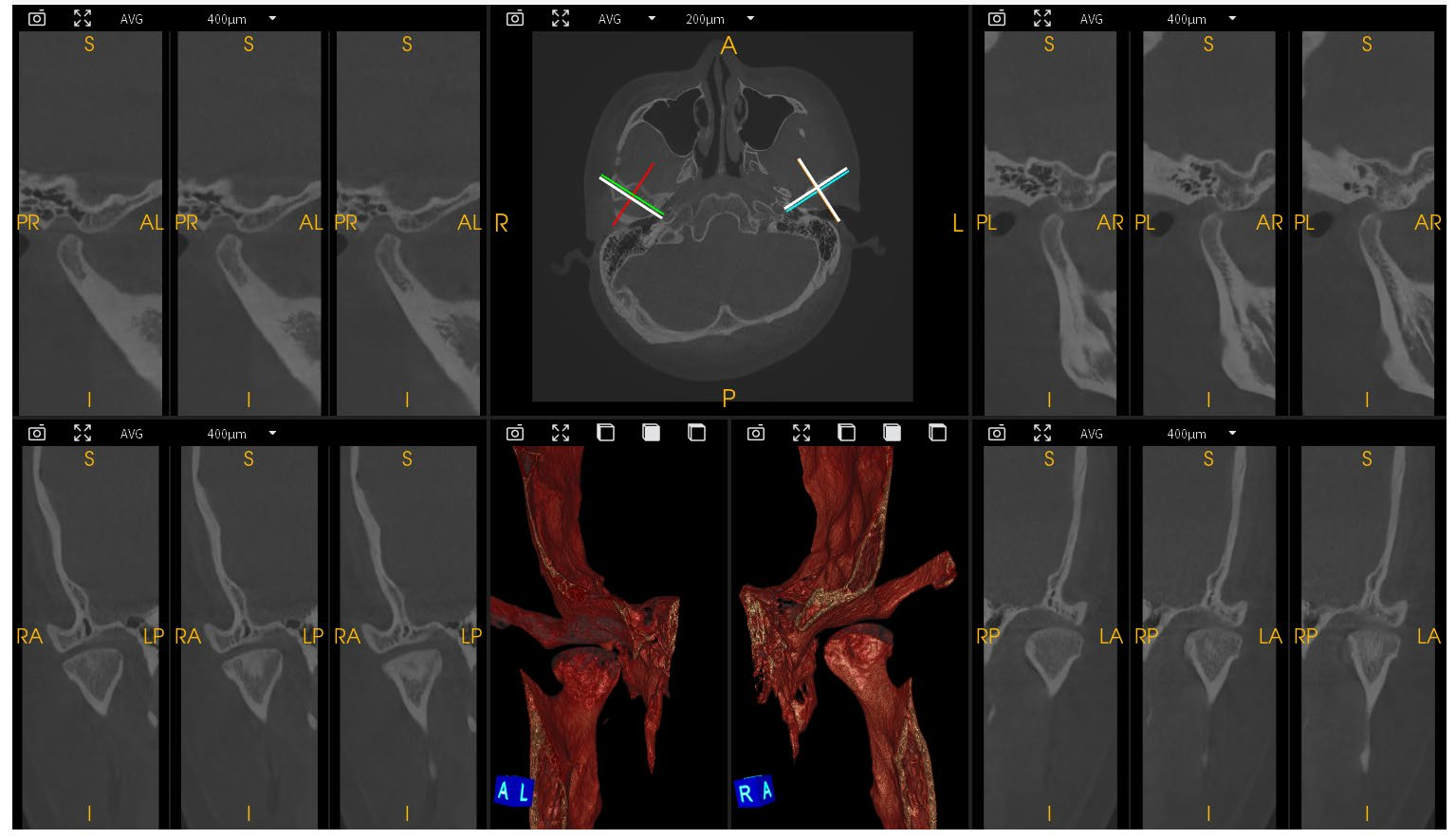

TMJ diagnostic mode for wear and displacement observation
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis
Surgical planning improves accuracy and reduces risks
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

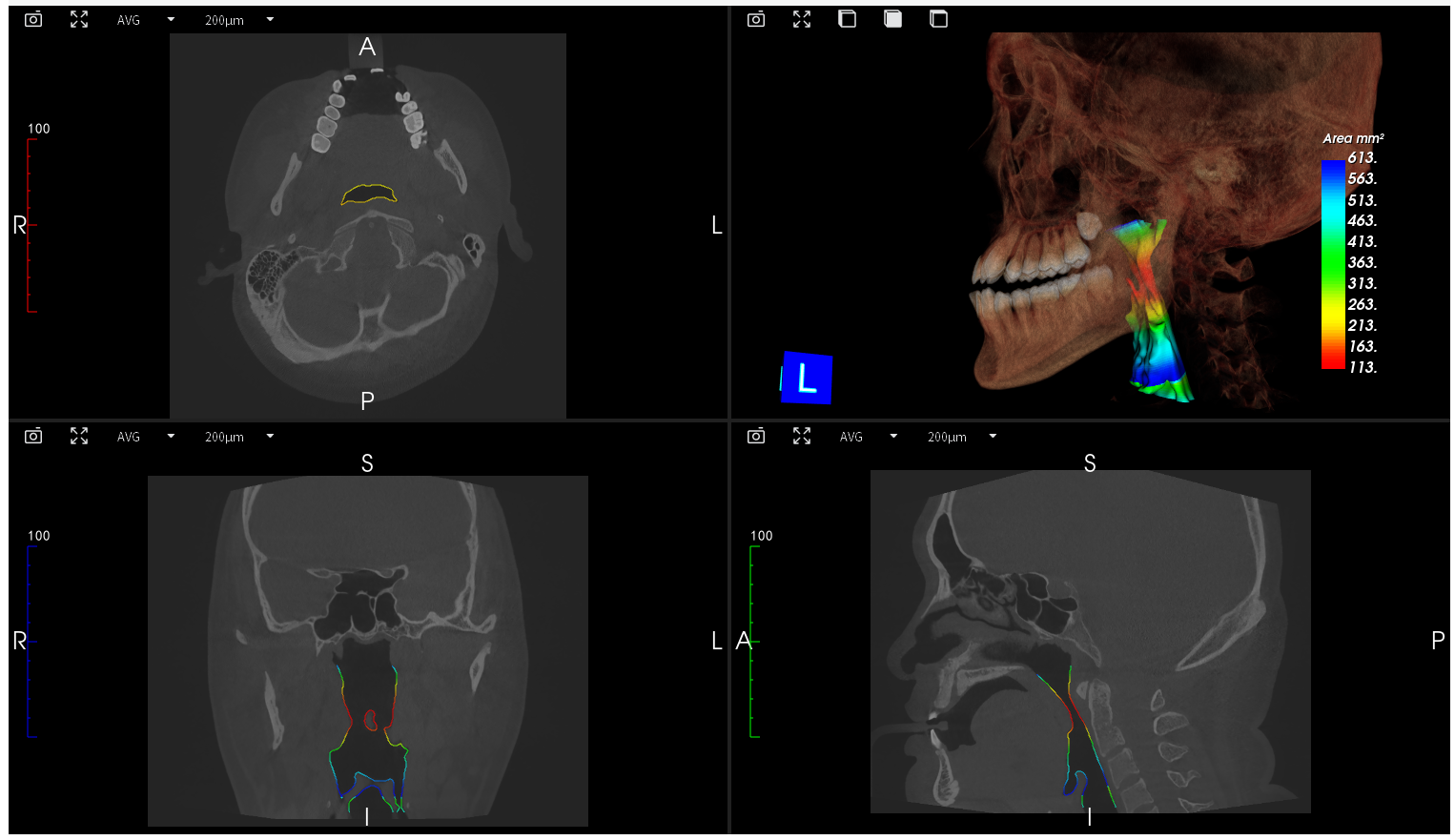

Orthodontic airway examination reduces treatment risks

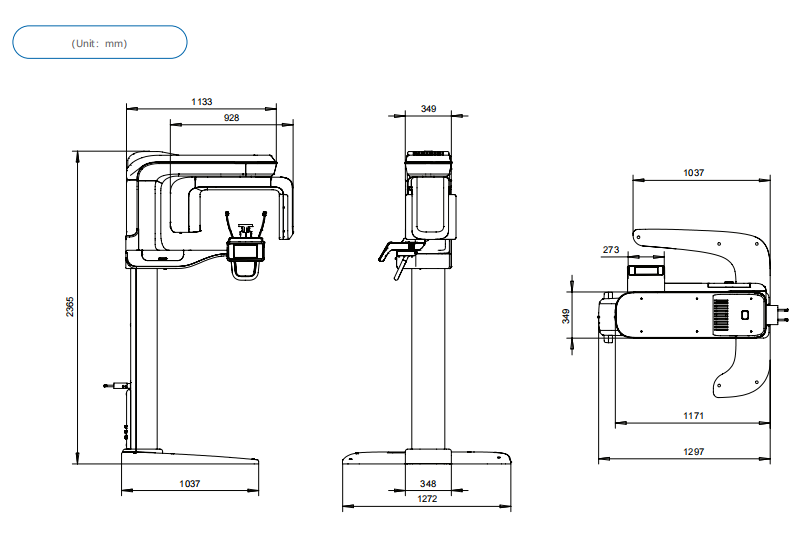

System Dimensions
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis
Technical Parameters
Overview
Detector Me2530X
Active area (mm²) 250*300
FOV (mm²) 150*120; 230*180; 80*80
AD Conversion (bit) 16
Pixel Pitch (μm) 100
Dimensions (mm³) 337*280*35
X-ray Tube
Focal spots (mm) 0.5
Anode Angle (°) 15
Anode Heat Capacity (kHU) 50
Maximum anode power (W) 275
Generator
Power (kW) 1.2
Electric source (V) AC220±10%
KVp range (KVp) 60-120
mA range (mA) 1-20
Frame
Column lifting stroke (mm) 800
X-axis motion range of U-type boom (mm) 0-70
Motion range of Y axis of U-type boom (mm) 0-70
Z-axis rotation range of U-type boom (°) 0-540
Frankfurt horizontal light moving range (mm) 60
Tray longitudinal movement range (mm) 60
System weight (kg) 196
System size (mm³) 1037*1297*2365
Image Quality Demonstrations
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

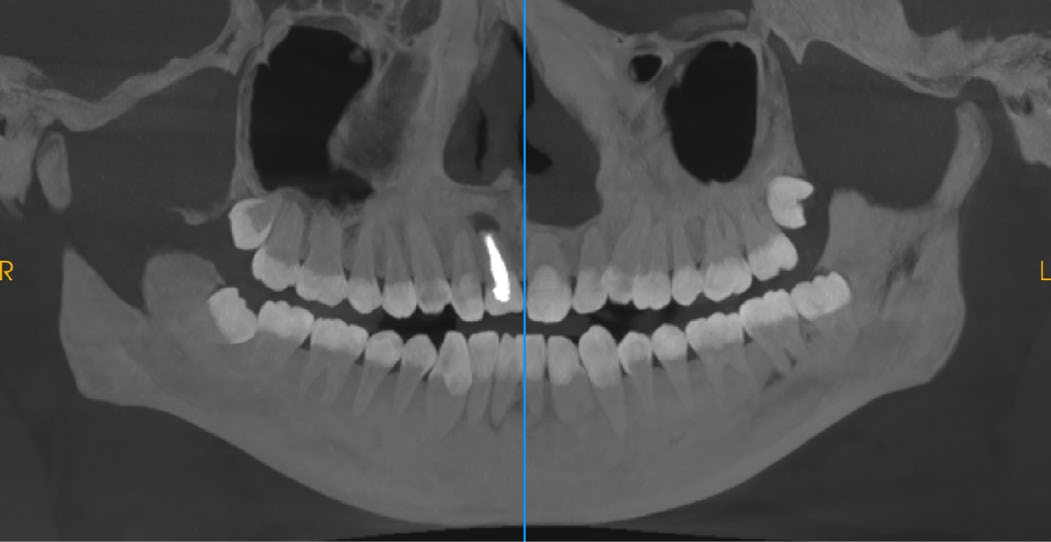

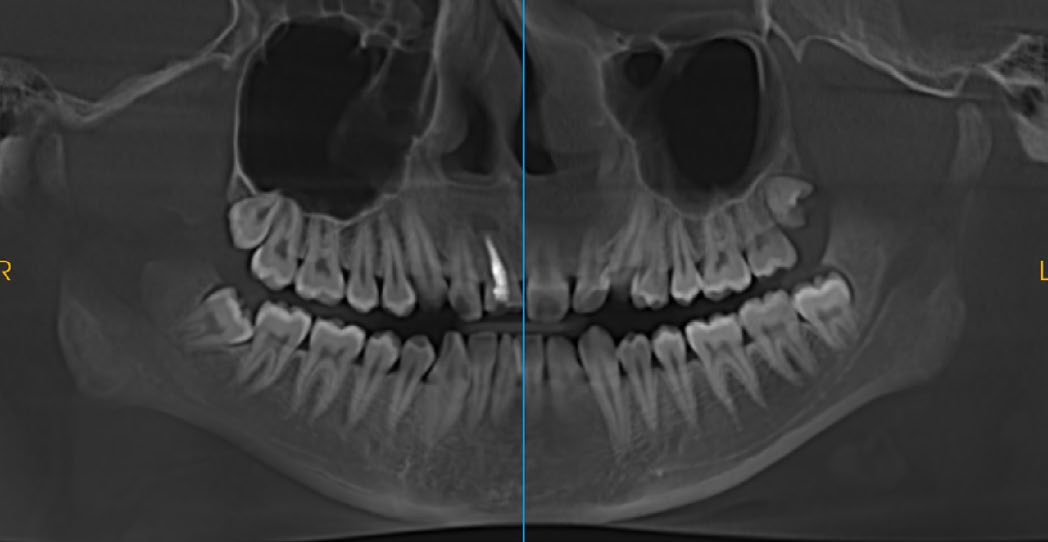

CT RECON PANO
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis
Dental Implant Orthodontic CBCT System High-Resolution 3D Imaging for Precise Diagnosis

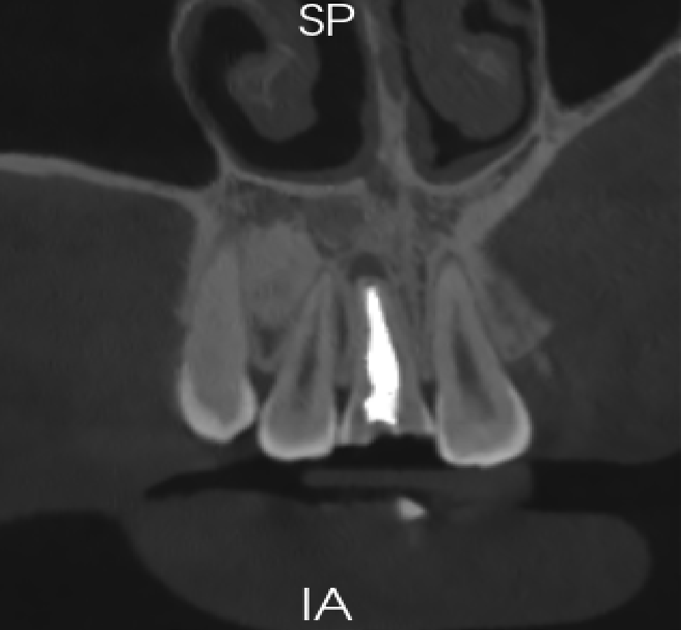

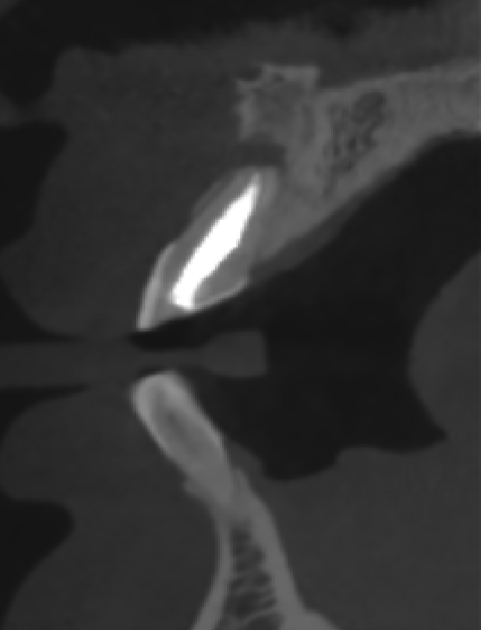

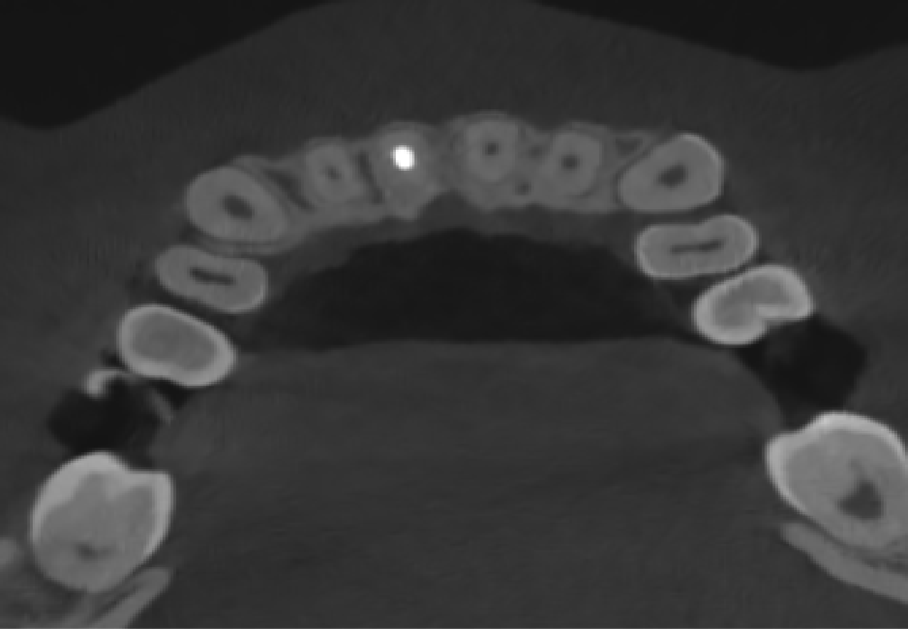

ENDO - Excellent image quality for detecting subtle lesions
