LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production
LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production
LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production
LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production
LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production
LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production
LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production
LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production
Specifications
Brand Name :
LeoTech
Model Number :
LMW-5
Certification :
CE
Place of Origin :
China
MOQ :
1
Delivery Time :
5-8 work days
Payment Terms :
T/T
Product Name :
LMW-5 Fully Functional 5-Axis Wet&Dry Milling Machine
Number of axes :
5
Millable material :
Zirconia/PMMA/Wax/Glass Ceramic/Ti/PEEK/Cocr
Processing method :
Dry/Wet Milling
Dimension :
685×770×1700mm
Weight :
390kgs
Automatic tool change quantity :
27
X,Y, Z axis :
305×165×115mm
A,B axis :
A：360° B:±30°
Power supply :
Single-phase AC 220V 50/60Hz voltage
Speed :
60,000 rpm
Description

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

Product Features
  • Renewal after power outage
  • Compatible with all mainstream Cam
  • High power spindle
  • Tool life monitoring
  • After-sales maintenance test board
Product Displays

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

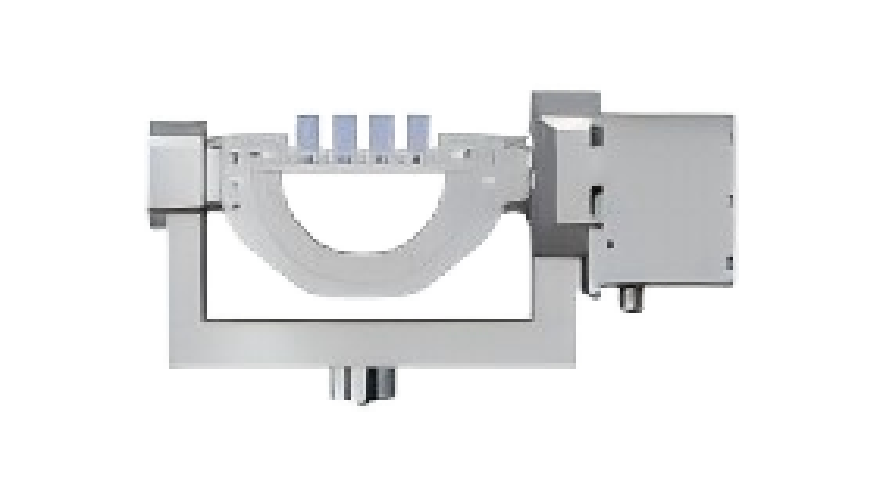

Half-open blankholder (C-CLAMP)

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

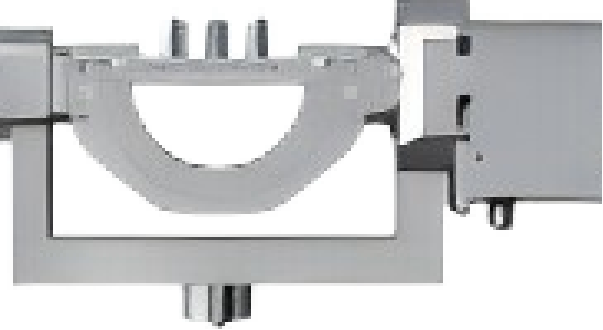

Titanium holder

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

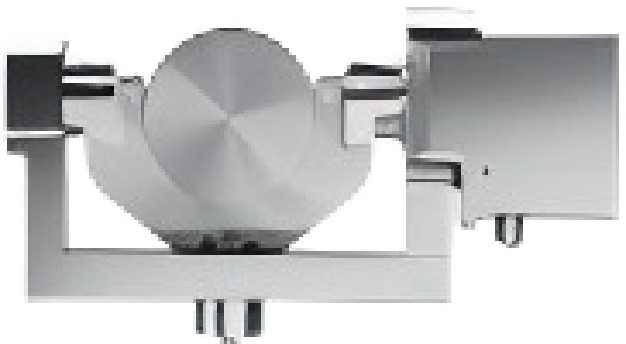

Glass ceramic holder

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

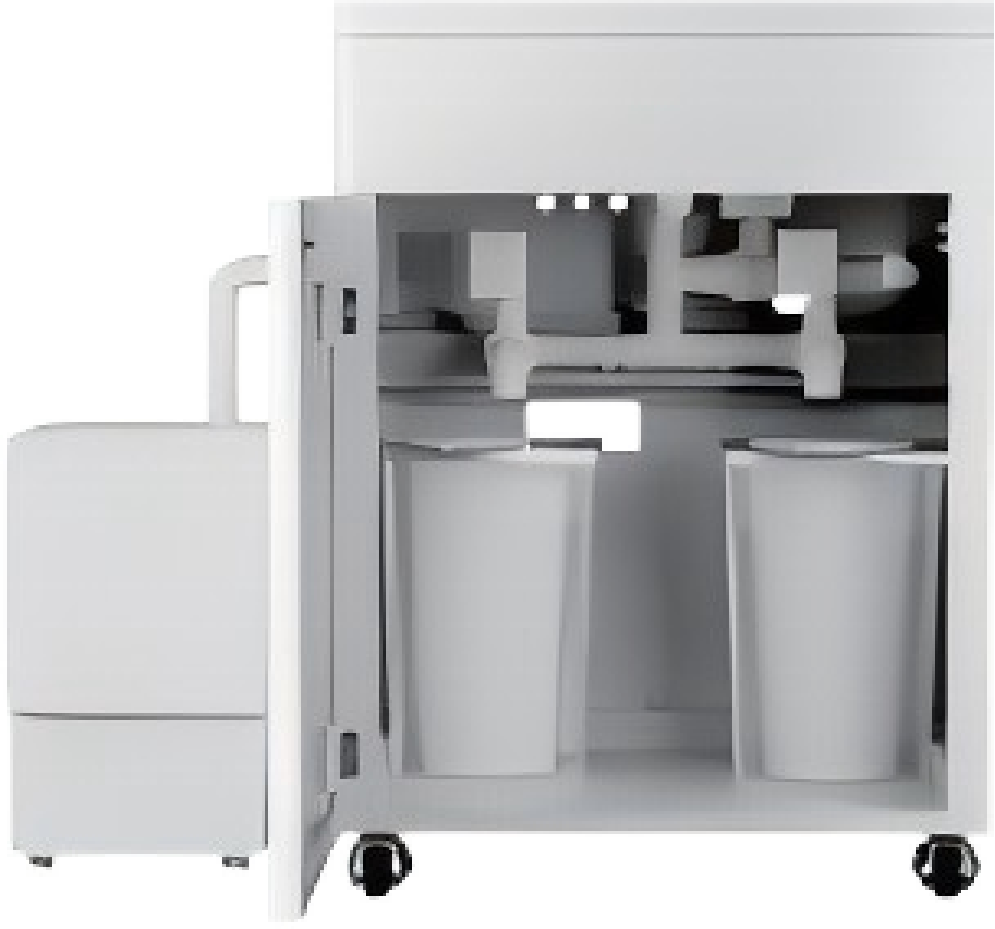

Dry&Wet Auto-Switching System

  1. Water chiller
  2. Milling fluid tan
  3. Wet & Dry convertible cleaning water tank
Details Displays

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

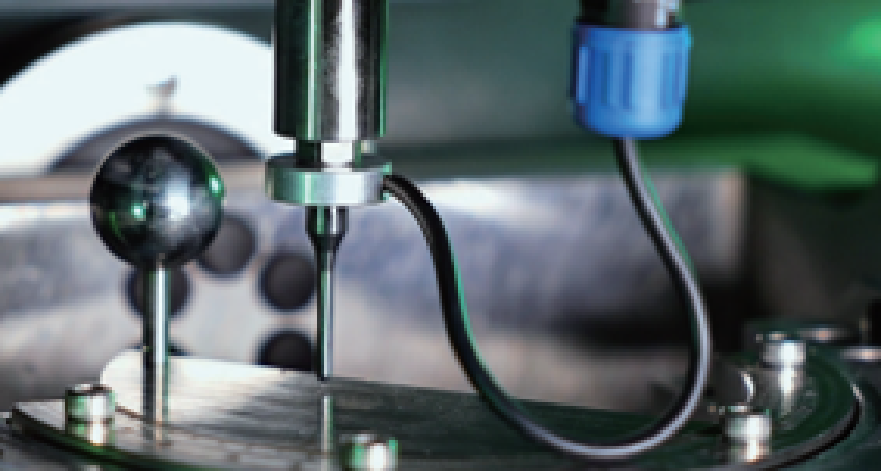

Industrial-grade automatic calibration (error±0.05mm)

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

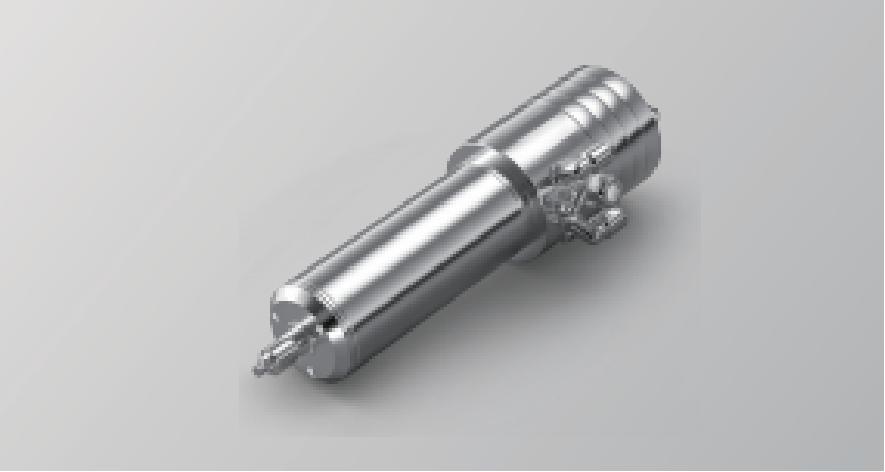

High Power Spindle

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

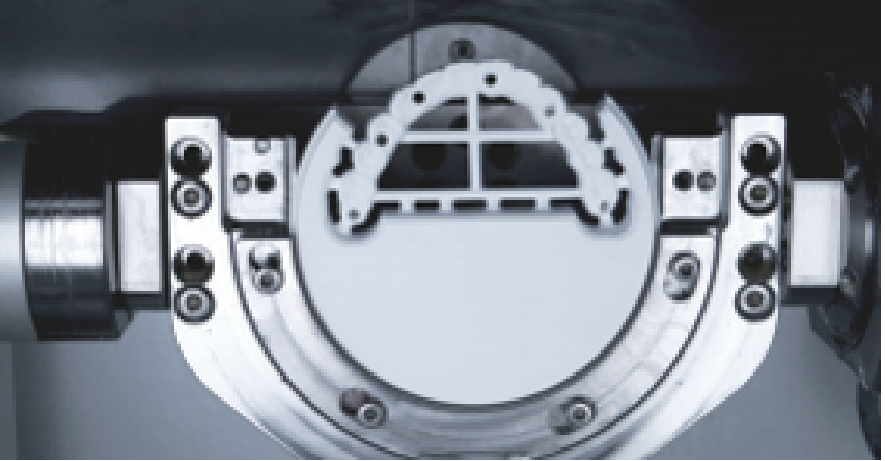

90 Degree Processing

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

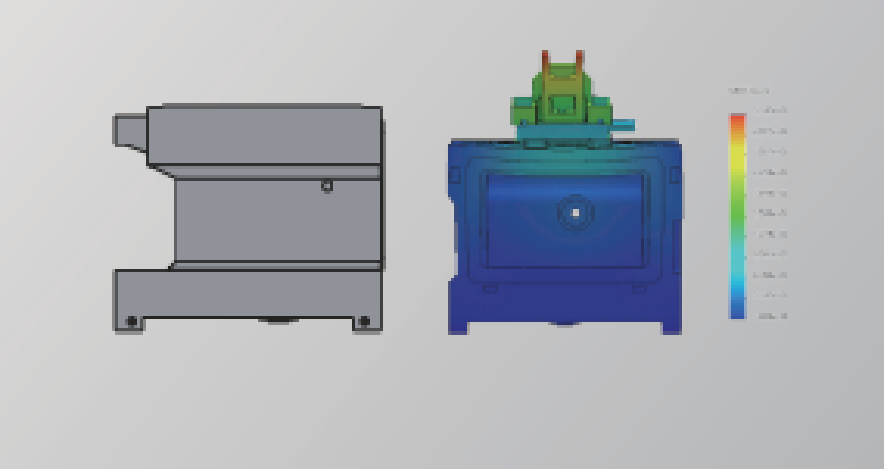

Integrated Inneral Casting Long-term Accurate and Stable

Structure Parameter
Number of axes 5
Millable material Zirconia/PMMA/Wax/Glass Ceramic/Ti/PEEK/Cocr
Processing method Dry/Wet Milling
Dimension 685*770*1700mm
Weight 390kgs
Automatic tool change quantity 27
Input
Power supply Single-phase AC 220V 50/60Hz voltage
Power 3.7KW
Air supply pressure 6Bar
Spindle
Power AC 2.5 KW
Cooling method Water cooling
Speed 60,000 rpm
Collet Φ6 mm
Route
X,Y,Z axis 305*165*115mm
A,B axis A:360°
B:±30°
