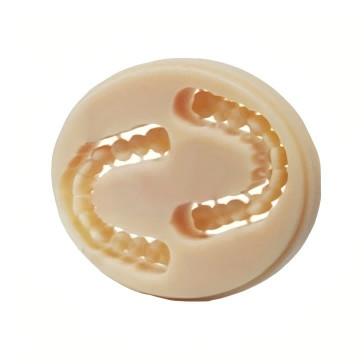

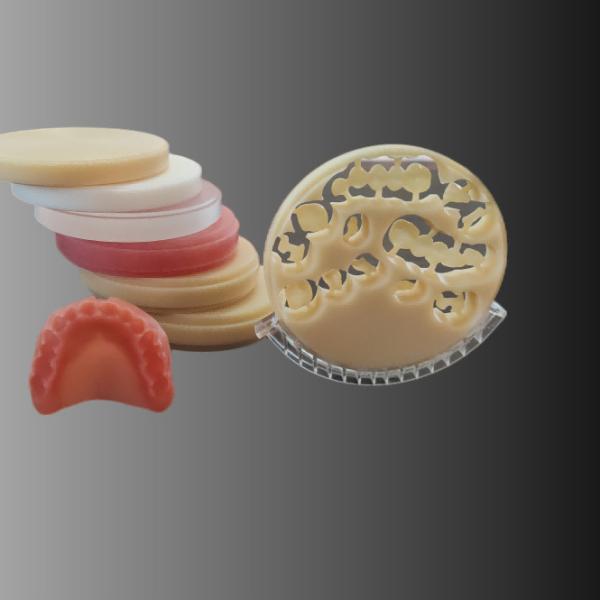

Millable Dental PEEK Discs, 4-5.6GPa Flexural Modulus, Natural/White/Red Options

Designed for permanent implant prosthetics, these medical-grade PEEK discs deliver bone-like elasticity (4-5.6GPa modulus) and >160MPa bending strength – enabling metal-free solutions for high-stress dental applications. The semi-crystalline thermoplastic retains dimensional integrity at 260°C, ensuring sub-50μm accuracy in CAD/CAM workflows.

Revolutionary Biomechanical Properties

• Cortical Bone-Matched Stiffness: 4.0-5.6GPa modulus eliminates stress shielding

• Fatigue Resistance: 160MPa+ flexural strength supports multi-unit bridges

• Bioinert Surface: ISO 10993-certified, inhibits bacterial colonization

• Radiolucency: Zero imaging artifacts in CT/MRI scans

  Clinical Advantages vs. Alternatives

  Property	PEEK Discs	Titanium Abutments	PMMA Temporaries
  Elastic Modulus (GPa)	4.0-5.6	110-120	2.0-3.0
  Density (g/cm³)	1.32-1.51	4.4-4.5	1.15-1.19
  Allergy Risk	None	>8% Nickel Sensitivity	<0.1%
  Aesthetic Adaptability	★★★★☆ (Tintable)	★☆☆☆☆	★★★★★

  Precision Milling Protocol

• Tool Selection

  • Diamond-coated carbide burs

  • Spindle speed: 18,000-25,000 RPM

• Workholding

  • Vacuum pressure ≥0.75 MPa

  • 3mm edge margin required

• Post-Processing

  • Sandblasting: 50μm alumina oxide

  • Staining: PEEK-specific dyes (80°C/10min)

Clinical Applications

► Healing Abutments
　- Osteoblast proliferation rate ↑37% vs. titanium
► Removable Partial Dentures
　- 60% lighter than cobalt-chrome frameworks
► Surgical Guides
　- Withstands 200+ autoclave cycles (134°C)
