LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
Specifications
Brand Name :
Leomed
Model Number :
LMD-5
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
13000 USD
Payment Terms :
T/T
Supply Ability :
10
Delivery Time :
7
Packaging Details :
Wooden Boxes
Input Power supply :
Single-phase AC 220V 50/60Hz
Power :
3.7KW
Air supply pressure :
6Bar
Spindle Power :
AC 2.5KW
Cooling method :
Water cooling
Speed :
60,000 rpm
Collet :
Φ 6mm
Route X,Y,Z axis :
160x115x105mm
A,B axis :
A:±360° B:+90°,-30°
Description

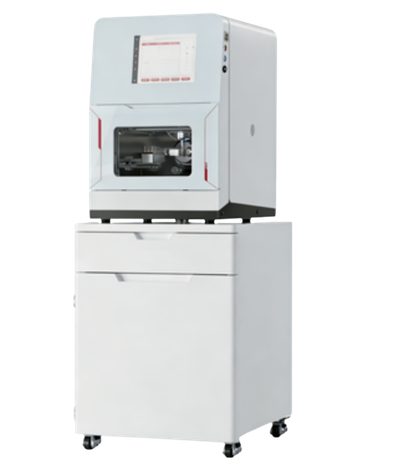

LMW-5 Wet & Dry Milling Machine

1.Core Functions

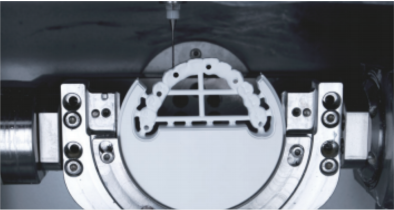

1.1 Machine Structure

LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment


Mineral cast integrated body combined with semi fixture design, delivering exceptional stability and shock resistance
for consistent high-precision machining,while enabling fast loading and precise positioning.

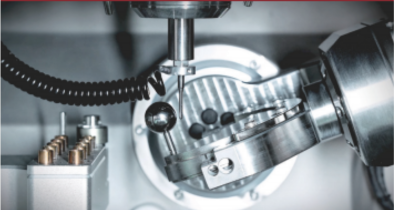

1.2 Cutting & Calibration System



LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment

- Dual cutting modes: Dry milling & wet milling supported (flexible adaptation to different material processing needs)
- 90-degree milling supported for complex dental prosthetics
- Industrial automatic calibration system with ±0.05 mm positioning accuracy
- High repeatability and long-term precision stability

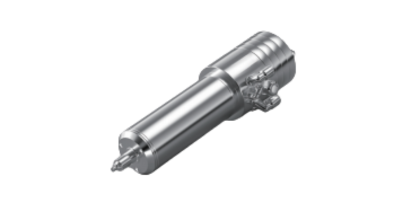

1.3 Spindle Performance



LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
- High-power dedicated spindle
- Water cooling system for sustained heavy-duty operation
- Max spindle speed: 60000 rpm
- High cutting efficiency, smooth surface finish, and extended service life

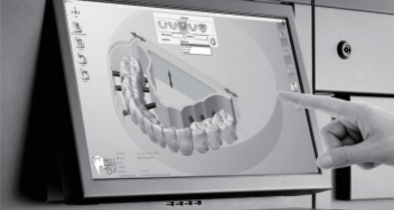

1.4 Intelligent Control Functions



LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
- Compatible with all mainstream CAM software
- Breakpoint resume function supported
- Tool magazine life monitoring & real-time wear alerts
- After-sales diagnostic board for fast troubleshooting and maintenance

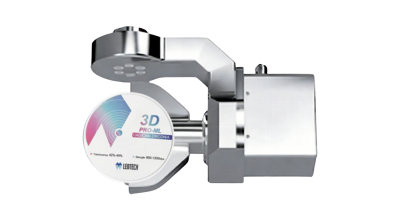

1.5 Fixture & Machining System



LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment

-Semi fixture design for fast loading and precise positioning

-5-axis configuration with defined rotary axis range (A ±360°, B +90° to -30°)

-DryWet Conversion System: Fully supported (switch freely between dry and wet milling modes)

-Working area: 160×115×105 mm

-Tool diameter compatibility: Ø6 mm

1.6 Dry & Wet Switching System

LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
-Manual switching between dry and wet milling modes, simple operation logic that aligns with professional processing habits, enabling targeted adaptation to different material characteristics.
-Matching Water Tank: Equipped with a dedicated water storage tank for wet cutting, featuring a sealed structure to prevent leakage and facilitate easy refilling and cleaning; ensures stable water supply during continuous wet milling operations.
-Professional Water Chiller: Configured with a matching water chiller to maintain constant cooling water temperature. It effectively reduces tool wear, improves machining precision, and ensures a smooth surface finish of workpieces, especially suitable for processing heat-sensitive materials.

2.Processing Compatible Plates

2.1 Processable Materials



LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
Ti Zirconia
LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
Pre-milled Blank Glass Ceramic


Smooth milling, minimal chipping, and ideal for dental prosthetic manufacturing.

2.2 Holder Specifications

Number of axes
5
Millable material
Zirconia/PMMA/Wax/Glass ceramic/Titanium disc/Titanium abutment
Processing method Dry & Wet Milling
Dimension 525×700×784 mm
Weight 150 kg
Automatic tool change quantity 18 tools

Support & Services

1. Application Scenarios

Digital dental laboratories, centralized prosthetic milling centers, dental clinic manufacturing hubs, and industrial precision milling workshops requiring multi-material processing.

2. Recommended Compatible Zirconia

Leomed 3D pro ML zirconia blocks optimized for this milling machine – improved machining stability, higher success rate, and consistent final quality.

3. Certifications

CE, ISO and other applicable industry certifications.


LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
