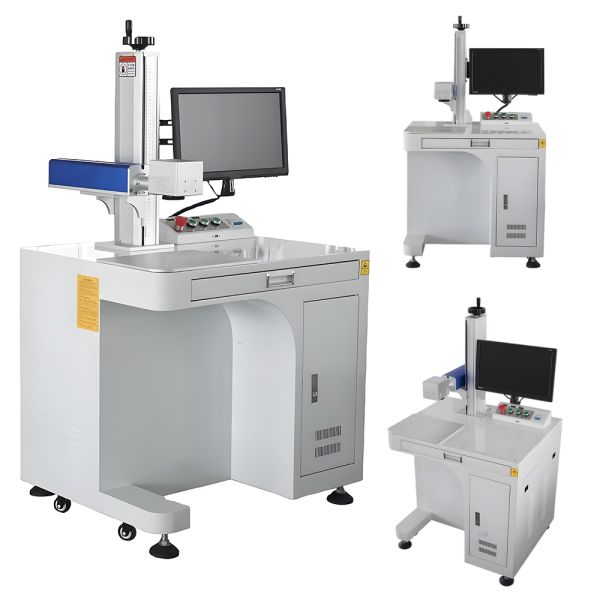

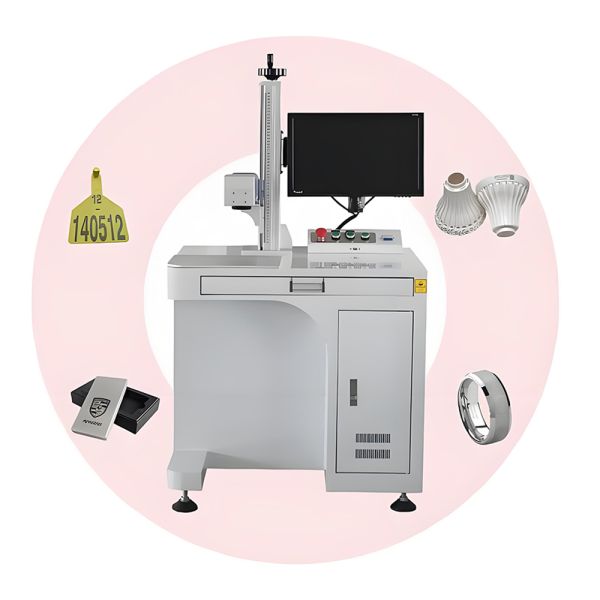

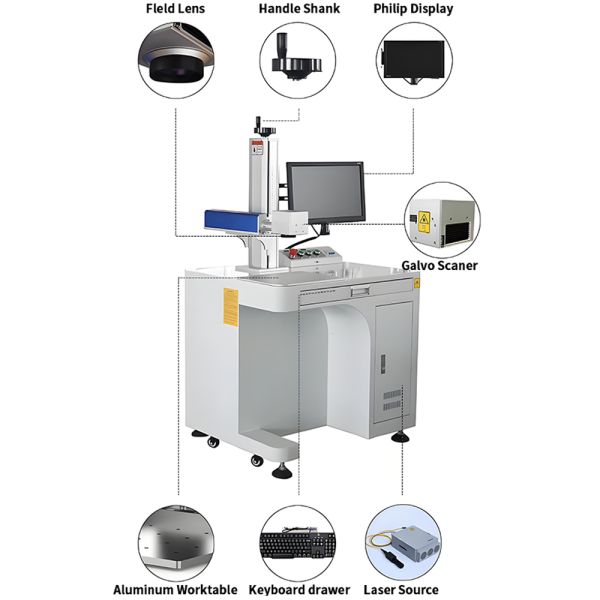

20W/30W CO2 Desktop Fiber Laser Tube for Aluminium Metal Stainless Steel Laser Marking Machine Supports AI DXF PLT BMP Formats
20W/30W CO2 Desktop Fiber Laser Tube for Aluminium Metal Stainless Steel Laser Marking Machine Supports AI DXF PLT BMP Formats
20W/30W CO2 Desktop Fiber Laser Tube for Aluminium Metal Stainless Steel Laser Marking Machine Supports AI DXF PLT BMP Formats
20W/30W CO2 Desktop Fiber Laser Tube for Aluminium Metal Stainless Steel Laser Marking Machine Supports AI DXF PLT BMP Formats
20W/30W CO2 Desktop Fiber Laser Tube for Aluminium Metal Stainless Steel Laser Marking Machine Supports AI DXF PLT BMP Formats
20W/30W CO2 Desktop Fiber Laser Tube for Aluminium Metal Stainless Steel Laser Marking Machine Supports AI DXF PLT BMP Formats
20W/30W CO2 Desktop Fiber Laser Tube for Aluminium Metal Stainless Steel Laser Marking Machine Supports AI DXF PLT BMP Formats
20W/30W CO2 Desktop Fiber Laser Tube for Aluminium Metal Stainless Steel Laser Marking Machine Supports AI DXF PLT BMP Formats
20W/30W CO2 Desktop Fiber Laser Tube for Aluminium Metal Stainless Steel Laser Marking Machine Supports AI DXF PLT BMP Formats
20W/30W CO2 Desktop Fiber Laser Tube for Aluminium Metal Stainless Steel Laser Marking Machine Supports AI DXF PLT BMP Formats
20W/30W CO2 Desktop Fiber Laser Tube for Aluminium Metal Stainless Steel Laser Marking Machine Supports AI DXF PLT BMP Formats
20W/30W CO2 Desktop Fiber Laser Tube for Aluminium Metal Stainless Steel Laser Marking Machine Supports AI DXF PLT BMP Formats
Specifications
laser type :
CO2, Fiber Laser
working accuracy :
0.025mm
Brand Name :
HM
Place of Origin :
Hubei, China
cnc or not :
Yes
condition :
New
configuration :
Bench-Top
control software :
EZCAD
control system brand :
EZCAD
Cooling System :
Air Cooling
feature :
Programmable
graphic format supported :
AI, PLT, DXF, BMP
key selling points :
High Rigidity
mode of operation :
Pulsed
warranty :
1 Year
Weight :
130
Product name :
CO2 laser marking machine
Max marking size :
110*110/150*150/200*200/300*300mm
Model name :
SCM20/SCM30/SCM50/SCM100
Laser Power :
20/30/50W
Laser mode :
Raycus CO2 Laser Source
Laser Accuracy :
0.025mm
Marking speed :
3000mm/s
MOQ :
1
Price :
$1,800-2,000
Description
Type
SCM20/30/50/60
Laser Mode
Raycus Fiber Laser Source
Wavelength
1064nm
Laser Power
20W/30W/60W
Frequency
20kHz~100kHz
Cooling Way
Forced-air Cooling
Marking Speed
≤3000mm/s
Power Stability
≤0.5%
Laser Accuracy
0.025mm
Software
Copyright EzCad
File Formats
PLT, PCX, DXP, BMP, JPG etc
Working Area
110×110mm~200×200mm
Indicating Beam
Double Red Light Indication
Power Supply
220V/50Hz/2kVA (Customized)
Output Compatibility
AutoCAD, CorelDRAW, Photoshop etc

FAQ:
Q: How to choose suitable model?
A: Please provide a photo of the product you used before or advise us your needs, we will give suggestions.
Q: What's your MOQ?
A:Normally one piece. If more, we can talk about discount. We can ship all parts you ordered together.
Q: Can I get discount?
A: The more you order, the more discount you will get.
Q: What is your terms of payment?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, balance before shipment.
Q: How long is your delivery time?
A: When the order is confirmed, 3-5 working days for the small order, 2-6 weeks for the bulk depending on the quantity and product type.
