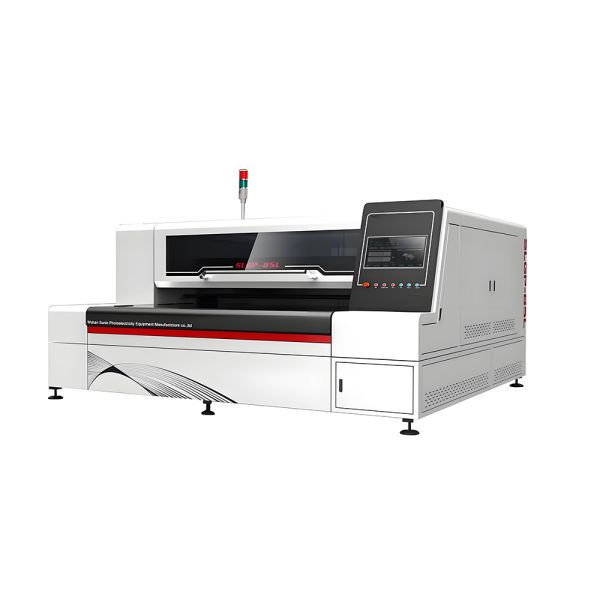

LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
Specifications
laser type :
CO2
working accuracy :
0.05mm
Brand Name :
ARGUS
Place of Origin :
Hubei, China
cnc or not :
Yes
condition :
New
configuration :
Bench-Top
control software :
sunic software
control system brand :
FANUC
Cooling System :
Water Cooling
feature :
Programmable
graphic format supported :
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
key selling points :
High-Accuracy
mode of operation :
Continuous Wave
warranty :
1 Year
Weight :
1600
Max.Marking Area :
1200x1900mm
After-sales Service Provided :
Engineers available to service machinery overseas
Marking Speed :
≤4500mm/s
Laser Source :
Coherent CO2 metal RF Laser Tube
Power Consumption :
≤ 7 kWh
Worktable :
Synchronous transmission aluminum worktable
Laser Wavelength :
10.64μm
Laser Frequency :
20kHz~200kHz
File Formats :
PLT, DXP, BMP, JPG, AI etc
Certification :
ce/ISO
MOQ :
1
Price :
$82,000-88,000
Description
Model
SCM1015/SCM1219/SCM1325
Max working Area
1000*1500mm/1200*1900mm/1300*2500mm(optional)
Laser Output Power
240~250W(Coherent J2)
Marking Speed
≤4500mm/s
Power Consumption
≤5kWh
Laser Source
Coherent CO2 Metal RF Laser Tube
Scanner
3D Dynamic Focusing Scanner
Linear Motor
HIWIN,Made in Taiwan
Optical Lens
II-VI,Singapore
Software
Sunic LGP Dotting Software
Laser Pulse Frequency
≤100KHz
Linear Guide Rail
THK Made in Japan
File Formats
PLT, DXP, BMP, JPG, AI etc
Note
1. Electricity 380V/60Hz/3 Phase/4 Wires
2. 0.6MPa Compressed Air Line
3. Distilled Water (from the bottle ) to be used the supplied chiller.

LGP Laser Dotting Machine
Screen Printing
Reflection Unit
Bump point
Plane bump
Reflective Medium
Vaporized on PMMA
Printing ink on PMMA
UV Protection/Strength
Yes / Strong
No / Weak
Surface Illumination
20% higher than printing
——
Evenness
More than 90%
About 75%
Light Transmittance
More than 95%
About 85%
Yellowing Rate
No yellowing
More than 5%
Dot Precision
0.2-0.6mm
1-2mm
Life Span
5-8 Years
2-3 Years (Ink deteriorates due to moisture)
Quality
Never fade
Gradually fade
Environmental Friendly
No pollution
Ink is easy to fall off
Shape
Can be cut to any shape
Fixed shape

FAQ:
Q: How to choose suitable model?
A: Please provide a photo of the product you used before or advise us your needs, we will give suggestions.
Q: What's your MOQ?
A:Normally one piece. If more, we can talk about discount. We can ship all parts you ordered together.
Q: Can I get discount?
A: The more you order, the more discount you will get.
Q: What is your terms of payment?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, balance before shipment.
Q: How long is your delivery time?
A: When the order is confirmed, 3-5 working days for the small order, 2-6 weeks for the bulk depending on the quantity and product type.
