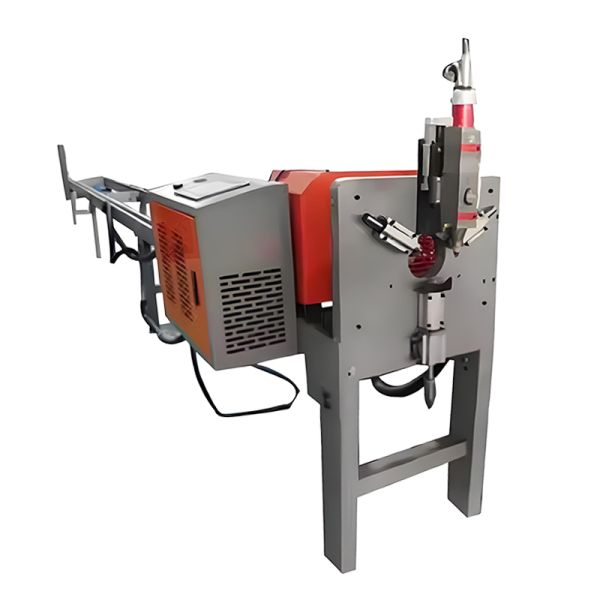

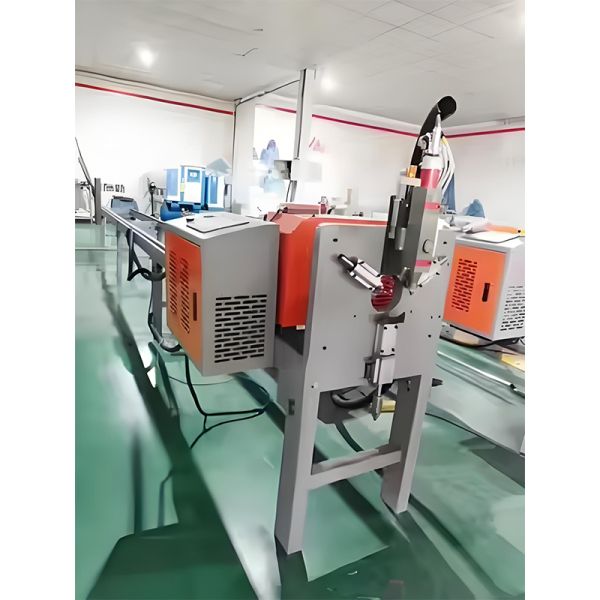

Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine
Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine
Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine
Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine
Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine
Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine
Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine
Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine
Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine
Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine
Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine
Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine
Specifications
Applicable Material :
Metal
laser type :
Fiber Laser, Other
Brand Name :
hm
Place of Origin :
Hubei, China
cnc or not :
Yes
condition :
New
configuration :
Bench-Top
Control Software :
PLC
control system brand :
Other
cooling mode :
Water Cooling
Cutting Speed :
0-10000mm/min
cutting thickness :
3mm
Feature :
Water-Cooled
graphic format supported :
AI, PLT, DXF, BMP, LAS
guiderail brand :
Other
Key Selling Points :
Automatic
laser head brand :
Other
Laser Power :
1000 W
mode of operation :
Pulsed
optical lens brand :
Other
products handled :
Tube
servo motor brand :
Other
warranty :
2 Years
Weight :
300
MOQ :
1
Price :
$3,000
Description
Specification
Model
SL-108R
SL-108S
The material fit to cut
Carbon steel, stainless steel, galvanized pipe
Cut capacity
Round:19-108mm
Round:19-108mm
Square:19x19-60x60mm
Rectangle: 80*40mm
Cutting stroke
6000mm
Function
Cut off, cut hole, cut notching
Measure
6750*550*750mm(Subject to the actual object)
Weight
300KG (Subject to the actual object)
Power
220V(Control part)
Output voltage
24V
Transmission mode
rack gear
Control mode
PLC control touch screen
Laser generator
Kipling/Hot Spur (Generator warranty two years, human damage is not covered by the warranty.) Warm tips: temperatures below 0
degrees need to add antifreeze, due to failure to add antifreeze or antifreeze problems caused by unqualified damage is not
covered by the warranty.
Laser head
Gangchun (can be customized)
Water Cooler
Turbo/Huako
Air supply
Air (≥1.5MPa,need to prepare their own air compressor and dryer)
Chuck specification
Within φ108mm
Processing
Manual loading - manual fixing - automatic rotation - automatic cutting - discharging
Main component Settings and parameters
Electric control unit
CHINT
Rack length
6000mm
Operating system
Self-developed control system software
Four jaw chuck
Manual
Auxiliary support system
Pneumatic auxiliary support

FAQ:
Q: How to choose suitable model?
A: Please provide a photo of the product you used before or advise us your needs, we will give suggestions.
Q: What's your MOQ?
A:Normally one piece. If more, we can talk about discount. We can ship all parts you ordered together.
Q: Can I get discount?
A: The more you order, the more discount you will get.
Q: What is your terms of payment?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, balance before shipment.
Q: How long is your delivery time?
A: When the order is confirmed, 3-5 working days for the small order, 2-6 weeks for the bulk depending on the quantity and product type.
